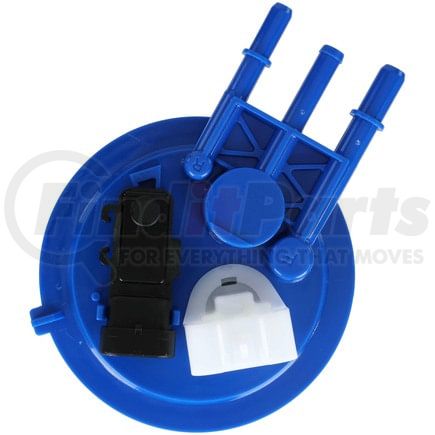

(888) 312-8812 Login SignupDELPHI FG0086 Fuel Pump Module Assembly
MSRP: $489.83
$26799
Save $221.84
Limited availability at this price!
In Stock
Get it by Monday, Feb 9
DELPHI FG0086 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0086 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| System Pressure | 62 psi |
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | Yes |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 40 82 |
| Resistance Ohms Full | 250 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 32 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 62 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604060230 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0086 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU146, MU147, MU1745 |
| AUTOBEST | HP2958A, F2958A |
| Airtex | E3947M |
| AutoZone | EFG0086 |
| Bosch | 67381 |
| CARTER FUEL PUMPS | P74757M |
| Carquest | M319676 |
| Carter | P74757M, P75055M |
| DENSO | 953-0009 |
| DENSO Auto Parts | 953-0009, 953-5043 |
| Dorman | 2630318 |
| EVO Driveline | AFS0523S, RE0523S |
| FACET FUEL PUMPS | FEP3947M |
| GMB | 530-2210 |
| General Motors | 19177226, 25314321, 25314323, 19331272, 19369943 |
| Magneti Marelli | 1AMFP00041 |
| MasterPro Fuel Pumps | MPA27001 |
| N/A | 9535043, P74898M, E3962M, EFP846M, E3947M, P461M, P7001M, USEP3947M, F2958A, 402-P3947M, C0349M, 4010126 |
| Precision Fuel | A27001, A30027, A30216 |
| Spectra Premium | SP461M, SP3957M |
| TYC | 150011-A |
| TruGrade | D5341005 |
| URO | GM0517238 |
DELPHI FG0086 Fits Vehicles
- GMC C3500HD (1998-2000)
- Chevrolet C3500HD (1998-2000)
- GMC K3500 (1998-2000)
- GMC K2500 (1998-2000)
- GMC K1500 (1997-1999)
- GMC C3500 (1998-2000)
- GMC C2500 (1998-2000)
- GMC C1500 (1997-1999)
- Chevrolet K3500 (1998-2000)
- Chevrolet K2500 (1998-2000)
- Chevrolet K1500 (1997-1999)
- Chevrolet C3500 (1998-2000)
- Chevrolet C2500 (1998-2000)
- Chevrolet C1500 (1997-1999)
