(888) 312-8812 Login SignupDELPHI FG0069 Fuel Pump Module Assembly
MSRP: $517.28
$33299
Save $184.29
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI FG0069 Part Description
Manufacturer
Product Description

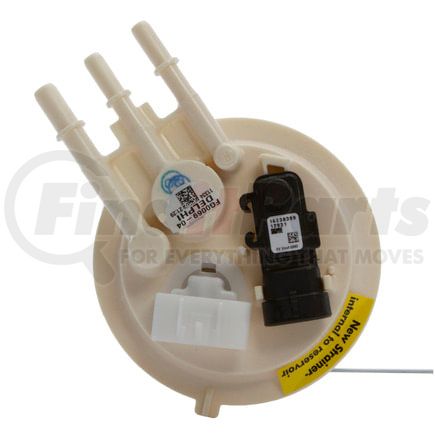

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0069 Specifications
Product Attributes
| Vapor Pressure Sensor | Yes |
| System Pressure | 51 psi |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet |
| Item Grade | Standard Replacement |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 40 82 |
| Resistance Ohms Full | 250 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 7 68 |
| Average Flow Rating | 18 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 51 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604060063 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0069 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU110, MU1756 |
| AUTOBEST | F2954A |
| Airtex | E3943M |
| AutoZone | EFG0069 |
| Bosch | 67349 |
| CARTER FUEL PUMPS | P74755M |
| Carquest | M319674 |
| Carter | P74755M |
| DENSO | 953-0010 |
| DENSO Auto Parts | 953-0010, 953-5034 |
| Dorman | 2630316 |
| EVO Driveline | AFS0429S, RE0429S |
| GMB | 530-2200 |
| General Motors | 19177259, 25175791, 25178729, 19331270, 19369940 |
| Import Direct | A30038 |
| Isuzu | 8-19177-259-0, 8-25175-791-0, 8-25178-729-0 |
| Magneti Marelli | 1AMFP00073 |
| MasterPro Fuel Pumps | MPA30027, MPA30038 |
| N/A | 8191772590, 8251757910, 8251787290, EFP917M, E3943M, P443M, USEP3943M, F2945A, 402-P3943M, C0346M, 4010125 |
| Precision Fuel | A30027, A30038 |
| Spectra Premium | SP443M |
| TYC | 150010-A |
| TYC Cooling - Archived | 150010 |
| TruGrade | D5331019 |
| URO | GM0517237 |
DELPHI FG0069 Fits Vehicles
- GMC Sonoma (1997-2000)
- GMC S15 (1990)
- Chevrolet S10 (1990-1993, 1997-2000)
- Isuzu Hombre (1997-2000)
