(888) 312-8812 Login SignupDELPHI FE0245 Electric Fuel Pump
$12149
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Jun 29
DELPHI FE0245 Part Description
Manufacturer
Product Description

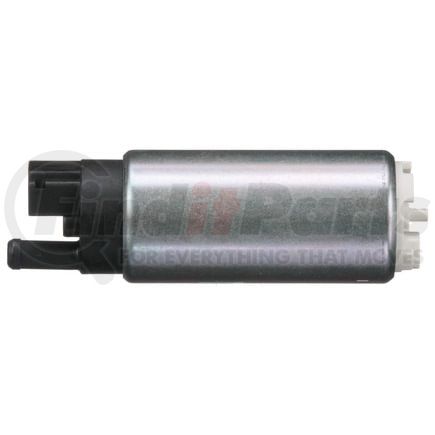

Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0245 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Electric Fuel Pump, (2) Hose Clamps, Hose Piece, Isolator, Pall Nut, Seal, (2) Splices, 2-Wire Harness w/Connector, Instruction Sheet |
| System Pressure | 51 psi |
| Position(s) | In-Tank |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 11.0 MM |
| Outlet Outside Diameter | 9.5 MM |
| Outlet Outside Diameter | 0.375 IN |
| Length | 123.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 80.0 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | Yes |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 8.0 68 |
| Average Flow Rating | 21.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Minimum Pressure | 51 PS |
| Maximum Amperage Draw | 8.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604035139 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0245 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP2065H |
| AUTOBEST | F1344 |
| Airtex | E2068, E2190S, E2226, E2266S, E2333, E2377, E2379, E2490, E2332S |
| AutoZone | CFE0245 |
| BorgWarner | P435H |
| Bosch | 67095, 67098, 67155, 66085, 69128 |
| Carter | P74178, P74189, P74191, P74744M, P74805S, P76026M, P76056M, P76546H, P88004 |
| DENSO Auto Parts | 950-0171, 951-0008, 953-4092 |
| DORMAN | 692-225 |
| EVO Driveline | AFS0029P, RE0029P, RE0840S, RE0859S, AFS0840S |
| Ford | 1L2U 9H307-MB, 1L2Z 9H307-MB, 2L2Z 9H307-HC, 2L2Z 9H307-HD, F57U 9H307-DC, F57Z 9H307-D, F57Z 9H307-DA, F77U 9H307-BE, F77Z 9H307-BA, F7PU 9H307-BD, F7PU 9H307-CB, F7PU 9H307-CC, F7PZ 9H307-BA, F7PZ 9H307-BD, F7PZ 9H307-CA, F7PZ 9H307-CC, F7PZ 9H307-CD, F87U 9H307-JC, F87Z 9H307-JA, F8PZ 9H307-AA |
| GMB | 525-1340 |
| Kem | EFP720 |
| Magneti Marelli | 1AMFP00022 |
| Master Parts Division | E2068, E2226 |
| Motorcraft | PFB-67, PFS-1016, PFS-434, PFS-437, PFS-58 |
| N/A | 9510008, 9534092, 1L2U9H307MB, 1L2Z9H307MB, 2L2Z9H307HC, F57U9H307DC, F57Z9H307D, F57Z9H307DA, F57Z9H307J, F57Z9H307JA, F77U9H307BE, F77Z9H307BA, F7PU9H307BD, F7PU9H307CB, F7PU9H307CC, F7PZ9H307BA, F7PZ9H307BD, F7PZ9H307BE, F7PZ9H307CA, F7PZ9H307CC, F87U9H307JC, F87Z9H307JA, PFB67, PFS434, PFS58, USEP2333, F1344, B0033E, E16303, 4020304 |
| Niehoff | P435H |
| Precision Fuel | A30143 |
| Spectra Premium | SP1113, SP1343, SP2332H |
| VEMO | V99090002 |
| Walbro | GCA720 |
DELPHI FE0245 Fits Vehicles
- Ford Explorer Sport (2001-2002)
- Ford Explorer Sport Trac (2001-2002)
