DELPHI FE0150 Part Description
Manufacturer
Product Description

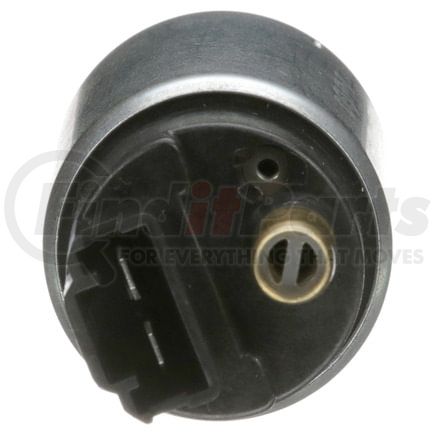

Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0150 Specifications
Product Attributes
| Position(s) | In-Tank |
| Item Grade | Standard Replacement |
| Package Contents | Electric Fuel Pump, (2) Hose Clamps, Hose Piece, Isolator, Pall Nut, Seal, Instruction Sheet |
| System Pressure | 43 psi |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 11.0 MM |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 113.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 94.0 PS |
| Terminal Type | Pin |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose Bead |
| Outlet Quantity | 1 |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 6.0 68 |
| Average Flow Rating | 26.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Minimum Pressure | 43 PS |
| Maximum Amperage Draw | 6.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Country of Origin (Primary) | TH |
| UPC | 00689604034187 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0150 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP1005, EP1006, EP2074, EP2084, EP389, EP432, EP458, EP471, EP487, 91177339, EP457, MU1373 |
| AUTOBEST | F1482, HP4230, HP1482, F4230 |
| Airtex | E3975H, E7067S, E8191S, E8229, E8335, E2471, E2518, E3520S, E7081H, E7167M, E8234M, E8275H, E8338H, E8339H, E8353H, E8355S, E8378S, E8396S, E8398H, E8401H, E8441S, E8454, E8460S, E8532, E8596M, E8596MN, E8994M |
| Auto-Tune | P142E, P165E, P167E, P476E, P496E, P95149E, P95186E, P95203E |
| AutoZone | CFE0150 |
| Autopart International | 60017, 60065, 60138, 60144, 60163, 60225, 60260, 60266, 60270 |
| BMW | 16 14 1 180 318, 16 14 7 161 387 |
| Beck/Arnley | 152-0830, 152-0884, 152-0891, 152-0899, 152-0900, 152-0901, 152-0903, 152-0904, 152-0908, 152-0909, 152-0920, 152-0926, 152-0927, 152-0941, 152-0956, 152-0958, 152-0959, 152-0960, 152-0974, 152-0975, 152-0982, 152-0994 |
| BorgWarner | P142E, P157E, P158E, P162E, P165E, P166E, P167E, P194E, P278E, P296H, P324H, P342E, P345H, P347H, P458H, P476E, P477E, P478H, P479H, P487H, P492H, P496E, P505H, P518H, P520H, P521H, P522H, P524H, P95136E, P95149E, P95186E, P95203E |
| Bosch | 67412, 67430, 67437, 67440, 67816, 67871, 67921, 67922, 67929, 67936, 67963, 67965, 67978, 67981, 67990, 67996, 69717, 66092, 67635, 67676, 67837, 67841, 67844, 67903, 67917, 67944, 67992, 67995, 69132, 69407, 69496, 69544, 69546, 69560, 69613, 69644, 69709, 69747, 69900, 69915 |
| CARTER FUEL PUMPS | P72192, P72193, P76361H |
| Carquest | E295017 |
| Carter | P72115, P72192, P72193, P72203, P72232, P72233, P72235, P72236, P72237, P72239, P72241, P72242, P72243, P74180HP, P76001, P76002, P76017, P76020, P76034, P76047M, P76137, P76149M, P76176, P76213, P76214, P72118, P72240, P76015, P76027, P76038, P76249, P76529M, P76550M, P76553M, P76562M, P88009, P90003, P90008, P90029 |
| Chrysler | MB698857, MB831262, MB831263, MB831264, MB831560, MB831561, MB959847, MR124999, MR134804, MR134868, MR241080, MR508115, RL093455AD |
| DENSO | 951-0007, 951-0004 |
| DENSO Auto Parts | 950-0111, 950-0112, 950-0113, 950-0118, 950-0123, 950-0125, 950-0126, 950-0127, 950-0128, 950-0134, 950-0141, 950-0190, 950-0193, 950-0194, 950-3021, 950-7002, 950-7004, 950-7005, 951-0004, 951-0007, 951-0008, 951-0012, 951-0013, 951-0016, 953-3010 |
| Datsun/Nissan | 17040-3B000, 17040-3B010, 17040-3B015, 17040-3B800, 17040-3B805, 17040-3S500, 17040-3S505, 17040-3S510, 17040-59G00, 17040-59G05, 17040-5S105, 17040-8B000, 17040-8B005, 17040-S3801, 17042-0W000, 17042-0W005, 17042-0Z000, 17042-1W210, 17042-2B500, 17042-31U00, 17042-31U05, 17042-31U08, 17042-4B000, 17042-4B00A, A7042-1W210, A7042-31U08, A7042-VE400 |
| EVO Driveline | AFS0017P, AFS0329P, AFS0355P, AFS0427P, AFS0703F, RE0427P, RE0458F, RE0464F, RE0658F, AFS0427, AFS0735M, AFS0894P, AFS0914S, AFS1054P, RE0297F, RE0894P, RE0914S, RE1054P |
| GMB | 520-1021 |
| Gates | P142E, P165E, P167E, P476E, P496E, P95149E, P95186E, P95203E |
| General Motors | 25177380, 25177382, 25177683, 25313269, 30013078, 30014333, 30018726, 30024592, 30024593, 30026422, 30026423, 91171624, 91177339, 94384528, 94479418, 30018727, 30019572, 91174465 |
| Honda | 17040-S01-A30, 17040-S01-A31, 17040-S01-A40, 17040-S02-L01, 17040-S04-G31, 17040-S04-G41, 17040-S04-L00, 17040-S04-L01, 17040-S10-A00, 17040-S10-C01, 17040-S10-C10, 17040-S5A-930, 17040-SR1-A31, 17040-SR2-A33, 17040-SS8-A00, 17040-SS8-A02, 17040-ST7-L00, 17040-ST7-L01, 17040-ST7-L30, 17040-ST7-L31, 17040-SV1-A30, 17040-SV1-A31, 17040-SV1-A32, 17040-SV1-L00, 17040-SV1-L02, 17040-SV4-A30, 17040-SW5-A30, 17040-SW5-A31, 17040-SW5-A32, 17040-SY8-A01, 8-97118-858-0, 8-97118-858-1 |
| Hygrade Tuneup | EFP165 |
| Hyundai | 31110-25500, 31110-25500DS, 31110-28100, 31110-28300, 31110-33610, 31111-22050, 31111-28150, 31111-28300, 31111-33000, 31111-37150, 31111-37200, 31111-37250, 31111-3S400, 31123-25000 |
| Import Direct | A30235, A30279, A30282, A33084, E16009, E16014, E16021, E16024, E16088, E16130, E16205, E16295, E16387 |
| Isuzu | 5-86202-235-0, 8-94384-528-0, 8-94384-528-1, 8-94479-418-1, 8-94479-418-2, 8-97041-876-2, 8-97069-337-1, 8-97118-512-0, 8-97118-858-0, 8-97118-858-1 |
| Kem | EFP318, EFP8229 |
| Kia | 0K01A13350B, 0K01D-13-35Z, 0K24C-13-35ZA, 0K24T-13-35ZA, 0K29T-13-35ZA, 31111-3S400, 31111-3S901 |
| Magneti Marelli | 1AMFP00016 |
| Master Parts Division | E3975H, E7067S, E7081H, E8229, E8335 |
| MasterPro Fuel Pumps | MPE16014 |
| Mazda | B3C7-13-350, B3E7-13-350A, B3E7-13-35ZB, B61P-13-350B, B61P-13-ZE0, B6BF-13-350, B6BF-13-350MV, B6BG-13-35Z, B6DA-13-350, BPE8-13-350, BPE8-13-35Z, JE45-13-35ZB, JE47-13-35ZA, JE48-13-35Z, JE48-13-35ZC, KL11-13-350G, KL47-13-350, KL47-13-35ZB, KLK1-13-35Z, LFG1-13-350, ZL01-13-350, ZL01-13-350A, ZL01-13-35Z, ZL01-13-35ZA |
| Mitsubishi | AW332718, AW334174, AW337327, MB678806, MB698623, MB698857, MB831262, MB831263, MB831264, MB831333, MB831562, MB831691, MB959730, MR124881, MR124999, MR208665, MR908180, MB927016, MB959729, MR124765, MR134284, MR134804, MR134806, MR134868, MR204500, MR241351, MR241394, MR325884, MR376042, MR391856, MR508115, MR933629 |
| Motorcraft | PFS-57 |
| N/A | 9510004, 9510007, 9510008, 9510012, 9510013, 9510016, EP473, 17040S04L00, 17040S04L01, 17040S84A01, 17040SS8A00, 17040SX0A31, 17040SX0A32, 3111028100, 3111028300, 3111122050, 3111128150, 3111128300, 3111137200, 3111137250, 3111138050, 3112325000, 5862022350, 8943845280, 8943845281, 8944794181, 8944794182, 8970418762, 8970693371, 0K01D1335Z, B61P13350B, B61P13ZE0, B6BF13350, BPE81335Z, JE451335ZB, JE471335ZA, JE481335Z, KL1113350G, KL471335ZB, KLK11335Z, ZL0113350, ZL011335Z, 16141180318, 16147161387, 170403B000, 170403B010, 170403B015, 170403B800, 170403B805, 170403S500, 170403S505, 170403S510, 1704059G00, 1704059G05, 170405S105, 170408B000, 170408B005, 17040S3801, 170420W000, 170420W005, 170421W210, 1704231U00, 1704231U05, 1704231U08, 170427J100, 170427J160, 42021AA020, 42021AA330, 42021AA350, 42021AC001, 42021AC010, 42021AC012, 42021AC013, 42021AC200, 42021FA250, 1510050G00, 1510050G10, 1510058B00, 1510058B01, 1510058B10, 1510060G00, 1510060G20, 1510061AA1, 1510065D22, 1510065D32, 1510077E00, 1511050G00, 1511050GT0, P142E, P165E, P167E, P476E, P496E, P95149E, P95186E, P95203E, PFS57, USEP8229, F4230, 402-P8229, B0159E, E8198, USEP8335, 152014 |
| Niehoff | F45, F48, P142E, P157E, P158E, P162E, P165E, P166E, P167E, P194E, P278E, P296H, P324H, P342E, P345H, P347H, P458H, P476E, P477E, P478H, P479H, P487H, P492H, P496E, P505H, P518H, P520H, P521H, P522H, P524H, P95136E, P95149E, P95186E, P95203E |
| Precision Fuel | A30083, E16006, E16009, E16014, E16051 |
| SPECTRA PREMIUM | SP1342 |
| Spectra Premium | SP1118, SP1139, SP1166, SP1264, SP1269, SP1331, SP1390, SP3035H, SP3052M, SP4016M, SP4019M, SP4039M, SP4040M, SP4043H, SP4044H, SP4067M, SP4068H, SP44B1H, SP6049H, SP7003H, SP7167M, SP8046M, SP8234M, SP8338H, SP8341H, SP8349H, SP8351H, SP9153M, SP9155H |
| Subaru | 42021 AA020, 42021 AA320, 42021 AA330, 42021 AA350, 42021 AC001, 42021 AC010, 42021 AC012, 42021 AC013, 42021 AC170, 42021 AC200, 42021 AE02A, 42021 AE02B, 42021 AE06B, 42021 FA090, 42021 FA150, 42021 FA200, 42021 FA250, 42021 FC021, 42022 AE02A, 42022 AE02B, 74202 1390 |
| Suzuki | 1510061AA0, 15100-50G00, 15100-50G10, 15100-54830, 15100-58B00, 15100-58B01, 15100-58B10, 15100-60G00, 15100-60G20, 15100-60G21, 15100-61A1V, 15100-61AA1, 15100-65D02, 15100-65D12, 15100-65D22, 15100-65D32, 15100-65D70, 15100-77E00, 15110-50G00, 15110-50GT0, 15110-54G00, 15110-54G10, 15110-60GT0 |
| TYC | 152014-A |
| TruGrade | 5211005 |
| URO | NI0517606 |
| VEMO | V200904151, V99090002 |
| Walbro | GCA309, GCA3321, TCA321, TCA323, TCA3309 |
DELPHI FE0150 Fits Vehicles
- Acura CL (1997-1999)
- Acura Integra (1996-2001)
- Acura SLX (1996-1997)
- Acura TL (1995-1998)
- BMW 525i (1991-1995)
- BMW M5 (1991-1993)
- Chevrolet Metro (1998-2001)
- Chevrolet Tracker (1998-2004)
- Chrysler Sebring (1995-2000, 2003-2006)
- Dodge Avenger (1995-2000)
- Dodge Colt (1993-1994)
- Dodge Ram 50 (1991-1993)
- Dodge Stealth (1991-1996)
- Dodge Stratus (2003-2006)
- Eagle Summit (1992-1996)
- Eagle Talon (1995-1998)
- Honda Accord (1994-1997)
- Honda CR-V (1997-1998)
- Honda Civic (1993, 1995-2004)
- Honda Civic del Sol (1996-1997)
- Honda Passport (1994-1997)
- Hyundai Accent (1995-2002)
- Hyundai Elantra (1992-2000)
- Hyundai Sonata (1989-1998)
- Hyundai Tiburon (1997-2001)
- INFINITI I30 (1996-1999)
- INFINITI QX4 (1997-1998)
- Isuzu Impulse (1990-1992)
- Isuzu Oasis (1996-1999)
- Isuzu Rodeo (1993-1997)
- Isuzu Stylus (1991-1993)
- Isuzu Trooper (1994-1997)
- Kia Sephia (1995-1997)
- Kia Sportage (1997-1999)
- Mazda 323 (1992-1994)
- Mazda 929 (1992-1995)
- Mazda MPV (1991-1998)
- Mazda MX-3 (1992-1995)
- Mazda MX-5 Miata (2006-2015)
- Mazda Miata (1990-1997)
- Mazda Millenia (1995-2002)
- Mazda Protege (1992-2003)
- Mazda Protege5 (2002-2003)
- Mitsubishi 3000GT (1991-1999)
- Mitsubishi Diamante (1992-2004)
- Mitsubishi Eclipse (1995-1999)
- Mitsubishi Expo (1992-1995)
- Mitsubishi Expo LRV (1992-1994)
- Mitsubishi Galant (1991-1992, 1994-1998)
- Mitsubishi Mighty Max (1990-1996)
- Mitsubishi Mirage (1993-2002)
- Mitsubishi Montero (1992-2000)
- Mitsubishi Montero Sport (1997-1998)
- Nissan 200SX (1995-1998)
- Nissan Altima (1996-2001)
- Nissan D21 (1992-1994)
- Nissan Frontier (1998-2004)
- Nissan Maxima (1995-1999)
- Nissan Pathfinder (1996-1999)
- Nissan Pickup (1995-1997)
- Nissan Sentra (1995-1999)
- Plymouth Colt (1992-1994)
- Subaru Baja (2003-2006)
- Subaru Forester (1998-2002)
- Subaru Impreza (1993-2001)
- Subaru Justy (1990-1994)
- Subaru Legacy (1990-1996, 1999-2003)
- Subaru Outback (2000-2004)
- Suzuki Aerio (2002-2007)
- Suzuki Esteem (1995-1999)
- Suzuki Grand Vitara (1999-2005)
- Suzuki Sidekick (1995-1998)
- Suzuki Swift (1995-2001)
- Suzuki Vitara (1999-2004)
- Suzuki X-90 (1996-1998)
