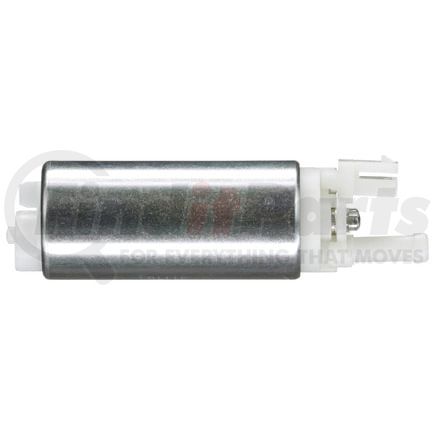

(888) 312-8812 Login SignupDELPHI FE0114 Electric Fuel Pump - In-Tank, 32 GPH Average Flow Rating
$9899
Limited availability at this price!
In Stock
Get it by Friday, Aug 7
DELPHI FE0114 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Turbine pump design delivers a steady 32 GPH flow rate for quick starts and reliable fuel delivery under varying loads.
- Pressure range between 62 and 85 psi maintains system integrity and prevents vapor lock in high‑demand conditions
- Square, two‑pin connector and pin terminals simplify wiring and provide secure electrical connections
- Includes gasket and seal made of nitrile rubber, offering a secure, leak‑free fit during installation
- Fits a variety of gas fuel systems, with a 129 mm length and 0.313‑inch hose‑bead outlet accommodating common fuel line sizes
Delphi Electric Fuel Pump
The Delphi Electric Fuel Pump provides reliable in-tank fuel delivery with a 32 GPH average flow rate. Its turbine-pump design operates between 62 and 85 psi, maintaining consistent fuel pressure to support smooth engine performance. The pump features a square, two-pin connector and includes a nitrile-rubber gasket or seal for leak-free installation. Delphi’s innovative design reduces amperage draw and meets OE standards, resulting in less load on the electrical system. Built with a 129 mm length and a 0.313-inch outlet diameter, the Delphi FE0114 fits a range of vehicles requiring high-pressure in-tank pumps.
DELPHI FE0114 Specifications
Product Attributes
| Position(s) | In-Tank |
| System Pressure | 62 psi |
| Item Grade | Standard Replacement |
| Package Contents | Electric Fuel Pump, (2) Hose Clips, Hose Piece, Insulating Sleeve, Isolator, (2) Seals, Instruction Sheet |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 19.0 MM |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 129.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 85.0 PS |
| Terminal Type | Pin |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Connector Shape | Square |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose Bead |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 14.0 2H |
| Average Current Draw | 8.0 68 |
| Average Flow Rating | 32.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Minimum Pressure | 62 PS |
| Maximum Amperage Draw | 8.0 68 |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604219225 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0114 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 25028327, 25029911, EP270, EP306, EP381, 19111391, 19111404, 19111414, 19180455, EP376 |
| AUTOBEST | F2281 |
| Airtex | E3270, E3622S, E3625S, E3933, E3210 |
| Auto-Tune | P134, P96112E |
| AutoZone | CFE0114 |
| BorgWarner | P134, P96112E |
| Bosch | 69225, 69226 |
| Carquest | E219657 |
| Carter | P74074, P74167, P74037, P90005 |
| DENSO | 951-5016 |
| DENSO Auto Parts | 951-5002, 951-5016 |
| EVO Driveline | AFS0209P, AFS0786S, RE0202P, RE0209P, RE0381P |
| FACET FUEL PUMPS | FEP3270 |
| GMB | 530-1071 |
| Gates | P134, P96112E |
| General Motors | 25116853, 25116881, 25117264, 25117454, 25163464, 25163473, 25164429 |
| Kem | EFP270 |
| Magneti Marelli | 1AMFP00011 |
| Master Parts Division | E3270 |
| MasterPro Fuel Pumps | MPE16008 |
| N/A | 9515002, 9515016, P134, P96112E, USEP3210, F2281, 402-P3270, B0069E, E3839S, USEP3270, 4020205 |
| Niehoff | P134, P96112E |
| Precision Fuel | E16008 |
| Spectra Premium | SP1115, SP1151, SP128C1H |
| TYC | 152007-A |
| TruGrade | 5211002 |
DELPHI FE0114 Fits Vehicles
- GMC C3500HD (1996-1997)
- Chevrolet C3500HD (1996-1997)
- GMC C6500 Topkick (1999-2002)
- GMC C7500 Topkick (1999-2002)
- Chevrolet C7500 Kodiak (1999-2002)
- Chevrolet C6500 Kodiak (1999-2002)
- Oldsmobile Bravada (1992-1994)
- GMC Yukon (1996-1997)
- GMC Safari (1992-1996)
- GMC Syclone (1991)
- GMC Typhoon (1992-1993)
- GMC Sonoma (1992-1995)
- GMC Jimmy (1992-1995, 1998)
- GMC P3500 (1996-1997)
- GMC K3500 (1996-1997)
- GMC K2500 Suburban (1996-1997)
- GMC K2500 (1996-1997)
- GMC K1500 Suburban (1996-1997)
- GMC K1500 (1996-1997)
- GMC C3500 (1996-1997)
- GMC C2500 Suburban (1996-1997)
- GMC C2500 (1996-1997)
- GMC C1500 Suburban (1996-1997)
- GMC C1500 (1996-1997)
- Chevrolet Tahoe (1996-1997)
- Chevrolet S10 (1994-1995)
- Chevrolet Blazer (1995)
- Chevrolet S10 Blazer (1992-1994)
- Chevrolet P30 (1996-1997)
- Chevrolet K3500 (1996-1997)
- Chevrolet K2500 Suburban (1996-1997)
- Chevrolet K2500 (1996-1997)
- Chevrolet K1500 Suburban (1996-1997)
- Chevrolet K1500 (1996-1997)
- Chevrolet Impala (1994-1996)
- Chevrolet Corvette (1992-1996)
- Chevrolet Caprice (1994-1996)
- Chevrolet C3500 (1996-1997)
- Chevrolet C2500 Suburban (1996-1997)
- Chevrolet C2500 (1996-1997)
- Chevrolet C1500 Suburban (1996-1997)
- Chevrolet C1500 (1996-1997)
- Chevrolet Astro (1992-1996)
- Cadillac Commercial Chassis (1994-1996)
- Cadillac Fleetwood (1994-1996)
- Buick Commercial Chassis (1994-1996)
- Buick Roadmaster (1994-1996)
DELPHI FE0114 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI FE0114 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
DELPHI FE0114 Questions & Answers
No questions yet
Be the first to ask a question about this product!
