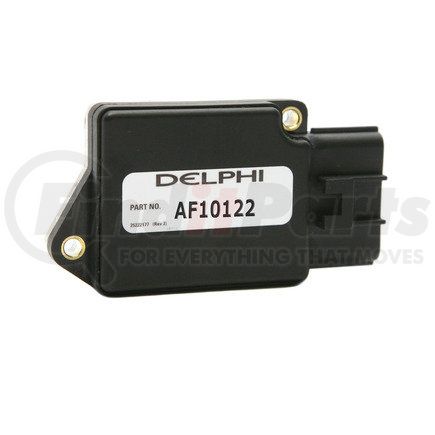

Delphi AF10122 - Mass Air Flow Sensor
$15149
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Mass Air Flow Sensor
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 92 MM |
| Sensor Casing Width | 50.5 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 68.70 MM |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 16 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.6 IN |
| Sensor Casing Width | 1.9 IN |
| Bolt Hole Center To Bolt Hole Center | 2.7 IN |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 0.6 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604202876 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
Part Interchanges
- ACDelco 2131046
- 641537
- Richporter MA134
- F5RZ12B579CARM
- F7RZ12B579AARM
- F7RZ12B579VRM
- Standard Motor Products MF0903
- BorgWarner 29044
- CARDONE Reman 74-9523
- CARDONE New 86-9523
- Dorman 917-838
- Motorcraft AFLS-112RM
- Motorcraft AFLS-192RM
- Spectra Premium MA134
- Carquest 64-1537
- Carquest MQ6294
- BWD 29044
- BWD MA1190
- Duralast DL-3053
- Duralast DL-6054
- Ford F5RZ 12B579-CARM
- Ford F7RZ 12B579-AARM
- Ford F7RZ 12B579-VRM
- Standard Motor Products MAS0358
- NAPA Reman Computers MAF69523
- NAPA Reman Computers XTP49523
- WAI MAF10122
- 245-1047
- 245-2047
Fits Vehicles
- Mercury Mystique (1995-1999)
- Mercury Cougar (1999)
- Ford Contour (1995-1999)
