(888) 312-8812 Login SignupDELPHI AF10060 Mass Air Flow Sensor
MSRP: $124.84
$10199
Save $22.85
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 28
DELPHI AF10060 Part Description
Manufacturer
Product Description

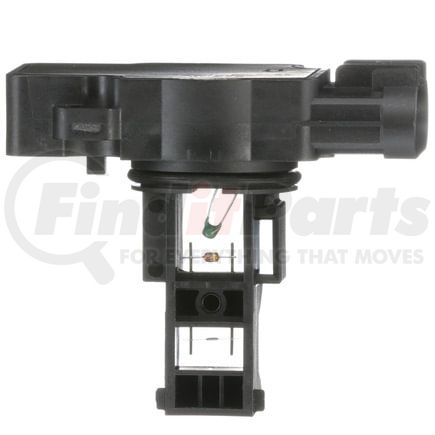

Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10060 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 76.3 MM |
| Sensor Casing Width | 46 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 52.2 MM |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 32.3 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.0 IN |
| Sensor Casing Width | 1.8 IN |
| Bolt Hole Center To Bolt Hole Center | 2.0 IN |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 1.2 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604201770 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10060 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2134343, 23256991 |
| Airtex | 5S13836 |
| BWD | 59087, MA1099 |
| Blue Streak Electronics New | MF21282N |
| BorgWarner | 59087 |
| CARDONE New | 86-50074 |
| CARDONE Reman | 74-50074 |
| Carquest | 64-2006, MQ6222 |
| DORMAN | 917-1067 |
| Duralast | DL-3091 |
| GLOBAL PARTS DISTRIBUTORS | 1813181 |
| General Motors | 10393948, 23256991 |
| HELLA | 358095821 |
| N/A | 642006, 214146, 245-1206, MF21282 |
| NAPA Reman Computers | XTP450074 |
| NGK SPARK PLUGS | MG0014 |
| NTK | MG0014 |
| STANDARD IGNITION | MAS0262 |
| Spectra Premium | MA359 |
| Standard Motor Products | MF21282N, MAS0262 |
| VEMO | V51720228 |
| WALKER PRODUCTS | 245-1206 |
| Wells | SU15242 |
DELPHI AF10060 Fits Vehicles
- Cadillac Escalade EXT (2009-2013)
- Cadillac Escalade ESV (2009-2014)
- GMC Yukon XL 2500 (2009-2013)
- GMC Yukon XL 1500 (2009-2014)
- GMC Yukon (2009-2014)
- GMC Sierra 1500 (2009-2013)
- Cadillac Escalade (2009-2014)
- Chevrolet Silverado 1500 (2009-2013)
- Chevrolet Suburban 2500 (2009-2013)
- Chevrolet Tahoe (2009-2014)
- Chevrolet Suburban 1500 (2009-2014)
- Chevrolet Avalanche (2009-2013)
- GMC Sierra 3500 HD (2009-2015)
- GMC Sierra 2500 HD (2009-2015)
- Chevrolet Silverado 2500 HD (2009-2015)
- Chevrolet Silverado 3500 HD (2009-2015)
- Cadillac CTS (2009-2015)
