CENTRIC 123.66019 C-Tek Standard Brake Drum

Name: Centric 123.66019 C-Tek Standard Brake Drum
SKU: 12366019
Price: 236.78 USD
Availability: OutOfStock

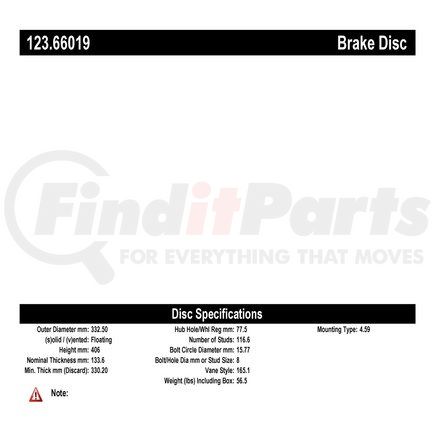

*Representative image - actual part not displayed

$236.78

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 123.66019 Part Description

C-Tek Standard Brake Drum

Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
For best operation and ultimate strength
OE-Matched Fit, Form, and Function
100% Mill Balanced
For vibration free performance
Meets SAE Standard for Tensile Strength
For maximum service life and structural integrity

Weight [cntrc] Kgs	25.682
Weight [cntrc] Lbs	56.500
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	165.100
Bolt Circle Diameter [cntrc] In	6.500
Hub Hole / Register [cntrc] Mm	116.586
Hub Hole / Register [cntrc] In	4.590
Height [cntrc] Mm	133.604
Height [cntrc] In	5.260
Friction Surface Width [cntrc] Mm	77.470
Friction Surface Width [cntrc] In	3.050
Product Grade [cntrc]	Standard
Maximum Brake Diameter (Discard)	332.500 MM
Maximum Brake Diameter (Discard)	13.090 IN
Bolt Hole Quantity	8
Outside Diameter	405.892 MM
Outside Diameter	15.980 IN
Outer Cooling Fins	Yes
Mounting Hole Diameter	15.750 MM
Mounting Hole Diameter	0.620 IN
Nominal Drum Diameter	330.200 MM
Nominal Drum Diameter	13.000 IN

Harmonized Tariff Code (Schedule B)	8708300050
Country of Origin (Primary)	CN
NAFTA Preference Criterion Code	B
Harmonized Tariff Code (HTS)	8708305030
UPC	00805890915287

Brand	Part Number
N/A	BD61891, E127-71-024, E128-71-024, 8971, 123.66019, 8971C, 8971CG, 15583114, 201004, 140536, PDR0536, 6401478, 847, AD8619, D9341, E8386, E12771024, 87347, 122970B, X21706, BD1527, 2547, 2547R, 2547DGS, 8844019, 177339, 36547049
RAYBESTOS	2547, 2547R
