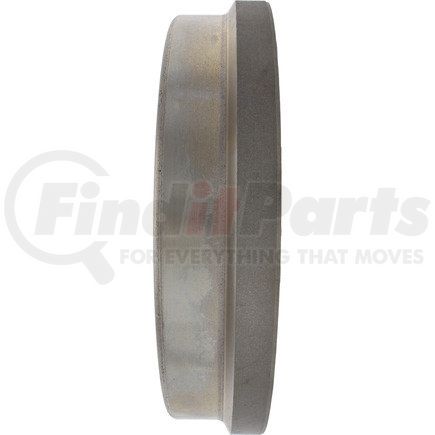

Centric 123.42021 - C-Tek Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 5.455 |
| Weight [cntrc] Lbs | 12.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 67.820 |
| Hub Hole / Register [cntrc] In | 2.670 |
| Height [cntrc] Mm | 62.400 |
| Height [cntrc] In | 2.457 |
| Friction Surface Width [cntrc] Mm | 50.800 |
| Friction Surface Width [cntrc] In | 2.000 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 262.000 MM |
| Maximum Brake Diameter (Discard) | 10.315 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 296.000 MM |
| Outside Diameter | 11.654 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.900 MM |
| Mounting Hole Diameter | 0.508 IN |
| Nominal Drum Diameter | 259.000 MM |
| Nominal Drum Diameter | 10.200 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890914655 |
Part Interchanges
CENTRIC 123.42021 Cross Reference
We have 2 alternatives for the 123.42021 by CENTRIC:
Fits Vehicles
- Nissan Axxess (1990-1995)
