CENTRIC part description

Product Description

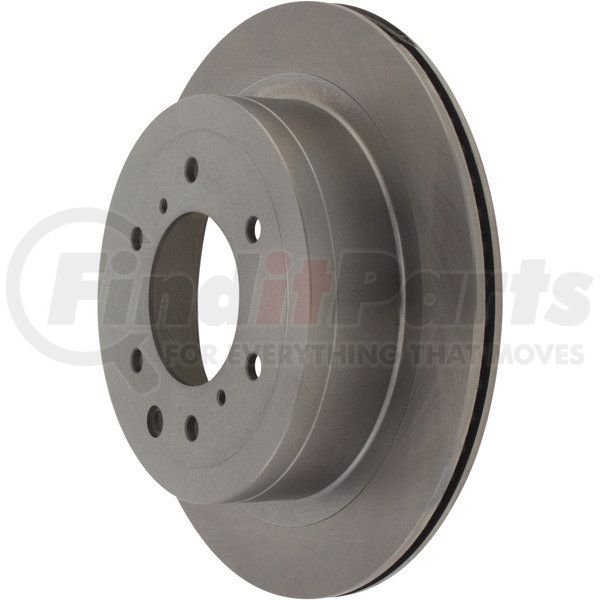

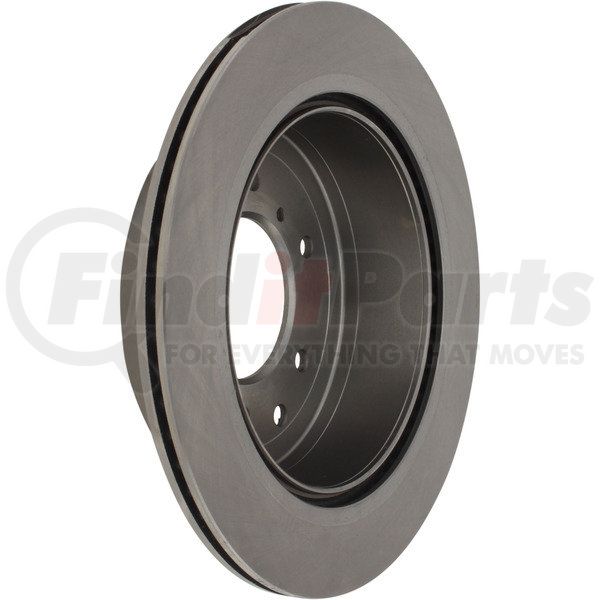

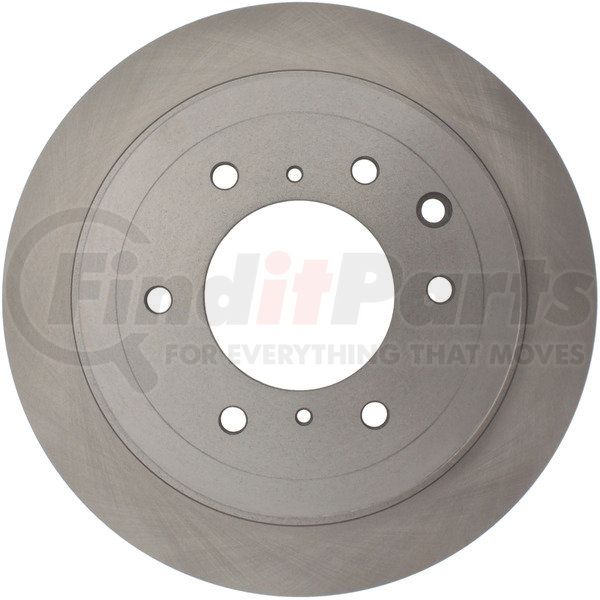

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Hat Id [cntrc] In 8.268
Weight [cntrc] Lbs 13.500
Disc Mounting [cntrc] Floating
Product Grade [cntrc] Standard
Misc Holes [cntrc] 3
Weight [cntrc] Kgs 6.140
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Hat Id [cntrc] Mm 210.000
Discard Thickness 16.000 MM
Discard Thickness 0.630 IN
Nominal Thickness 0.709 IN
Nominal Thickness 18.000 MM
Overall Height 2.929 IN
Overall Height 74.400 MM
Outside Diameter 332.000 MM
Outside Diameter 13.071 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 3.701 IN
Center Hole Diameter 94.000 MM
Mounting Bolt Hole Circle Diameter 139.600 MM
Mounting Bolt Hole Circle Diameter 5.496 IN
Stud/Lug Hole Quantity 6
Stud/Lug Hole Diameter 0.496 IN
Stud/Lug Hole Diameter 12.600 MM

Additional Information

Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708305030
UPC 805890839439

Part Interchanges

Fits Vehicles

  • Mitsubishi Montero (2008-2017)
