WABCO 4725003200 - ABS Modulator Valve - Front Axle Package
$76999
MSRP: $2,029.99
Save: $1,260.00
In stock
limited availability at this price!
. Learn more
WABCO part description
Features & Benefits
- Controls brake pressure to minimize wheel lock-up and skidding
- Enhances braking stability in emergency and low-traction conditions
- Works with advanced ABS systems to improve stopping performance
- Guarantees safe and controlled braking for heavy-duty trucks

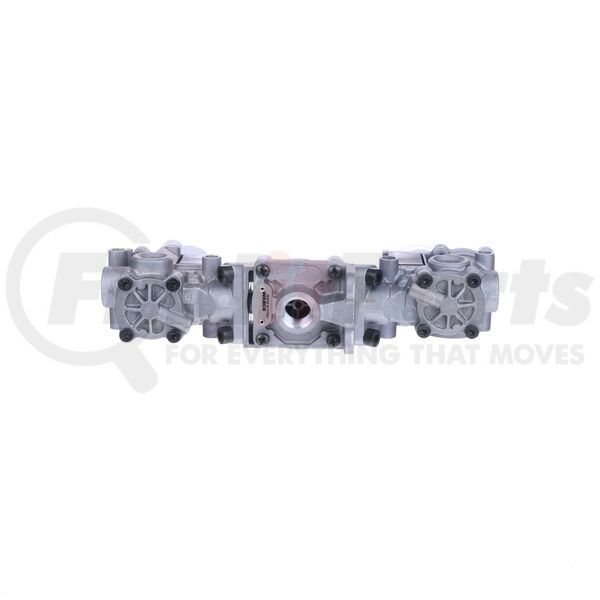

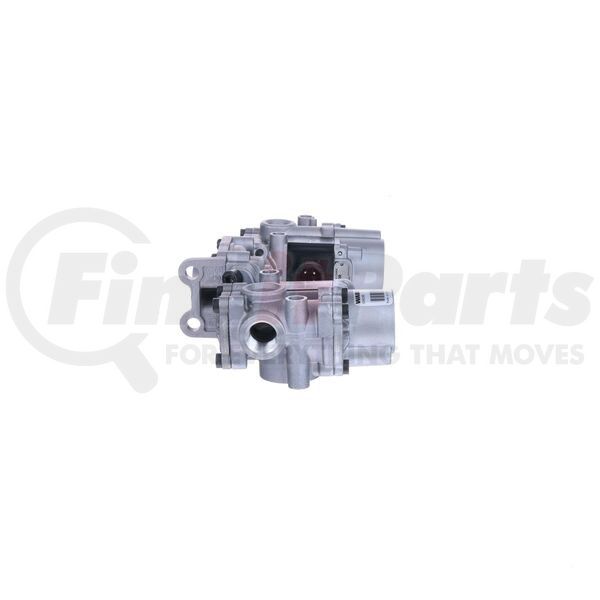

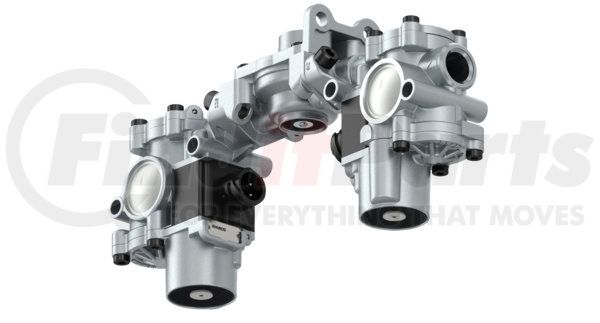

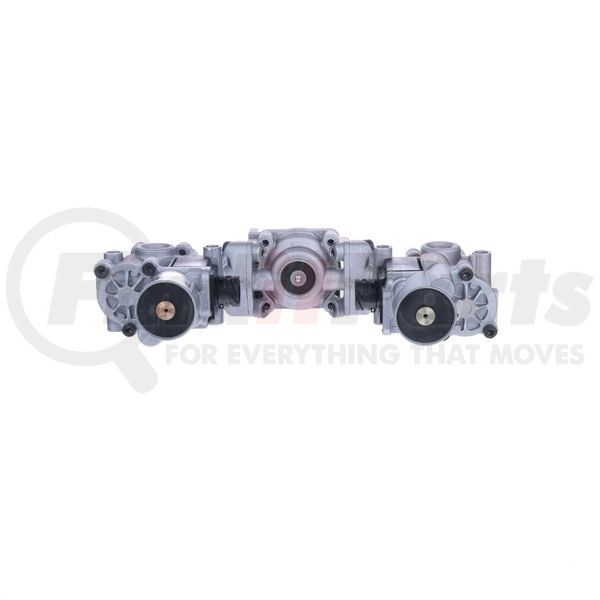

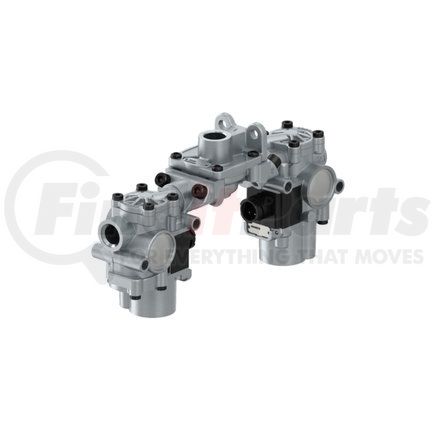

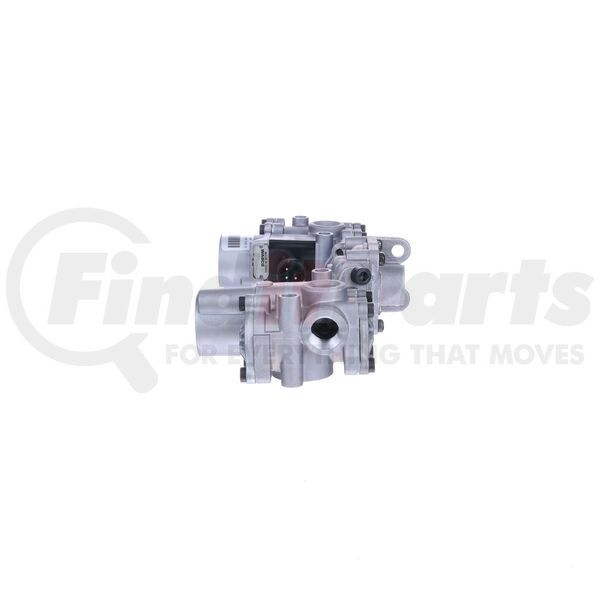

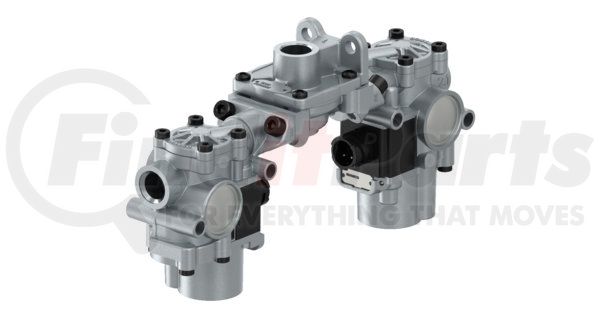

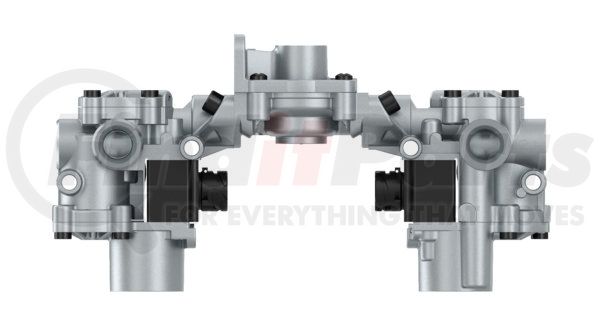

WABCO ABS Modulator Valve
Did you know that the WABCO ABS Modulator Valve is a crucial component in modern truck braking systems? It precisely regulates braking force, allowing drivers to maintain stability and control even in challenging road conditions. Integrated into advanced anti-lock braking systems, the WABCO 4725003200 supports overall vehicle safety by reducing the risk of uncontrolled stops. Reliable braking components contribute to the safety of both drivers and those they share the road with, making this an essential part of any well-maintained truck. When in doubt, WABCO is the modulator valve manufacturer you can trust.
Product Attributes
| Port thread 1 | 1/2 - 14 DRYSEAL NPTF |
| Voltage | 12 V |
| Max. operating pressure | 11.0 bar |
| Max. operating pressure | 11.0 bar |
| Weight | 4.4 |
| Port thread 2.1 | 1/2 - 14 DRYSEAL NPTF |
| Port thread 3 | Exhaust |
| Protection class | IP66, IP69K |
| Response Pressure | 0.07 bar |
| Temperature Range | -40°C to +80°C |
| Electrical connection | DIN 72585-A1-3.1-Sn/K1 |
WABCO 4725003200 Cross Reference
We have 11 alternatives for the 4725003200 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
