RAYBESTOS 9203R Part Description
Manufacturer
Product Description

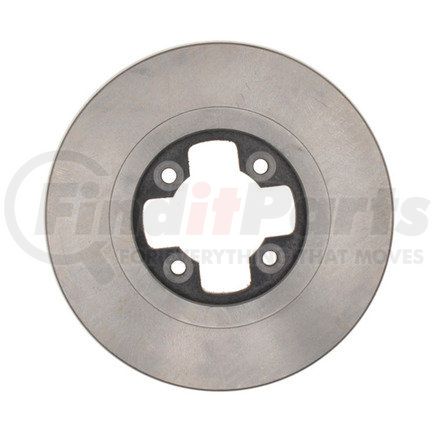

Raybestos R-Line Brake Rotor
Application Summary
1988-1984 Nissan 200SX Front, 1984-1982 Nissan Maxima Front, 1981 Nissan 810 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9203R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.874 IN |
| Center Hole Diameter | 73 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.63 IN |
| Discard Thickness | 16 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.74 IN |
| Mounting Bolt Hole Circle Diameter | 95 MM |
| Mounting Bolt Hole Diameter | 3.74 IN |
| Mounting Bolt Hole Diameter | 95 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 9.83 IN |
| Outside Diameter | 249.7 MM |
| Overall Height | 0.865 IN |
| Overall Height | 21.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367919 |
RAYBESTOS 9203R Cross References
| Brand | Part Number |
|---|---|
| 829352367919 | |
| ADVANCE AUTO PARTS | 141222, YH141222, YH141222C |
| AMERICAN REMANUFACTURED | 789-04010, 89-04010 |
| AUTOPART INTERNATIONAL | 78042 |
| AUTOSPECIALTY | JBR112, JBR112E |
| AUTOXTRA | 60611, AX3183 |
| AUTOZONE | 3183, 3183DG, DL3183 |
| AXXIS | 085-6460 |
| BECK/ARNLEY | 080-1990, 083-1990 |
| BENDIX | 141222 |
| BOSCH | 40011099 |
| BRAKE HEADQUARTERS | BR04076 |
| BRAKE PRO | 4619203 |
| BRAKEBEST | 40011099, 81-60611, 9203, 9203R, 9203RGS, BD60611 |
| BREMBO | 09.4789.10, 25245 |
| CALIFORNIA DRUM & ROTOR | 60611 |
| CENTRIC | 120.42010, 121.42010, 128.42010L, 128.42010R |
| CENTURY | 9203 |
| CEW | 1163201 |
| Casting Numbers | 210667-C, 31831, 325072 |
| Centric Parts | 120.42010, 121.42010, 128.42010L, 128.42010R |
| DATSUN/NISSAN | 40206W1260 |
| DAYTON WALTHER | D7904 |
| DELPHI | RB18 |
| DURA CORP | BR3183 |
| DuraGo | BR3183 |
| EIS BRAKES | D9203 |
| EUROROTOR | NI425 |
| FADE FREE | 60611 |
| FRATELLI POLETTI | 99YL |
| GIRLING | GR675 |
| GREN | 31902 |
| GUARDIAN | 52-60611 |
| INTERBRAKES | NS151V |
| ITM ENGINE COMPONENTS | 1600514 |
| KELSEY HAYES | 14908 |
| LAZORLITE | L73-1099 |
| MAGMA PRODUCTS | PMR423011 |
| MAREMONT | 7939203 |
| MCI | 4087 |
| MIDAS | BR1368 |
| MIGHTY DISTRIBUTING SYSTEM | 3183 |
| MOUNTAIN OFF-ROAD ENTERPRISES | NR25 |
| NEWTEK AUTOMOTIVE | 3183 |
| Newtek Automotive USA | 3183 |
| Nissan | 40206W1260 |
| PARTS MASTER | P60611 |
| PROMAX | 14-3183 |
| QUALIS | 3183 |
| QUALITEE INTERNATIONAL | 64-76-250 |
| QUALITY BRAND | 3183 |
| QUINTON HAZELL | BDC3371 |
| ROADMATES | 526514 |
| ROCKHILL | 3183 |
| SANYO | NR25 |
| SEARS | 1716 |
| STANDARD ROTORS AND DRUMS | 3183 |
| TEKNOMAC | 29110 |
| THE UNIVERSAL GROUP | 109830 |
| TRANSPARTS | BR0108 |
| TRUSTAR | 476250, R76250 |
| UAP | 3183 |
| Universal | 109830 |
| VERA | 3402037 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50291 |
| WAGNER BRAKE | BD60611 |
| WINHERE | 442098, YH2098 |
| WORLDPARTS | W70-528 |
RAYBESTOS 9203R Fits Vehicles
- Nissan Maxima (1981-1984)
- Nissan 810 (1981)
- Nissan 200SX (1984-1988)
