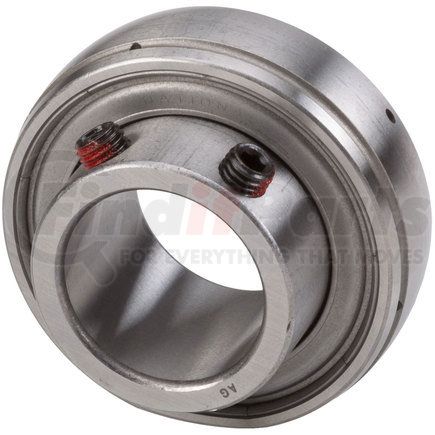

National Seals SNPS100RR - National SNPS-100-RR Multi-Purpose Bearing
- Part Number
- SNPS100RR
- Manufacturer
- NATIONAL SEALS
- Description
-
National SNPS-100-RR Multi-Purpose Bearing
details
$3649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NATIONAL SEALS part description
Product Description
Multi-Purpose Bearing
Application Summary
Farm Impl; Industrial (Set Screw Adptr Brg)
Features & Benefits
- BUILT TO LAST -- Advanced heat treatment process for strength
- PREMIUM MATERIALS -- Precision manufactured using premium-grade steel for lasting performance and extended bearing life
- RELIABLE PERFORMANCE -- Element size and quantity are engineered to meet or exceed the load rating of OE bearings
- COMPREHENSIVE COVERAGE -- Industry-leading coverage for domestic and import applications
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by National engineers for quality you can count on
- RIGOROUS TESTING?--?Comprehensive?testing throughout design and development processes by National engineers for quality you can count on
Product Attributes
| Bore (inch) | 1.000 IN |
| Bore (mm) | 25.400 MM |
| Design | Narrow Inner Ring |
| Inner Race Bore (inch) | 1.000 IN |
| Inner Race Bore (mm) | 25.400 MM |
| Inner Race Radius (inch) | 0.040 IN |
| Inner Race Radius (mm) | 1.016 MM |
| Inner Race Width (inch) | 1.109 IN |
| Inner Race Width (mm) | 28.169 MM |
| Outer Race Outside Diameter (inch) | 2.047 IN |
| Outer Race Outside Diameter (mm) | 52.000 MM |
| Outer Race Width (inch) | 0.591 IN |
| Outer Race Width (mm) | 15.000 MM |
| Outside Diameter (inch) | 2.047 IN |
| Outside Diameter (mm) | 52.000 MM |
| Part Description | Adapter Bearing |
| Series | SNPADAP |
| Type | I-2 |
| Width (inch) | 1.109 IN |
| Width (mm) | 28.169 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8482105048 |
| Harmonized Tariff Code (HTS) | 8482105048 |
| Canadian Harmonizing Tariff Code | 8482100000 |
| UPC | 00724956033997 |
Part Interchanges
