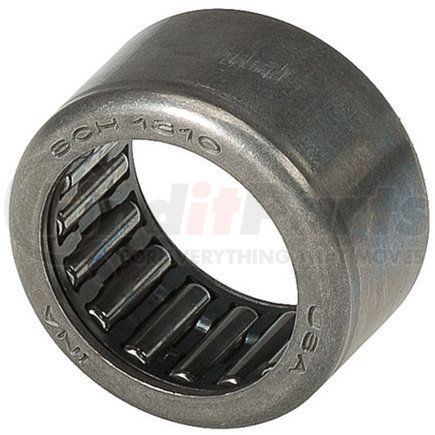

(888) 312-8812 Login SignupNATIONAL SEALS SCH1310 National SCH-1310 Multi-Purpose Bearing
MSRP: $19.61
$1899
Save $0.62
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 30
NATIONAL SEALS SCH1310 Part Description
Manufacturer
Product Description
Multi-Purpose Bearing
Application Summary
1990-1998 Chevrolet Astro (Drive: AWD / Qualifier: with Borg-Warner 4472 Transfer Case, 1 Speed, with Borg-Warner 1372 Transfer Case, 2 Speed); 2003-2014 Chevrolet Express 1500 (Front) (Drive: AWD / Qualifier: with Borg-Warner 4473 Transfer Case, 1 Speed); 2003-2005 Chevrolet Express 2500 (Front) (Drive: AWD / Qualifier: with Borg-Warner 4473 Transfer Case, 1 Speed); 2003-2014 GMC Savana 1500 (Front) (Drive: AWD / Qualifier: with Borg-Warner 4473 Transfer Case, 1 Speed); 2003-2005 GMC Savana 2500 (Front) (Drive: AWD); 1991 GMC Syclone (Drive: AWD); 1992-1993 GMC Typhoon (Drive: AWD / Qualifier: with Borg-Warner 1372 Transfer Case, 2 Speed); 1990-1998 GMC Safari (Drive: AWD / Qualifier: with Borg-Warner 1372 Transfer Case, 2 Speed, with Borg-Warner 4472 Transfer Case, 1 Speed); 1991-1997 Oldsmobile Bravada (Drive: AWD / Qualifier: with Borg-Warner 4472 Transfer Case, 1 Speed, with Borg-Warner 1372 Transfer Case, 2 Speed); 2001 Ford Explorer Sport (Drive: 4WD / Qualifier: with Borg-Warner 4404 Transfer Case, 2 Speed); 1996-2001 Ford Explorer (Drive: 4WD, AWD / Qualifier: with Borg-Warner 4404 Transfer Case, 2 Speed); 1998-2001 Mercury Mountaineer (Drive: AWD, 4WD / Qualifier: with Borg-Warner 4404 Transfer Case, 2 Speed)
Features & Benefits
- RIGHT TYPE -- Needle bearings are application-specific for the repair occasion, using either caged or full complement designs
- PREMIUM MATERIALS -- Precision manufactured using high-quality materials for outstanding durability and performance
- OE-STYLE DESIGN -- Engineered to meet OE specifications
- COMPREHENSIVE COVERAGE -- Industry-leading coverage for domestic and import applications
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by National engineers for quality you can count on
- RIGOROUS TESTING?--?Comprehensive?testing throughout design and development processes by National engineers for quality you can count on
NATIONAL SEALS SCH1310 Specifications
Product Attributes
| Bore (inch) | 0.8125 IN |
| Bore (mm) | 20.6370 MM |
| Housing Diameter Max (inch) | 1.1260 IN |
| Housing Diameter Max (mm) | 28.6004 MM |
| Housing Diameter Min (inch) | 1.1250 IN |
| Housing Diameter Min (mm) | 28.5750 MM |
| Outside Diameter (inch) | 1.1250 IN |
| Outside Diameter (mm) | 28.5750 MM |
| Part Description | Needle Bearing |
| Shaft Diameter Max (inch) | 0.8125 IN |
| Shaft Diameter Max (mm) | 20.6375 MM |
| Shaft Diameter Min (inch) | 0.812 IN |
| Shaft Diameter Min (mm) | 20.6248 MM |
| Type | J |
| Width (inch) | 0.6252 IN |
| Width (mm) | 15.8800 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8482400000 |
| Harmonized Tariff Code (HTS) | 8482400000 |
| Canadian Harmonizing Tariff Code | 8482400000 |
| UPC | 00724956858408 |
NATIONAL SEALS SCH1310 Part Interchanges
| Brand | Part Number |
|---|---|
| SKF | SCH-1310 |
| Timken | SCH1310 |
| Chicago Rawhide | SCH-1310 |
| General Motors | 88996567, 9433245 |
| INA CA - Archived | SCH1310, SCH1310B |
| Ford | F67Z-7120AA |
NATIONAL SEALS SCH1310 Fits Vehicles
- Mercury Mountaineer (1998-2001)
- Ford Explorer (1996-2001)
- Oldsmobile Bravada (1991-1994, 1996-1997)
- GMC Safari (1990-1998)
- GMC Typhoon (1992-1993)
- GMC Syclone (1991)
- Chevrolet Astro (1990-1998)
- Ford Explorer Sport (2001)
- GMC Savana 2500 (2003-2005)
- GMC Savana 1500 (2003-2014)
- Chevrolet Express 2500 (2003-2005)
- Chevrolet Express 1500 (2003-2014)
