NATIONAL SEALS part description

Product Description

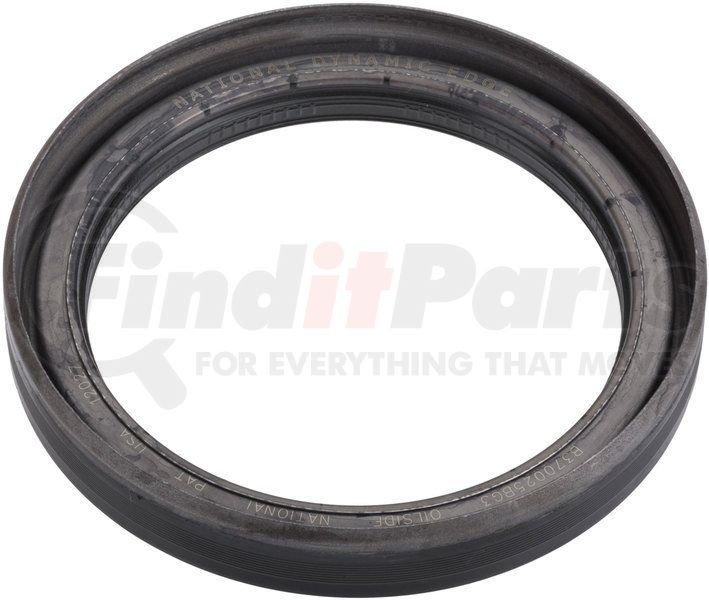

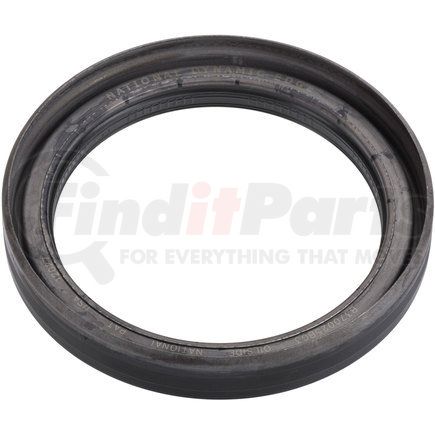

Wheel Seal

Application Summary

Clark, Rockwell-Standard FWRW

Features & Benefits

  • Dynamic Edge Red 37 Series oil bath seals deliver dependable point contact seal
  • Los sellos en baño de aceite Dynamic Edge Red 37 series brindan un punto de contacto y sellado confiable
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Rango de temperatura: -40°F a 225°F / -40°C a 107°C
  • Unitized construction provides greater structural integrity, easier installation and main lip protection
  • La construcción unificada proporciona una mayor integridad estructural, una instalación más sencilla y protección del labio principal
  • Abrasion-resistant nitrile with spring-loaded main lip for positive sealing with reduced shaft interference
  • Nitrilo resistente a la abrasión con labio principal cargado por resorte para un sellado positivo con interferencia reducida del eje
  • Unique rubber I.D. and O.D. includes patented SURE-LOCK® ribs that prevent shaft leaks and bore contamination
  • Goma única D.I y D.E. incluye tecnología patentada SURE-LOCK® que previenen las fugas del eje y la contaminación del orificio

Product Attributes

Outside Diameter 6.029 IN
Outside Diameter 153.137 MM
Width 0.875 IN
Width 21.340 MM
Material Nitrile
Footnote Dynamic Edge
Housing Bore 5.998 IN
Housing Bore 152.349 MM
Installation Tool RD306
Part Description Oil Bath Seal
Series 370000
Shaft Diameter 4.625 IN
Shaft Diameter 117.480 MM
Type 11
Unit of Dimension Inch

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
UPC 00028845193817

Part Interchanges

NATIONAL SEALS 370025A Cross Reference

We have 3 alternatives for the 370025A by NATIONAL SEALS:
