NATIONAL SEALS part description

Product Description

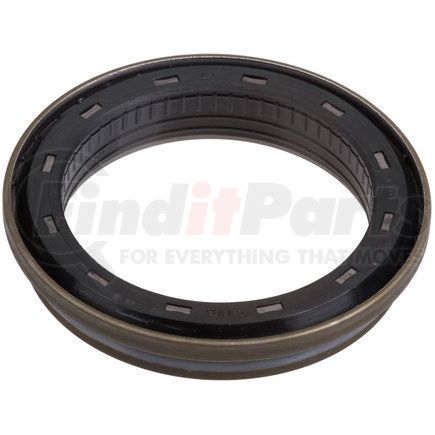

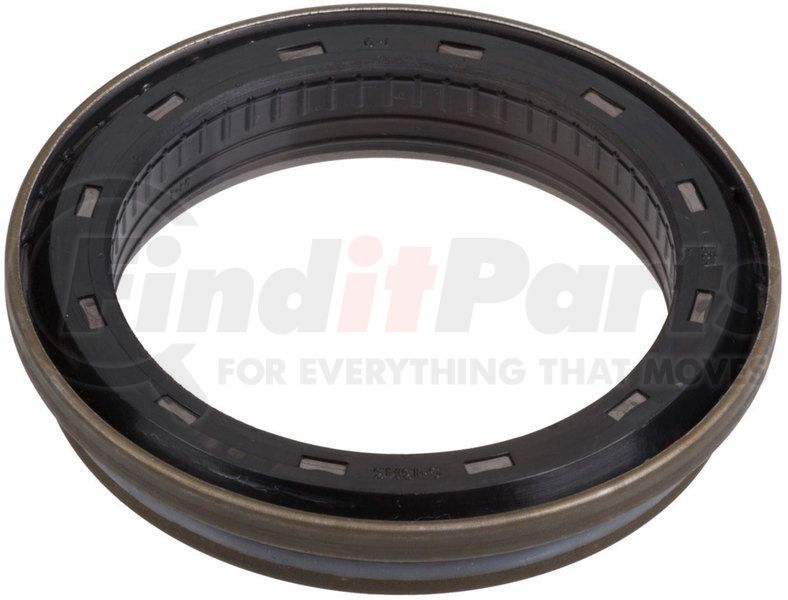

Multi-Purpose Seal

Application Summary

Rockwell-Standard Pin

Features & Benefits

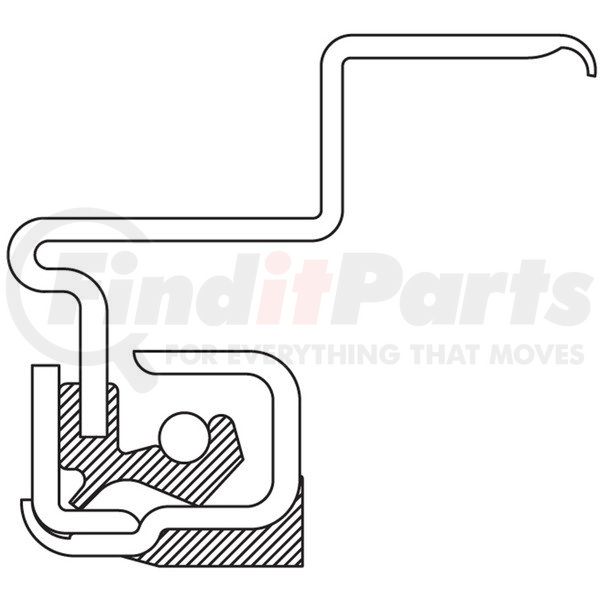

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 400°F / -40°C to 204°C
  • Excellent high temperature capabilities
  • Compatible with wide range of fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 3.003 IN
Inside Diameter 76.280 MM
Outside Diameter 3.761 IN
Outside Diameter 95.530 MM
Width 0.420 IN
Width 10.670 MM
Material Fluoro-Elastomer
Installation Tool RD2338
Footnote Sure-Lock® I.D. rib design
Part Description Oil Seal
Sealing Material Fluoro-Elastomer
Series 100000
Thickness 0.420 IN
Thickness 10.670 MM
Type 08
Unit of Dimension Inch
Housing Bore 3.751 IN
Housing Bore 95.280 MM
Shaft Diameter 3.003 IN
Shaft Diameter 76.280 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
UPC 00614046158955

Part Interchanges

NATIONAL SEALS 100495 Cross Reference

We have 1 alternatives for the 100495 by NATIONAL SEALS:
