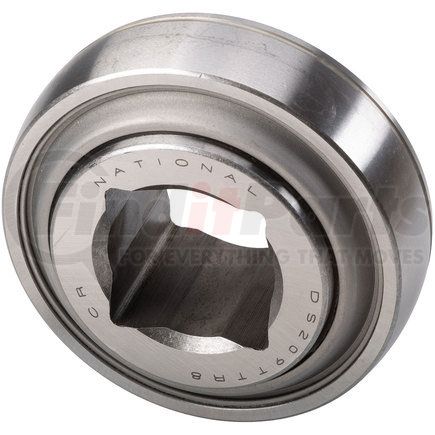

National Seals DS209TTR8 - National DS-209-TTR8 Multi-Purpose Bearing
- Part Number
- DS209TTR8
- Manufacturer
- NATIONAL SEALS
- Description
-
National DS-209-TTR8 Multi-Purpose Bearing
details
$9049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NATIONAL SEALS part description
Product Description
Multi-Purpose Bearing
Application Summary
Farm Impl (Disc Hrw)
Features & Benefits
- BUILT TO LAST -- Advanced heat treatment process for strength
- PREMIUM MATERIALS -- Precision manufactured using premium-grade steel for lasting performance and extended bearing life
- RELIABLE PERFORMANCE -- Element size and quantity are engineered to meet or exceed the load rating of OE bearings
- COMPREHENSIVE COVERAGE -- Industry-leading coverage for domestic and import applications
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by National engineers for quality you can count on
- RIGOROUS TESTING?--?Comprehensive?testing throughout design and development processes by National engineers for quality you can count on
Product Attributes
| Bore (inch) | 1.250 IN |
| Bore (mm) | 31.750 MM |
| Design | Round Bore |
| Inner Race Bore (inch) | 1.250 IN |
| Inner Race Bore (mm) | 31.750 MM |
| Inner Race Width (inch) | 1.438 IN |
| Inner Race Width (mm) | 36.513 MM |
| Outer Race Outside Diameter (inch) | 3.347 IN |
| Outer Race Outside Diameter (mm) | 85.001 MM |
| Outer Race Width (inch) | 0.866 IN |
| Outer Race Width (mm) | 21.999 MM |
| Outside Diameter (inch) | 3.347 IN |
| Outside Diameter (mm) | 85.001 MM |
| Part Description | Disc Harrow Bearing |
| Series | DISCH |
| Type | J-5 |
| Width (inch) | 1.438 IN |
| Width (mm) | 36.513 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8482105052 |
| Harmonized Tariff Code (HTS) | 8482105052 |
| Canadian Harmonizing Tariff Code | 8482100000 |
| UPC | 00724956003174 |
Part Interchanges
