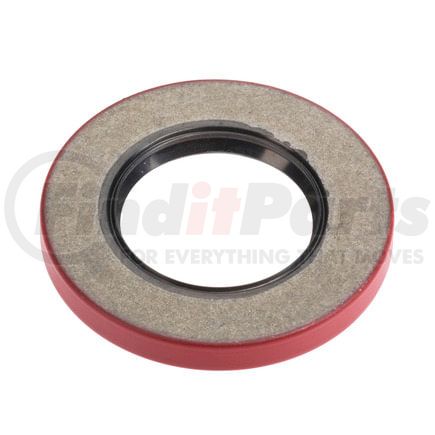

Name: National Seals 473313 National 473313 Transfer Case Output Shaft Seal
SKU: 473313
Price: 16.49 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Transfer Case Output Shaft Seal

Application Summary

1986-1987 Dodge W100 (Front) (Drive: 4WD); 1986-1993 Dodge W250 (Front) (Drive: 4WD); 1981-1993 Dodge W350 (Front) (Drive: 4WD); 1980 Plymouth Trailduster (Front) (Drive: 4WD / Qualifier: with New Process 205 Transfer Case, 2 Speed)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.750 IN
Inside Diameter	44.450 MM
Outside Diameter	3.066 IN
Outside Diameter	77.880 MM
Width	0.375 in
Width	9.530 MM
Material	Nitrile
Footnote	Zero Duplication Part
Part Description	Oil Seal
Redicoat	Yes
Sealing Material	Nitrile
Series	470000
Thickness	0.375 IN
Thickness	9.530 MM
Type	47
Unit of Dimension	Inch
Housing Bore	3.061 in
Housing Bore	77.750 MM
Shaft Diameter	1.750 IN
Shaft Diameter	44.450 MM
Seal Type	Seal
Shaft Diameter	1.750 IN
Housing Bore	77.750 MM
Grade Type	Premium

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00724956141128
