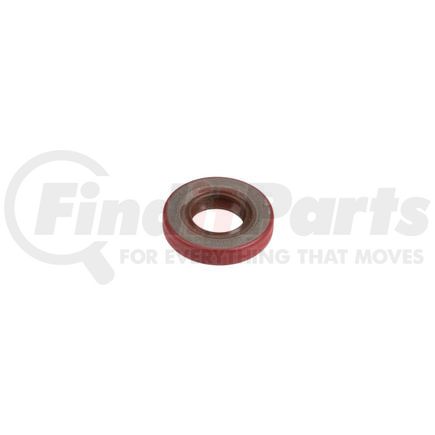

National Seals 471264V - Oil Seal
- Part Number
- 471264V
- Manufacturer
- NATIONAL SEALS
- Description
-
Oil Seal
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NATIONAL SEALS part description
Product Description
Multi-Purpose Seal
Application Summary
GM M/D Truck 96-79 Stg
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -40°F to 400°F / -40°C to 204°C
- Excellent high temperature capabilities
- Compatible with wide range of fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 0.625 IN |
| Inside Diameter | 15.880 MM |
| Outside Diameter | 1.254 IN |
| Outside Diameter | 31.850 MM |
| Width | 0.250 IN |
| Width | 6.350 MM |
| Material | Fluoro-Elastomer |
| Part Description | Oil Seal |
| Redicoat | Yes |
| Sealing Material | Fluoro-Elastomer |
| Series | 470000 |
| Thickness | 0.250 IN |
| Thickness | 6.350 MM |
| Type | 47 |
| Unit of Dimension | Inch |
| Housing Bore | 1.250 IN |
| Housing Bore | 31.750 MM |
| Shaft Diameter | 0.625 IN |
| Shaft Diameter | 15.880 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| UPC | 00614046685666 |
Part Interchanges
