Name: FEDERAL MOGUL-NATIONAL SEALS 415867
SKU: 415867
Price: 84.48 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Product Description

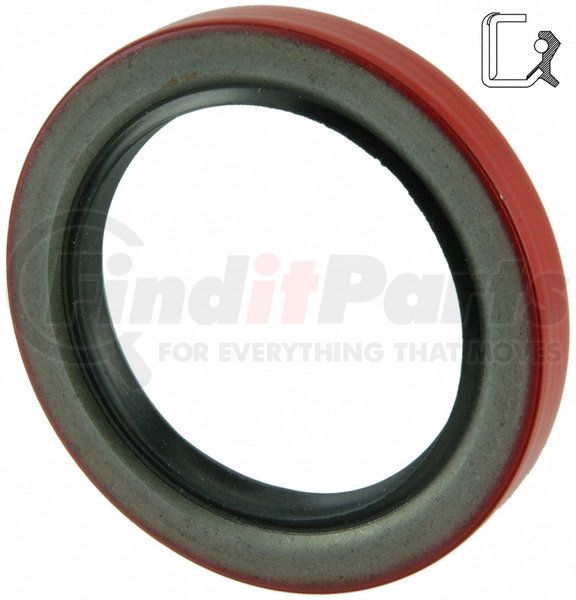

Oil Seal

Application Summary

Industrial 7.500x8.500x0.625

Features & Benefits

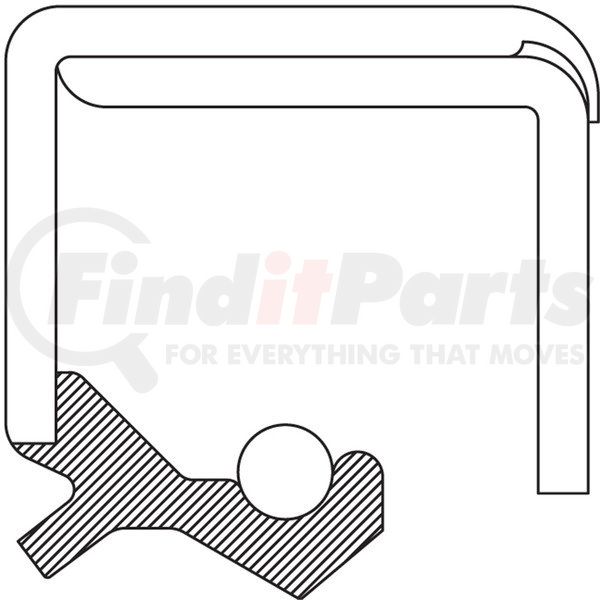

Design type: spring loaded; multi-lip
Tipo de diseno: Carga de resorte; multi-labio
Temperature range: -40degF to 225degF / -40degC to 107degC
Rango de temperatura: -40degF a 225degF / -40degC a 107degC
Good low temperature capability
Buena capacidad a bajas temperaturas
Low swell in hydrocarbon fluids
Baja expansion en fluidos de hidrocarburos
Delivers quality and reliable performance for every type of repair
Ofrece un rendimiento confiable de calidad para cada tipo de reparacion

Product Attributes

Material	Nitrile
Inside Diameter	7.500 IN
Thickness	0.625 IN
Outside Diameter	8.509 IN
Sealing Material	Nitrile
Housing Bore (inch)	8.500 IN
Housing Bore (mm)	215.900 MM
Outside Diameter (inch)	8.509 IN
Outside Diameter (mm)	216.130 MM
Part Description	Oil Seal
Redicoat	Yes
Series	410000
Shaft (inch)	7.500 IN
Shaft (mm)	190.500 MM
Type	41
Unit of Dimension	Inch
Width (inch)	0.625 IN
Width (mm)	15.880 MM

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956120222

Part Interchanges
