NATIONAL SEALS part description

Product Description

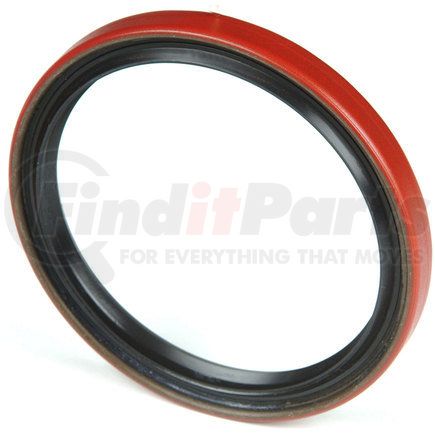

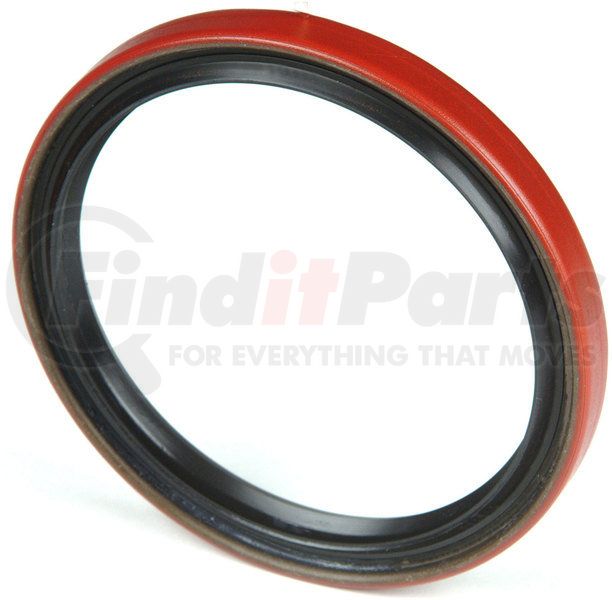

Multi-Purpose Seal

Application Summary

Misc. Boat Trailers FWRW

Features & Benefits

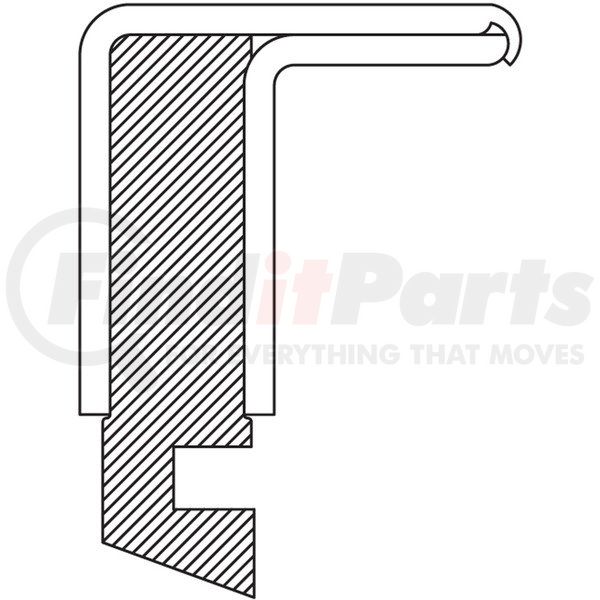

  • Design type: springless; single-lip
  • Tipo de diseño: Sin resorte; un solo labio
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Rango de temperatura: -40°F a 225°F / -40°C a 107°C
  • Good low temperature capability
  • Buena capacidad a bajas temperaturas
  • Low swell in hydrocarbon fluids
  • Baja expansión en fluidos de hidrocarburos
  • Delivers quality and reliable performance for every type of repair
  • Ofrece un rendimiento confiable de calidad para cada tipo de reparación

Product Attributes

Inside Diameter 1.500 IN
Inside Diameter 38.100 MM
Outside Diameter 2.332 IN
Outside Diameter 59.230 MM
Width 0.406 IN
Width 10.310 MM
Material Nitrile
Part Description Oil Seal
Sealing Material Nitrile
Series 203000
Thickness 0.406 IN
Thickness 10.310 MM
Type 203
Unit of Dimension Inch
Housing Bore 2.327 IN
Housing Bore 59.110 MM
Shaft Diameter 1.500 IN
Shaft Diameter 38.100 MM

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
UPC 00724956067718
