MOOG ES80976 Part Description
Manufacturer
Product Description

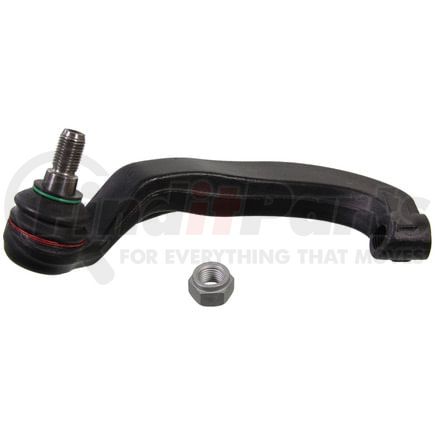

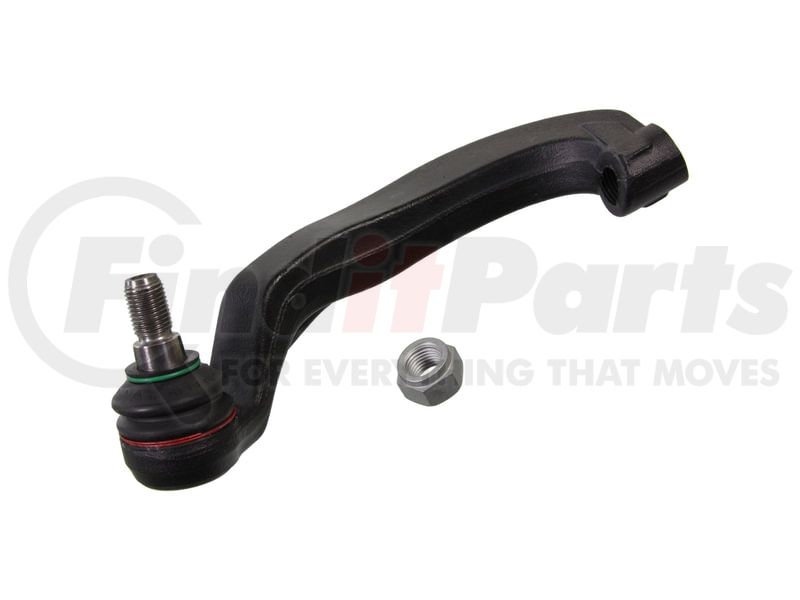

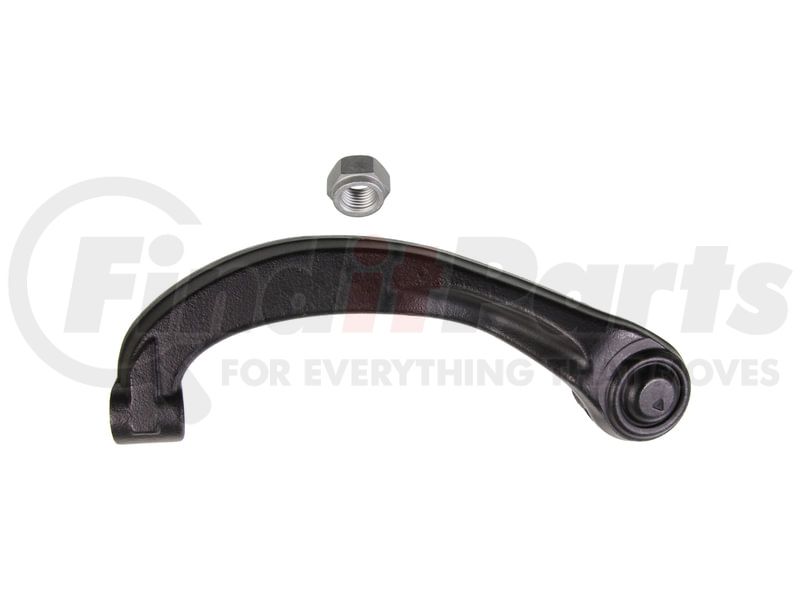

Steering Tie Rod End
Features & Benefits
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Moog Front Steering, Driver Side, Outer Tie Rod End - Direct OE replacement -MOOG TIE ROD END, SOLD INDIVIDUALLY -- A high quality, direct fit OE replacement tie rod end; Designed to consistently produce just the right amount of preload to provide proper steering effort; Features include a forged and heat-treated housing for strength and durability, a premium polychloroprene seal to keep out dirt, and bearings with grease grooves that ensure flow of lubrication throughout the part.Front Steering, Driver Side, Outer
MOOG ES80976 Specifications
Product Attributes
| End 1 Gender | FEMALE |
| End 1 Thread Diameter | 14.0 MM |
| End 1 Thread Pitch | 1.5 MM |
| End 2 Gender | Female |
| Length - Stud Center to End | 7.930 IN |
| Part Description | Steering Tie Rod End |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708949900 |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| UPC | 00080066390604 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES80976 Cross References
| Brand | Part Number |
|---|---|
| 080066390604 | |
| ACDelco | 45A2362 |
| Beck/Arnley | 101-6514 |
| Centric Parts | 612.35022 |
| DELPHI | TA2720 |
| DORMAN | TO28241 |
| Dorman | TO28241XL |
| Import Direct Chassis | ER11032 |
| MAS Industries | TO28241 |
| MEVOTECH | MS10696 |
| Mercedes-Benz | 2203381315 |
| Mevotech | MS10607, MS10697 |
| NAPA | 2693699 |
| NAPA Chassis Parts | 2693699 |
| Raybestos Brakes | 4012362 |
| SUSPENSIA | X31TE7576 |
| TRW | ES80976 |
| TRW Steering and Suspension Parts | ES80976, JTE1097 |
| VAICO | V302627 |
MOOG ES80976 Fits Vehicles
- Mercedes-Benz E300 (2008-2009)
- Mercedes-Benz E550 (2007-2009)
- Mercedes-Benz E350 (2006-2009)
- Mercedes-Benz E500 (2004-2006)
- Mercedes-Benz E320 (2004-2005)
- Mercedes-Benz S500 (2003-2006)
- Mercedes-Benz S430 (2003-2006)
