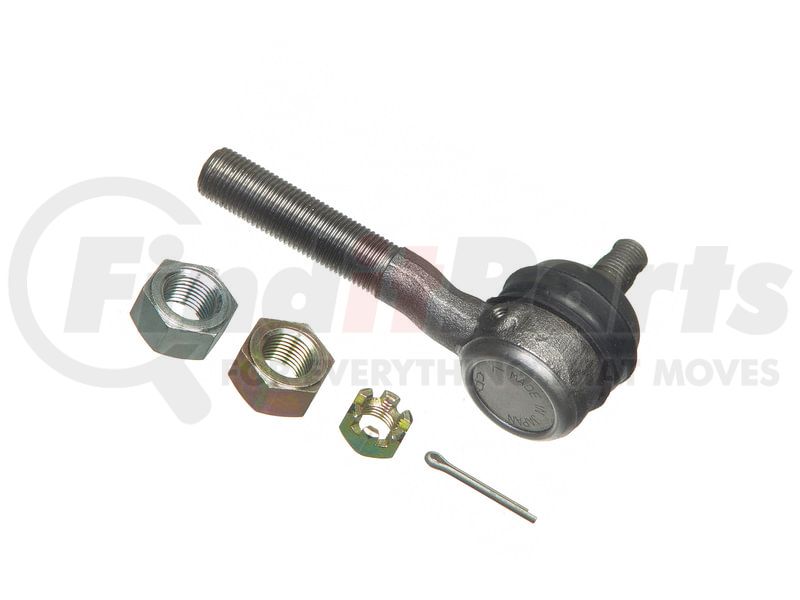

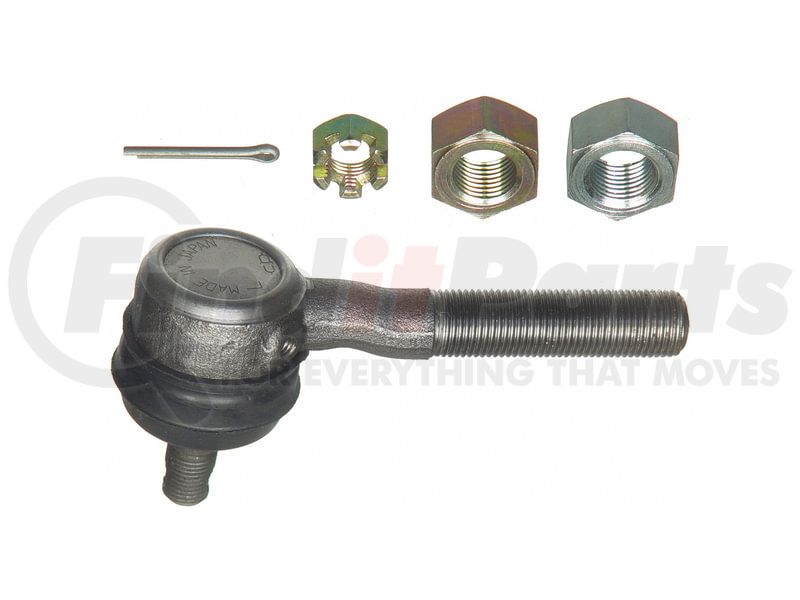

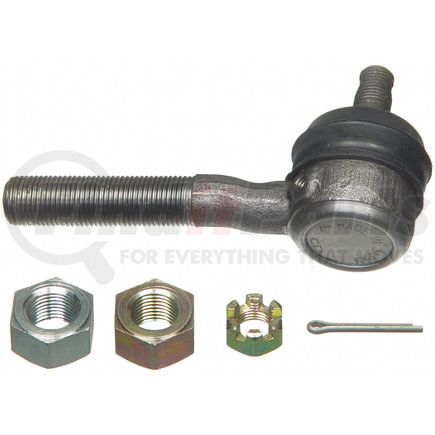

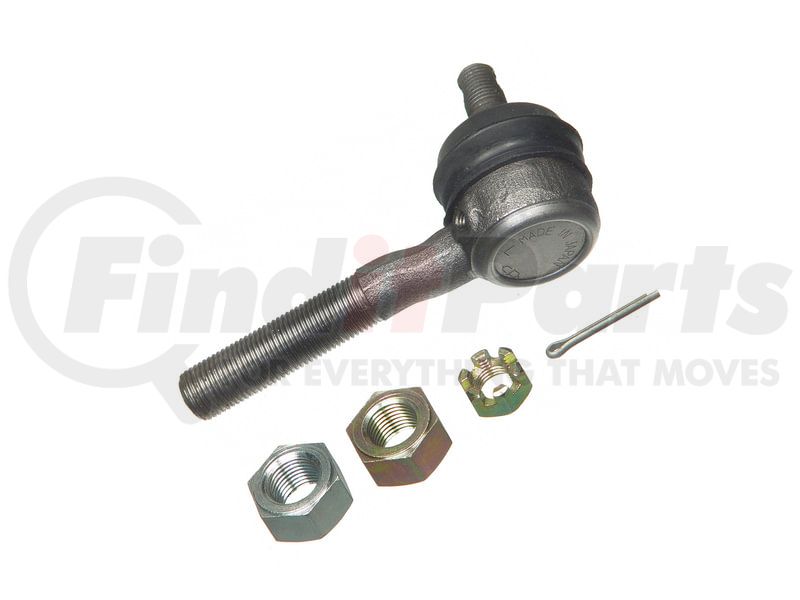

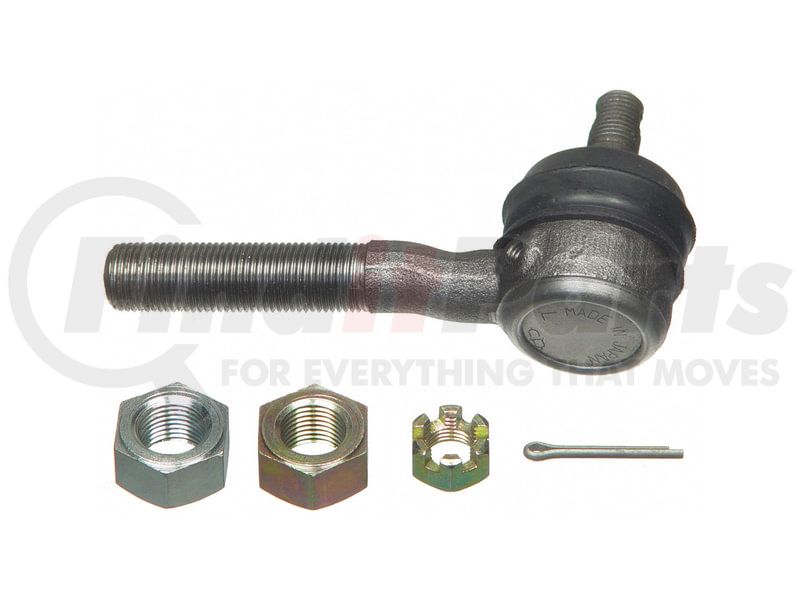

(888) 312-8812 Login SignupMOOG ES3115 MOOG ES3115 Tie Rod End
Tap to view 3 more
$52.96
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG ES3115 Part Description
Manufacturer
Product Description
Tie Rod End
Application Summary
1983-1986 Nissan 720 (Front Left Outer) (Drive: 4WD)
Features & Benefits
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Moog Front Steering, Driver Side, Outer Tie Rod End - Direct OE replacement -MOOG TIE ROD END, OUTER, SOLD INDIVIDUALLY -- A High Quality Direct Fit OEM Replacement Tie Rod End, Designed To Consistently Produce Just The Right Amount Of Preload To Provide Proper Steering Effort, Housing Is Forged Then Heat-Treated For Strength And Durability, Sealed With A Premium Polychloroprene To Keep Out Dirt, Its Bearings Include Grease Grooves That Ensure Flow Of Lubrication Throughout The PartFront Steering, Driver Side, Outer
MOOG ES3115 Specifications
Product Attributes
| End 1 Gender | Male |
| End 2 Gender | Male |
| Type | Straight |
| End 2 Thread Diameter | 12.0 MM |
| End 1 Thread Direction | Counterclockwise |
| End 2 Thread Pitch | 1.3 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.250 IN |
| End 1 Thread Diameter | 16.0 MM |
| End 1 Gender | MALE |
| Type | STRAIGHT |
| Part Description | Steering Tie Rod End |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Remanufactured Part | N |
| Refurbished Part | N |
| UPC | 00080066408347 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES3115 Cross References
| Brand | Part Number |
|---|---|
| 080066408347 | |
| ACDelco | 45A0416 |
| Autospecialty | 03-51047, 351047 |
| Beck/Arnley | 101-4002, 101-4430 |
| Centric Parts | 612.42091 |
| Coni-Seal | XES3115 |
| DELPHI | TA5381 |
| DORMAN | T3115, T3115PR |
| Datsun/Nissan | 48630-50W00, 48640-50W00 |
| Dorman | 531-007 |
| Duralast | ES3115 |
| Duralast Gold | DG4011416 |
| Euclid | E6667, E8780 |
| Import Direct Chassis | ER07003 |
| Lazorlite | L85-2546 |
| MAS Industries | T3115 |
| Mcquay-Norris | ES3115 |
| Mevotech | MES3115, PES3115 |
| Mevotech Original Grade | GES3115 |
| Mevotech Supreme | MES3115 |
| NAPA | 269-2722 |
| NAPA Chassis Parts | 269-2722 |
| Perfect Circle | 269-2722 |
| Raybestos Brakes | 401-1416 |
| Repco | 103-24035 |
| Sealed Power | 802-2341A, 802-2342A, 8022386A |
| TRW | ES3115, ES2342A1 |
| TRW Steering and Suspension Parts | ES2342A1, ES3115 |
MOOG ES3115 Fits Vehicles
- Nissan 720 (1983-1986)
MOOG ES3115 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG ES3115 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
