(888) 312-8812 Login SignupMOOG ES2200L MOOG ES2200L Tie Rod End
Tap to view 3 more
$324.51
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG ES2200L Part Description
Manufacturer
Product Description

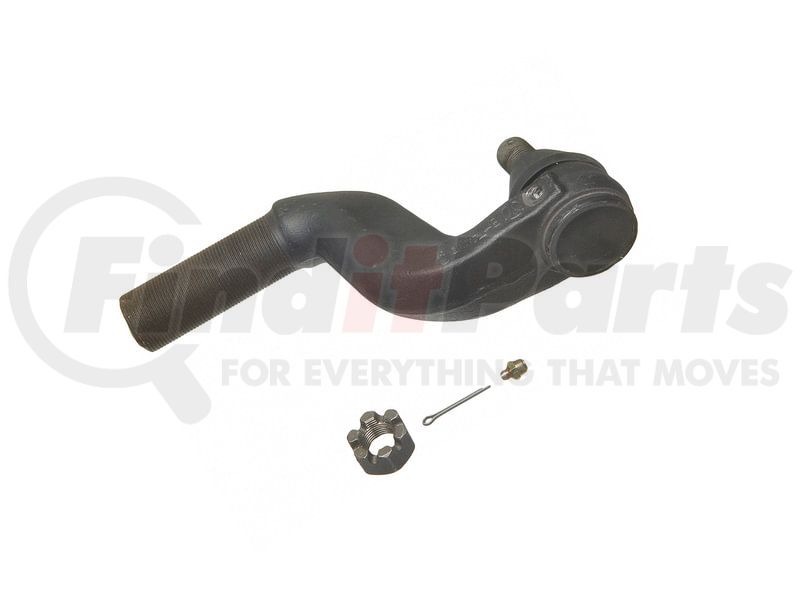

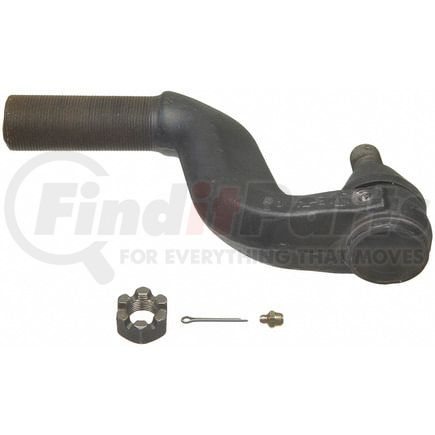

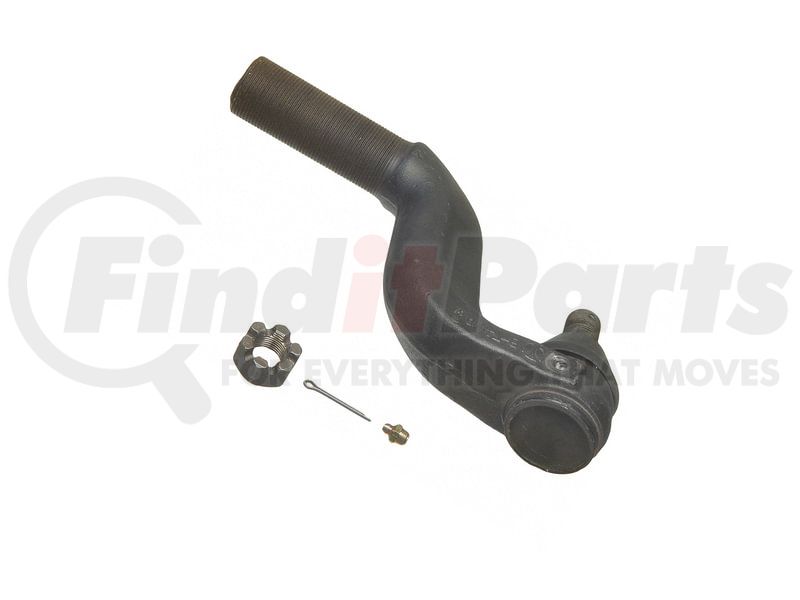

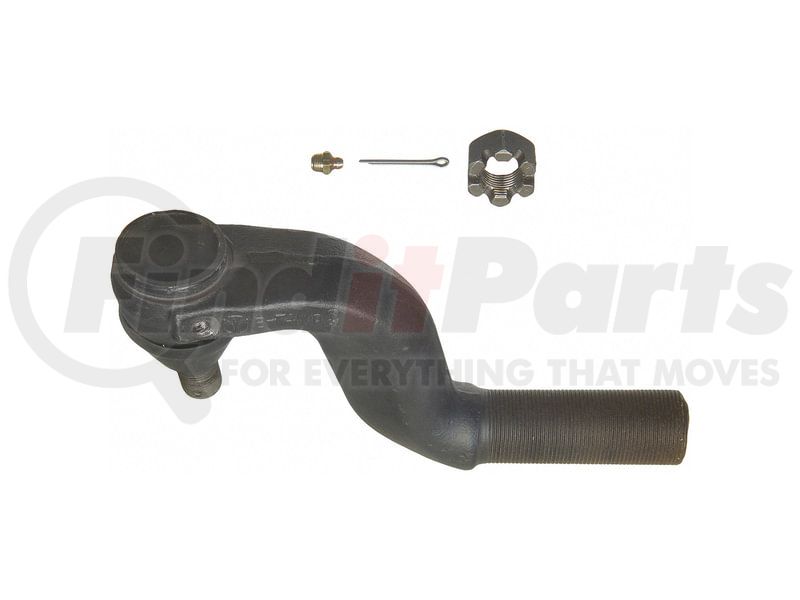

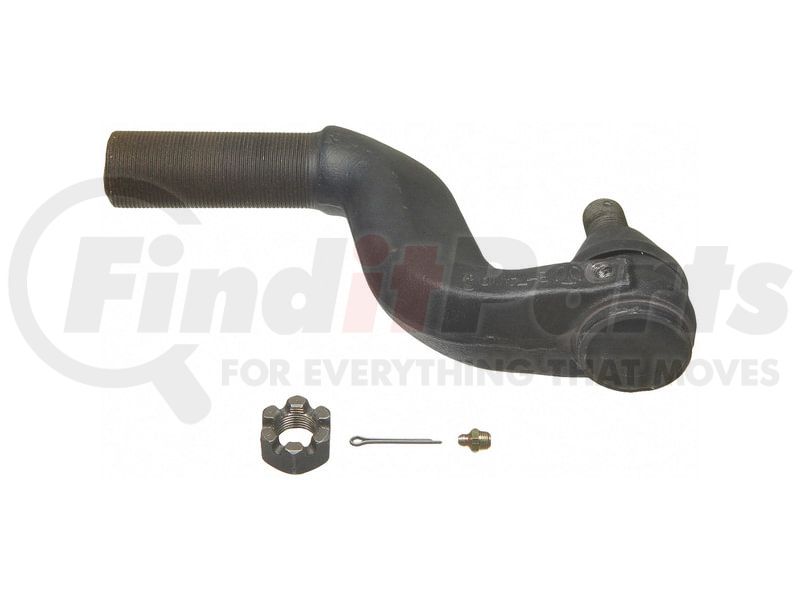

Tie Rod End
Application Summary
1983 GMC Astro (Front Left) (Qualifier: with 1.625 (in) x 12 Threads, FF971 Non-Driving Steering 12,000 (lb) Rockwell Axle, 10.50 (in) Length); 1965-1980 Peterbilt 282 (Front Left) (Qualifier: with 1.625 (in) x 12 Threads, FE970 Non-Driving Steering 12,000 (lb) Rockwell Axle, 10.50 (in) Length, with CENTER POINT Steering, FE971 Non-Driving Steering 12,000 (lb) Rockwell Axle); 2002-2012 International 4300 (Front Left Outer) (Qualifier: FA234 Non-Driving Steering 12,000 (lb) NAVISTAR Axle, 10.50 (in) Length, FA112 Non-Driving Steering 11,000 (lb) Navistar Axle); 2002-2007 International 4200 (Front Left Outer) (Qualifier: FA112 Non-Driving Steering 11,000 (lb) Navistar Axle, 10.50 (in) Length, FA234 Non-Driving Steering 12,000 (lb) NAVISTAR Axle); 1981-1988 International CO9670 (Front Left Outer, Front Left) (Qualifier: FA234 Non-Driving Steering 12,000 (lb) NAVISTAR Axle, 10.50 (in) Length, with 1.625 (in) x 12 Threads, with CENTER POINT Steering); 1981-1988 International COF9670 (Front Left Outer, Front Left, Rear Left Outer) (Qualifier: FA234 Non-Driving Steering 12,000 (lb) NAVISTAR Axle, 10.50 (in) Length, with 1.625 (in) x 12 Threads, with CENTER POINT Steering)
Features & Benefits
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Tie Rod End
MOOG ES2200L Specifications
Product Attributes
| End 1 Gender | Male |
| End 2 Gender | Male |
| Type | Bent |
| Greaseable | Yes |
| Length - Stud Center to End | 10.500 IN |
| End 1 Gender | MALE |
| Type | BENT |
| Part Description | Steering Tie Rod End |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Remanufactured Part | N |
| Refurbished Part | N |
| UPC | 00080066315485 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES2200L Cross References
| Brand | Part Number |
|---|---|
| 080066315485 | |
| ACDelco | 45A0400 |
| Brockway | R230074 |
| DORMAN | 538-221 |
| Dana Commercial Vehicle Service Parts | 269-2703 |
| Dayton Parts | 310313 |
| Duralast Gold | DG4011400 |
| Euclid | E-6847-TU, E6847 |
| Flagg Suspension Parts | ES2200L |
| Fleetrite | FTR2200L |
| Freightliner | R230074 |
| General Motors | 2055523, A3144M533 |
| International Harvester (IHC) | FTR2200L, 577682C91, 894049R93 |
| Kenworth | A23144M273, A3144M533 |
| Marmon | A3144M533, A23144M273 |
| NAPA | 269-2703 |
| NAPA Chassis Parts | 269-2703 |
| Navistar | 577682C91, 894049R93, FTR2200L |
| Peterbilt | A23144M273, A3144M533 |
| Raybestos Brakes | 401-1400 |
| Rockwell International | A23144M273, A3144M273, A3144M533, R230074 |
| Sealed Power | 8022200L |
| TRW | ES2200L, L24SV6050A12, L24SV5750B12, L24SV5750B11, L24SV5750A14 |
| TRW Steering and Suspension Parts | ES2200L, L24SV5750A14, L24SV5750B11, L24SV5750B12, L24SV6050A12 |
| White Truck | R230074, A23144M273, A3144M533 |
MOOG ES2200L Fits Vehicles
- Peterbilt 282 (1965-1980)
- International COF9670 (1981-1988)
- International CO9670 (1981-1988)
- International 4200 (2002-2007)
- International 4300 (2002-2012)
- GMC Astro (1983)
MOOG ES2200L Customer Reviews
No reviews yet
Be the first to review this product!
MOOG ES2200L Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
MOOG ES2200L Questions & Answers
No questions yet
Be the first to ask a question about this product!
