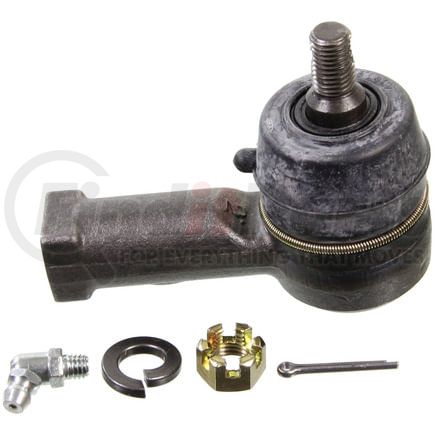

MOOG ES2171R Part Description
Manufacturer
Product Description
Steering Tie Rod End
Application Summary
1986-1987 Hyundai Stellar (Outer) (Qualifier: From 12/2/86); 1986-1994 Hyundai Excel (Outer); 1991-1995 Hyundai Scoupe (Outer); 1979-1984 Dodge Colt DL E (Outer) (Drive: FWD); 1983-1984 Plymouth Colt DL E (Outer); 1979-1982 Plymouth Champ (Outer); 1987-1994 Mitsubishi Precis (Outer)
Features & Benefits
- Designed for OE fit and function
- Loose or worn chassis parts can lead to premature tire wear
- Premium boot keeps out contaminants
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Made of forged alloy steel for durability
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Replacement helps restore vehicle handling
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Moog Front Steering, Outer Tie Rod End - Direct OE replacement -MOOG TIE ROD END, OUTER, SOLD INDIVIDUALLY -- A High Quality Direct Fit OEM Replacement Tie Rod End, Designed To Consistently Produce Just The Right Amount Of Preload To Provide Proper Steering Effort, Housing Is Forged Then Heat-Treated For Strength And Durability, Sealed With A Premium Polychloroprene To Keep Out Dirt, Its Bearings Include Grease Grooves That Ensure Flow Of Lubrication Throughout The PartFront Steering, Outer
MOOG ES2171R Specifications
Product Attributes
| End 1 Gender | Female |
| End 2 Gender | Female |
| Dust Boot Included | Yes |
| Type | Straight |
| End 2 Thread Diameter | 10.0 MM |
| Greaseable | Yes |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.3 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.760 IN |
| End 1 Thread Diameter | 14.0 MM |
| End 1 Gender | FEMALE |
| Type | STRAIGHT |
| Part Description | Steering Tie Rod End |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Refurbished Part | N |
| Remanufactured Part | N |
| UPC | 00080066146553 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES2171R Cross References
| Brand | Part Number |
|---|---|
| 080066146553 | |
| ACDelco | 45A0255, 46A0255A |
| Autospecialty | 03-52000, 0352000E, 352000 |
| BAP Geon | 4000303 |
| Beck/Arnley | 101-2723, 1013681 |
| Centric Parts | 612.63058, 61363058 |
| Chrysler | MB166426, MB185441, MB315629, MB006314, MT142181, MB076531, MB006358 |
| Coni-Seal | XES2171R |
| DELPHI | TA1146, TA1193 |
| DORMAN | T2171, T2171PR |
| Dorman | 534-331 |
| Duralast | ES2171R |
| Duralast Gold | DG4011255 |
| Falcon Steering Systems | ES2171R |
| Firestone | ES2171R |
| Hyundai | 56820-21100, 5682021110 |
| ITM Engine Components | 40-00303, 40-00800 |
| Lazorlite | L85-1043 |
| MAS Industries | T2171 |
| Maremont | TR0135, TR2171R |
| Mcquay-Norris | ES2171R |
| Mevotech | MES2171R |
| Mevotech Supreme | MES2171R |
| Midas | TR1107 |
| Mitsubishi | 56820-21100 |
| NAPA | ES2171R, 269-2524 |
| NAPA Chassis Parts | 269-2524, ES2171R |
| Parts Master | ES2171R |
| Perfect Circle | 269-2524 |
| Quinton Hazell | QR1718S, QR1988S, QR2818S |
| Raybestos Brakes | 401-1255B, 401-1255 |
| Repco | 103-00303 |
| SUSPENSIA | X18TE1682 |
| Sealed Power | 802-2171R, 802-2818 |
| TRW | ES2171R |
| TRW Steering and Suspension Parts | JTE502, ES2171R, ES2818 |
| Vera | 60-00269, 60-03179, 60-04549, 60-08306 |
| Xactfit | 4011255B |
MOOG ES2171R Fits Vehicles
- Hyundai Stellar (1986-1987)
- Mitsubishi Precis (1987-1994)
- Plymouth Colt (1983-1984)
- Plymouth Champ (1979-1982)
- Dodge Colt (1979-1984)
- Hyundai Scoupe (1991-1995)
- Hyundai Excel (1986-1994)
MOOG ES2171R Customer Reviews
No reviews yet
Be the first to review this product!
MOOG ES2171R Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
