(888) 312-8812 Login SignupMOOG CC882 MOOG CC882 Coil Spring Set
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

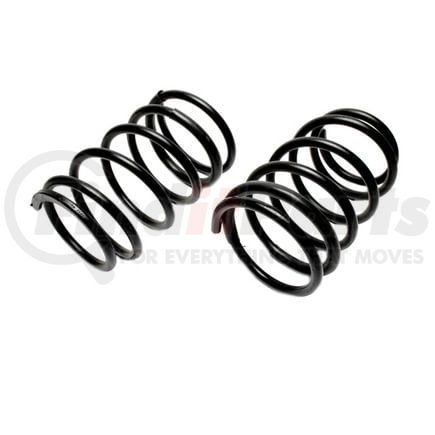

MOOG CC882 Part Description
Manufacturer
Product Description
Coil Spring Set
Application Summary
1991-1996 Ford Escort LX LX Sport Base (Front) (Doors: 4, 2 & Body: Hatchback, Wagon, Sedan & Transmission Base Type: Transaxle & Transmission Control Type: Automatic / Qualifier: with Air Conditioning, Variable Rate, without Air Conditioning); 1991-1996 Mercury Tracer (Front) (Transmission Base Type: Transaxle & Transmission Control Type: Manual, Automatic / Qualifier: with Air Conditioning, Variable Rate); 1991-1998 Mazda Protege (Front) (Transmission Base Type: Transaxle & Transmission Control Type: Automatic / Qualifier: with Air Conditioning, Variable Rate, without Air Conditioning)
Features & Benefits
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
Moog Front Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Variable Rate Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Change Resistance When Compressing, Become Progressively Stiffer As Its Load Increases, Use A Premium Urethane Tube That Lasts Much Longer, Vinyl-Coated For Corrosion Resistance And Extended Service LifeFront
MOOG CC882 Specifications
Product Attributes
| Wire Diameter | 0.59 IN |
| Wire Diameter | 15.10 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 6.830 IN |
| Front Spring Relaxed Length | 11.25 IN |
| Front Spring Relaxed Length | 285.80 MM |
| Front Spring Compressed Length | 7.00 IN |
| Front Spring Compressed Length | 177.80 MM |
| Rear Spring Relaxed Length | 11.25 IN |
| Rear Spring Relaxed Length | 285.80 MM |
| Rear Spring Compressed Length | 7.00 IN |
| Rear Spring Compressed Length | 177.80 MM |
| Rear Spring Outside Diameter | 6.830 IN |
| Bar Diameter (in.) | 0.59 |
| Bar Diameter (mm) | 15.1 |
| End Type 1 | Tangential |
| End Type 2 | Pigtail |
| Free Height (in.) | 11.25 |
| Free Height (mm) | 285.8 |
| ID (in.) | 5.65 |
| ID (MM) | 143.5 |
| Installation Height (in.) | 7 |
| Installation Height (mm) | 177.8 |
| Load (lbs) | 690 |
| Spring Rate (lbs Per in.) | 156 |
| Spring Type | Variable Rate |
| Bar Diameter - Inches | 0.59 |
| Bar Diameter - MM | 15.10 |
| End 1 Type | Tangential |
| End 2 Type | Pigtail |
| Free Height - Inches | 11.25 |
| Free Height - MM | 285.80 |
| ID - Inches | 5.65 |
| ID - MM | 143.50 |
| Installation Height - Inches | 7.00 |
| Installation Height - MM | 177.80 |
| Load - lbs | 690.00 |
| Part Description | Coil Spring Set |
| Spring Rate - lbs per inch | 156.00 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| Refurbished Part | N |
| UPC | 00080066416823 |
| VMRS Code | 016002002 |
| UNSPSC | 31161903 |
MOOG CC882 Cross References
| Brand | Part Number |
|---|---|
| 080066416823 | |
| ACDelco | 45H1120 |
| Centric Parts | 630.61072 |
| DORMAN | 566-377 |
| Duralast | FCS882V |
| Duralast Gold | DG5871120 |
| Ford | F1CZ-5310D |
| Mcquay-Norris | FCS882V |
| Mevotech | SMS882V |
| Mevotech Supreme | SMS882V |
| NAPA | 277-5382 |
| NAPA Chassis Parts | 277-5382 |
| Pontotoc | U882PV |
| Raybestos Brakes | 587-1120 |
| TRW | CC882 |
| TRW Steering and Suspension Parts | CC882 |
MOOG CC882 Fits Vehicles
- Mazda Protege (1991-1998)
- Mercury Tracer (1991-1996)
- Ford Escort (1991-1996)
