MOOG CC855 Part Description
Manufacturer
Product Description

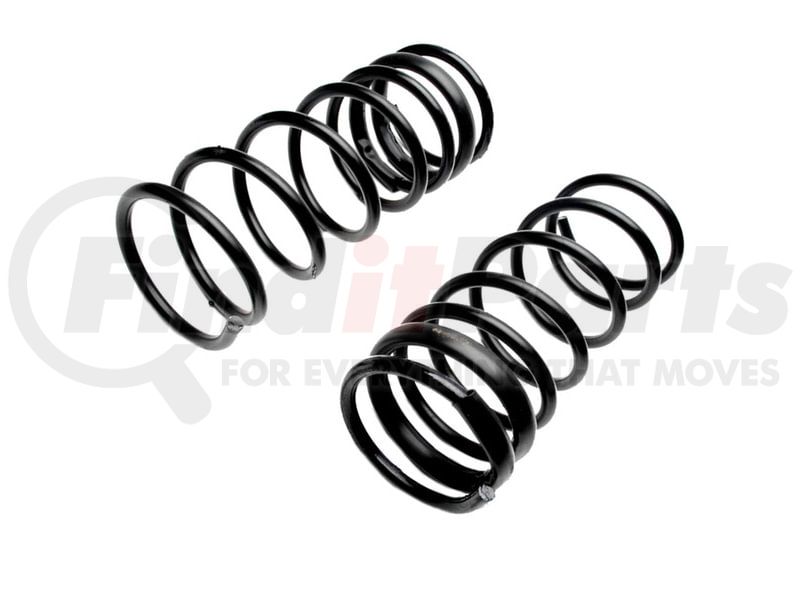

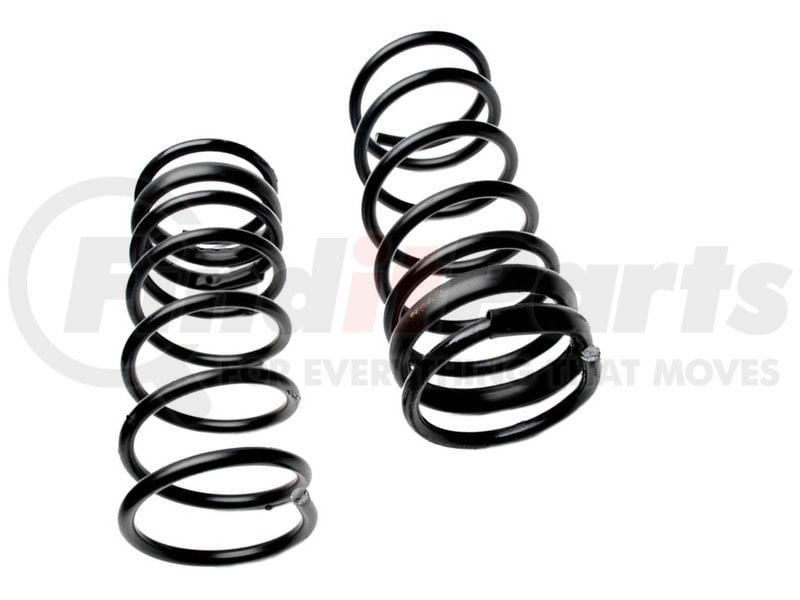

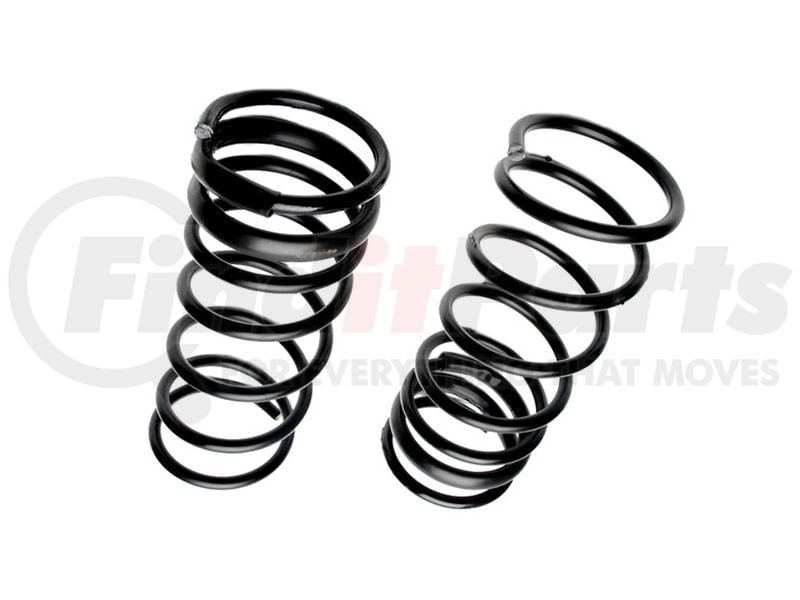

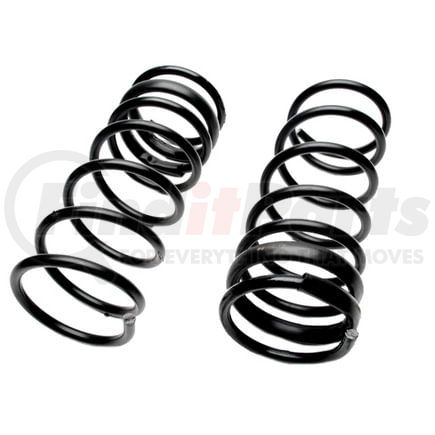

Coil Spring Set
Features & Benefits
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
Moog Rear Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Variable Rate Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Change Resistance When Compressing, Become Progressively Stiffer As Its Load Increases, Use A Premium Urethane Tube That Lasts Much Longer, Vinyl-Coated For Corrosion Resistance And Extended Service LifeRear
MOOG CC855 Specifications
Product Attributes
| Wire Diameter | 0.50 IN |
| Wire Diameter | 12.70 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 5.480 IN |
| Front Spring Relaxed Length | 13.95 IN |
| Front Spring Relaxed Length | 354.30 MM |
| Front Spring Compressed Length | 11.00 IN |
| Front Spring Compressed Length | 279.40 MM |
| Rear Spring Relaxed Length | 13.95 IN |
| Rear Spring Relaxed Length | 354.30 MM |
| Rear Spring Compressed Length | 11.00 IN |
| Rear Spring Compressed Length | 279.40 MM |
| Rear Spring Outside Diameter | 5.480 IN |
| Bar Diameter (in.) | 0.5 |
| Bar Diameter (mm) | 12.7 |
| End Type 1 | Squared |
| End Type 2 | Tangential |
| Free Height (in.) | 13.95 |
| Free Height (mm) | 354.3 |
| ID (in.) | 4.48 |
| ID (MM) | 113.8 |
| Installation Height (in.) | 11 |
| Installation Height (mm) | 279.4 |
| Load (lbs) | 324 |
| Spring Rate (lbs Per in.) | 113 |
| Spring Type | Variable Rate |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| UPC | 00080066196831 |
MOOG CC855 Cross References
MOOG CC855 Fits Vehicles
- Mercury Tracer (1991-1996)
- Ford Escort (1991-1996)
