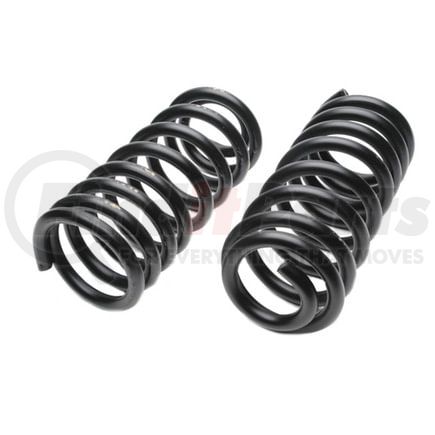

MOOG CC823 Part Description
Manufacturer
Product Description
Coil Spring Set
Application Summary
Ford: Fairmont (1978-1981), Granada (1982), LTD (1983-1986), Thunderbird (1980-1988); Lincoln: Continental (1982-1983); Mercury: Cougar (1980-1988), Marquis (1983-1986), Zephyr (1978-1981)
Moog Rear Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Variable Rate Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Change Resistance When Compressing, Become Progressively Stiffer As Its Load Increases, Use A Premium Urethane Tube That Lasts Much Longer, Vinyl-Coated For Corrosion Resistance And Extended Service LifeRear
MOOG CC823 Specifications
Product Attributes
| Wire Diameter | 0.65 IN |
| Wire Diameter | 16.70 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 5.310 IN |
| Front Spring Relaxed Length | 12.63 IN |
| Front Spring Relaxed Length | 320.80 MM |
| Front Spring Compressed Length | 10.25 IN |
| Front Spring Compressed Length | 260.40 MM |
| Rear Spring Relaxed Length | 12.63 IN |
| Rear Spring Relaxed Length | 320.80 MM |
| Rear Spring Compressed Length | 10.25 IN |
| Rear Spring Compressed Length | 260.40 MM |
| Rear Spring Outside Diameter | 5.310 IN |
| Bar Diameter (in.) | 0.65 |
| Bar Diameter (mm) | 16.7 |
| End Type 1 | Squared |
| End Type 2 | Pigtail |
| Free Height (in.) | 12.63 |
| Free Height (mm) | 320.8 |
| ID (in.) | 4.01 |
| ID (MM) | 101.9 |
| Installation Height (in.) | 10.25 |
| Installation Height (mm) | 260.4 |
| Load (lbs) | 808 |
| Spring Rate (lbs Per in.) | 340 |
| Spring Type | Variable Rate |
| Bar Diameter - Inches | 0.65 |
| Bar Diameter - MM | 16.70 |
| End 1 Type | Squared |
| End 2 Type | Pigtail |
| Free Height - Inches | 12.63 |
| Free Height - MM | 320.80 |
| ID - Inches | 4.01 |
| ID - MM | 101.90 |
| Installation Height - Inches | 10.25 |
| Installation Height - MM | 260.40 |
| Load - lbs | 808.00 |
| Part Description | Coil Spring Set |
| Spring Rate - lbs per inch | 340.00 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| Refurbished Part | N |
| UPC | 00080066146713 |
| VMRS Code | 016002002 |
| UNSPSC | 31161903 |
MOOG CC823 Cross References
| Brand | Part Number |
|---|---|
| 42942110 | |
| ACDelco | 45H3016 |
| Centric Parts | 630.65038 |
| Duralast | RCS823V |
| Maremont | 91-0823 |
| Mcquay-Norris | RCS823V |
| Mevotech | SMS823V |
| Mevotech Supreme | SMS823V |
| Monroe Shocks & Struts | 64016, U823PV |
| NAPA | 277-5176 |
| NAPA Chassis Parts | 277-5176 |
| Perfect Circle | 277-5176 |
| Pontotoc | U823PV |
| Raybestos Brakes | 591-1016 |
| Roadmates | 110153 |
| Sealed Power | 832-823 |
| TRW | CC823 |
