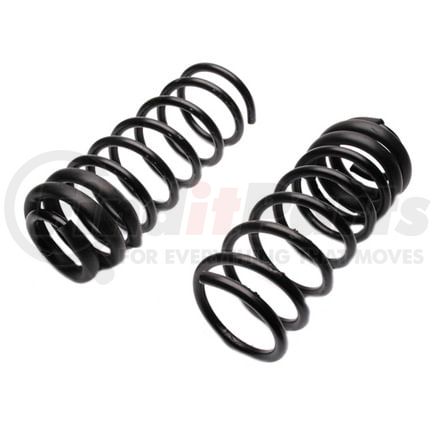

Name: Moog CC679 Coil Spring Set
SKU: cc679
Price: 53.99 USD
Availability: InStock

MOOG part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Coil Springs: Variable Rate

Product Description

Coil Spring Set

Application Summary

Saturn: SW1 (1993-2001)

Product Attributes

Wire Diameter	0.53 IN
Wire Diameter	13.50 MM
Spring Color	Black
Front Spring Outside Diameter	5.190 IN
Front Spring Relaxed Length	13.88 IN
Front Spring Relaxed Length	352.60 MM
Front Spring Compressed Length	11.00 IN
Front Spring Compressed Length	279.40 MM
Rear Spring Relaxed Length	13.88 IN
Rear Spring Relaxed Length	352.60 MM
Rear Spring Compressed Length	11.00 IN
Rear Spring Compressed Length	279.40 MM
Rear Spring Outside Diameter	5.190 IN
Bar Diameter (in.)	0.53
Bar Diameter (mm)	13.5
End Type 1	Tangential
End Type 2	Pigtail
Free Height (in.)	13.88
Free Height (mm)	352.6
ID (in.)	4.13
ID (MM)	105
Installation Height (in.)	11
Installation Height (mm)	279.4
Load (lbs)	426
Spring Rate (lbs Per in.)	147
Spring Type	Variable Rate

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708806590
Harmonized Tariff Code (HTS)	8708806590
Remanufactured Part	N
UPC	00080066441726

Part Interchanges

MOOG CC679 Cross Reference

We have 1 alternatives for the CC679 by MOOG:

080066441726
