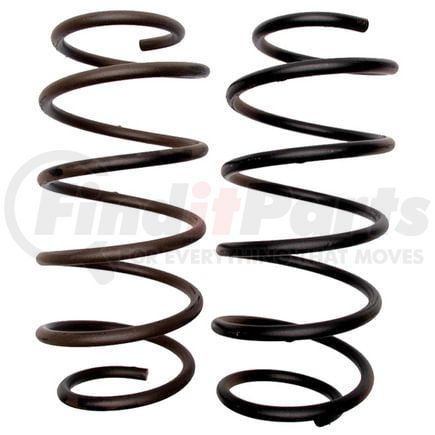

(888) 312-8812 Login SignupMOOG CC674 MOOG CC674 Coil Spring Set
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG CC674 Part Description
Manufacturer
Product Description
Coil Spring Set
Application Summary
1997-2003 Pontiac Grand Prix SE (Front) (Doors: 4 & Body: Sedan & Liter: 3.1 & Transmission Base Type: Transaxle & Transmission Control Type: Automatic / Qualifier: Variable Rate)
Features & Benefits
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
Moog Front Coil Springs OE comparable -Coil Spring , Front, High Quality Original Equipment Replacement, Sold In PairsFront
MOOG CC674 Specifications
Product Attributes
| Wire Diameter | 0.56 IN |
| Wire Diameter | 14.30 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 6.830 IN |
| Front Spring Relaxed Length | 14.94 IN |
| Front Spring Relaxed Length | 379.50 MM |
| Front Spring Compressed Length | 9.00 IN |
| Front Spring Compressed Length | 228.60 MM |
| Rear Spring Relaxed Length | 14.94 IN |
| Rear Spring Relaxed Length | 379.50 MM |
| Rear Spring Compressed Length | 9.00 IN |
| Rear Spring Compressed Length | 228.60 MM |
| Rear Spring Outside Diameter | 6.830 IN |
| Bar Diameter (in.) | 0.56 |
| Bar Diameter (mm) | 14.3 |
| End Type 1 | Pigtail |
| End Type 2 | Pigtail |
| Free Height (in.) | 14.94 |
| Free Height (mm) | 379.5 |
| ID (in.) | 5.71 |
| ID (MM) | 145.1 |
| Installation Height (in.) | 9 |
| Installation Height (mm) | 228.6 |
| Load (lbs) | 683 |
| Spring Rate (lbs Per in.) | 115 |
| Spring Type | Variable Rate |
| Bar Diameter - Inches | 0.56 |
| Bar Diameter - MM | 14.30 |
| End 1 Type | Pigtail |
| End 2 Type | Pigtail |
| Free Height - Inches | 14.94 |
| Free Height - MM | 379.50 |
| ID - Inches | 5.71 |
| ID - MM | 145.10 |
| Installation Height - Inches | 9.00 |
| Installation Height - MM | 228.60 |
| Load - lbs | 683.00 |
| Part Description | Coil Spring Set |
| Spring Rate - lbs per inch | 115.00 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| Refurbished Part | N |
| UPC | 00080066323343 |
| VMRS Code | 016002002 |
| UNSPSC | 31161903 |
MOOG CC674 Cross References
MOOG CC674 Fits Vehicles
- Pontiac Grand Prix (1997-2003)
MOOG CC674 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG CC674 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
MOOG CC674 Questions & Answers
No questions yet
Be the first to ask a question about this product!
