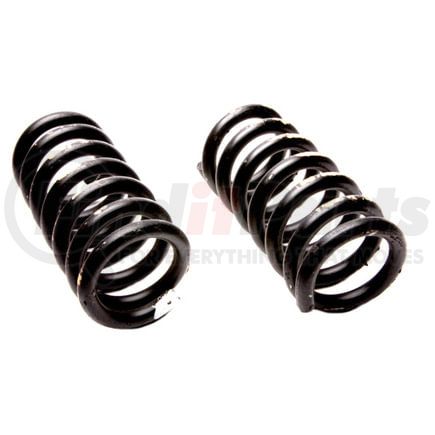

MOOG 7172S Part Description
Manufacturer
Product Description
Coil Spring Set
Application Summary
Dodge: Ram D100 (1971-1980, 1983-1989), Ram D150 (1974-1993), Ram D200 (1971-1980), Ram D250 (1981-1993), Ram D350 (1982-1993), Ram Van B100 (1971-1978), Ram Van B200 (1971-1978), Ram Van B300 (1971-1980), Ram Wagon B100 (1971-1978), Ram Wagon B200 (1971 (More)
Features & Benefits
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
Moog Front Coil Springs OE comparable -Coil Spring , Front, High Quality Original Equipment Replacement, Sold In PairsFront
MOOG 7172S Specifications
Product Attributes
| Wire Diameter | 0.84 IN |
| Wire Diameter | 21.40 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 5.660 IN |
| Front Spring Relaxed Length | 12.91 IN |
| Front Spring Relaxed Length | 327.90 MM |
| Front Spring Compressed Length | 11.00 IN |
| Front Spring Compressed Length | 279.40 MM |
| Rear Spring Relaxed Length | 12.91 IN |
| Rear Spring Relaxed Length | 327.90 MM |
| Rear Spring Compressed Length | 11.00 IN |
| Rear Spring Compressed Length | 279.40 MM |
| Rear Spring Outside Diameter | 5.660 IN |
| Bar Diameter (in.) | 0.84 |
| Bar Diameter (mm) | 21.4 |
| End Type 1 | Squared |
| End Type 2 | Tangential |
| Free Height (in.) | 12.91 |
| Free Height (mm) | 327.9 |
| ID (in.) | 4 |
| ID (MM) | 101.6 |
| Installation Height (in.) | 11 |
| Installation Height (mm) | 279.4 |
| Load (lbs) | 2026 |
| Spring Rate (lbs Per in.) | 1067 |
| Spring Type | Constant Rate |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| UPC | 00080066318936 |
MOOG 7172S Cross References
MOOG 7172S Customer Reviews
No reviews yet
Be the first to review this product!
MOOG 7172S Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
