(888) 312-8812 Login SignupMOOG 5556 Suspension Shock Absorber
Tap to view 3 more
$382.34
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG 5556 Part Description
Manufacturer
Product Description
Shock Absorber
Application Summary
2014-2017 Mazda 6 (Rear) (Qualifier: Built from 5/13/2013); 2019-2021 Mazda CX-5 (Rear)
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

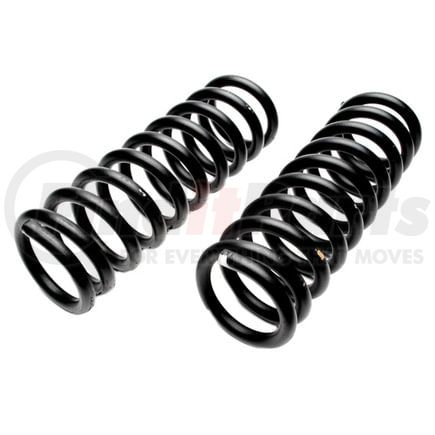

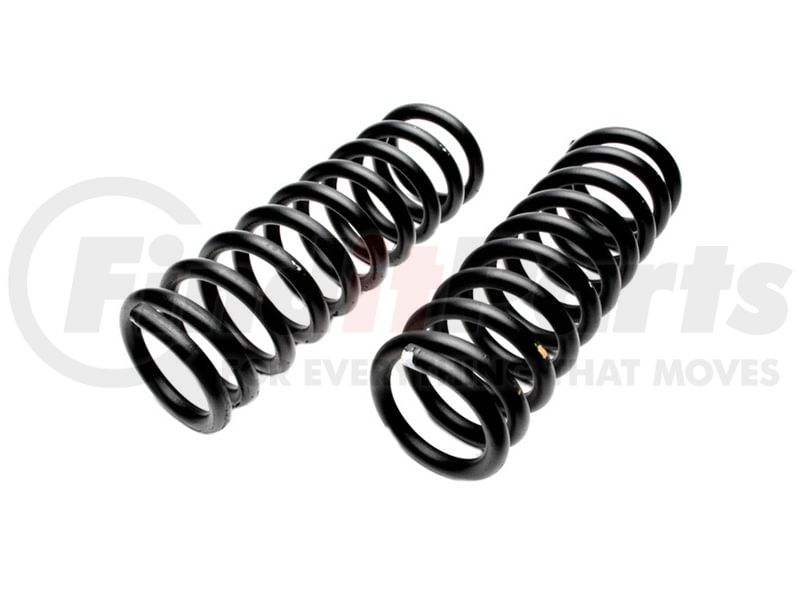

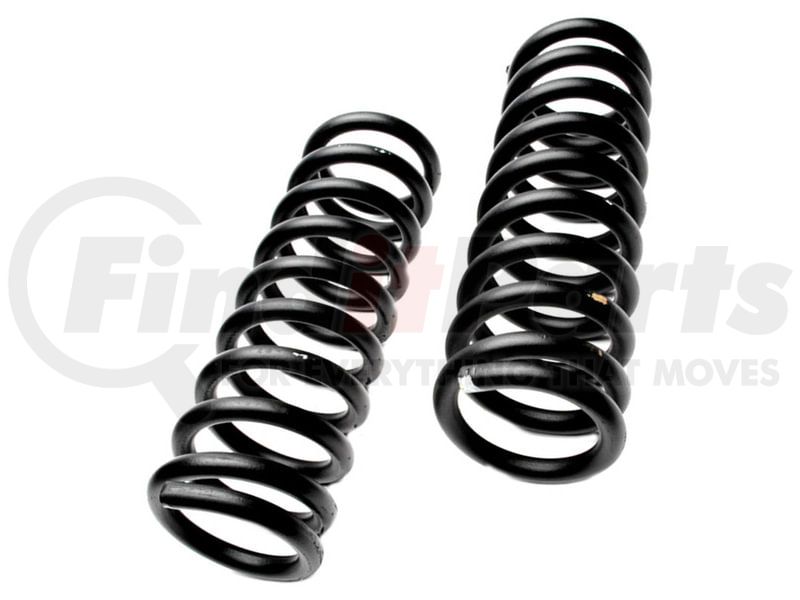

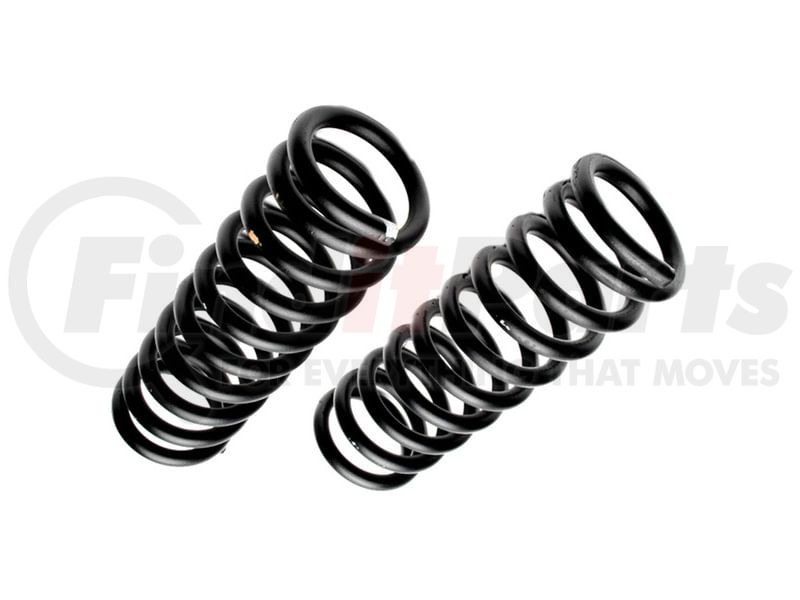

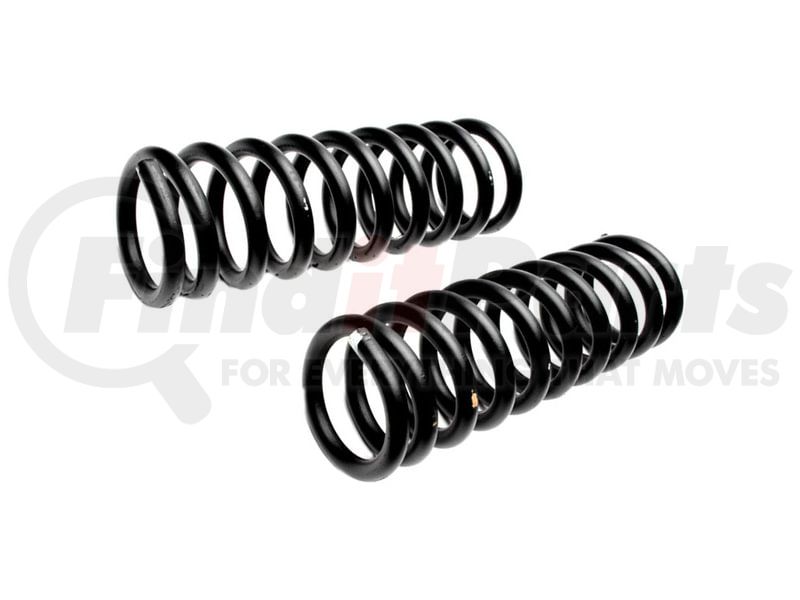

Moog Front Coil Springs OE comparable -Coil Spring , Front, High Quality Original Equipment Replacement, Sold In PairsFront
MOOG 5556 Specifications
Product Attributes
| Compressed Length | 16.38 IN |
| Travel Length | 9.09 in |
| Extended Length | 25.47 in |
| Shock Absorber Rod End Measuring Point | End of Shoulder |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Body Diameter | 1.75 IN |
| Dust Shield Included | No |
| Upper Mount Code | S8 |
| Lower Mount Code | LS91 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.3/4" Sleeve OAL |
| Part Description | Shock Absorber |
| Parts Pack(s) | P01682 |
| Upper Mount Type | Stem Mount - 1" Stem Length X M8 Thread Pitch |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00080066117607 |
| VMRS Code | 016002002 |
| UNSPSC | 31161903 |
MOOG 5556 Cross References
| Brand | Part Number |
|---|---|
| 080066117607 | |
| ACDelco | 45H0165 |
| AutoZone | DG5851165, FCS5556S |
| Centric Parts | 630.62067 |
| Duralast | FCS5556S |
| FCS | 346340 |
| General Motors | 344503, 3988277, 1608629 |
| KYB | 3440014 |
| Maremont | 92-5556 |
| Mazda | GJR928910H, GJR928910J, KBH528700A, KBJ528700A, KN3L28700B, KN3N28700A, KN3N28700B |
| Mcquay-Norris | FCS5556S |
| Mevotech | SMS5556 |
| Monroe Shocks & Struts | U5556S |
| NAPA | 277-3200 |
| NAPA Chassis Parts | 277-3200 |
| NAPA Shocks | 5556 |
| Perfect Circle | 277-3200 |
| Raybestos Brakes | 585-1165 |
| Sealed Power | 831-5556 |
| TRW | CS5556 |
| TRW Steering and Suspension Parts | CS5556 |
| VAICO | V404125 |
MOOG 5556 Fits Vehicles
- Pontiac Grand Safari (1975)
- Pontiac Parisienne (1976)
- Oldsmobile Delta 88 (1974)
- Oldsmobile Custom Cruiser (1974)
- Pontiac Grandville (1975)
- Pontiac Catalina (1975)
- Pontiac Bonneville (1975-1976)
- Oldsmobile 98 (1975-1976, 1978)
- Cadillac Fleetwood (1977, 1980-1982, 1984)
MOOG 5556 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG 5556 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
MOOG 5556 Questions & Answers
No questions yet
Be the first to ask a question about this product!
