MONROE MA815 Part Description
Manufacturer
Product Description

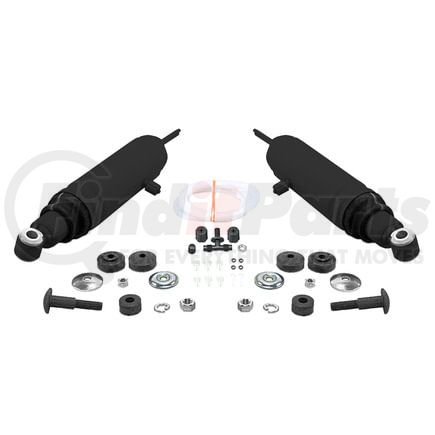

Max-Air Air Adjustable Air Shock Absorber Pack of 2
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA815 Specifications
Product Attributes
| Compressed Length | 12.25 IN |
| Extended Length | 19.875 in |
| Travel Length | 7.625 in |
| Lower Mount Code | L1/CP3 |
| Lower Mount Type | L1/CP3 |
| Upper Mount Code | S4 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | Yes |
| Hydraulic Lockout | No |
| Parts Pack(s) | P00576,P01136 |
| Part Description | Air Shock Absorber |
| Internal Rebound Bumper | Yes |
| Compressed Length | 311.2 MM |
| Extended Length | 504.8 MM |
| Travel Length | 193.7 MM |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame) |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598031655 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA815 Part Interchanges
| Brand | Part Number |
|---|---|
| Lincoln Automotive | E5VY18125B, E7LY18124A, E7LY18124B, E7LY18125A, E7LY18125B, E7VY18124A, E7VY18124B, E7VY18125B, E8LY18125A, E8VY18125A, E8VY18125B, E90Y3C098A, E90Y3C098B, E90Y5A965A, E9AZ18125A, F1LY18124A |
| Mercury | 1W7Z18124DA, E5VY18125E, E5VY18125F, E9AZ18124A, E9AZ18124B, E9AZ18124D, E9AZ18124E, E9AZ18125A, E9AZ18125B, E9AZ18125E, E9AZ18125F, E9AZ18125G, F2AZ18125A, F5AZ18124A, F5AZ18124B, F5AZ18125A, F5MY18124A, F5MY18125A, F6AZ18124BA, F6AZ18125AA, F6AZ18125BA, F6MY18124AA, F6MY18125AA, F7AZ18124AA, F7AZ18124BA, F7AZ18125AA, F7AZ18125BA, F7AZ18125JA, F8AZ18124AA, F8AZ18124BA, F8AZ18124CA, F8AZ18125AA, F8AZ18125BA, F8MZ18125AA, FOAZ18125A, FOAZ18125B, XW3Z18125AA, XW7Z18124AB, XW7Z18124BB, XW7Z18125AB, XW7Z18125BA, XW7Z18125BB |
| Ford | 1W7Z18124DA, 3U2Z18124AA, 5U2Z18V125C, 5U2Z18V125VF, E4AZ18125A, E5VY18125E, E5VY18125F, E7PZ18125A, E9AZ18124A, E9AZ18124B, E9AZ18124D, E9AZ18124E, E9AZ18124F, E9AZ18125A, E9AZ18125B, E9AZ18125E, E9AZ18125F, E9AZ18125G, E9AZ18125H, F2AZ18125A, F5AZ18124A, F5AZ18124B, F5AZ18124C, F5AZ18125A, F6AZ18124AA, F6AZ18124BA, F6AZ18125AA, F6AZ18125BA, F7AZ18124AA, F7AZ18124BA, F7AZ18124BB, F7AZ18124CA, F7AZ18124DB, F7AZ18125AA, F7AZ18125BA, F8AZ18124AA, F8AZ18124BA, F8AZ18124CA, F8AZ18124HA, F8AZ18125AA, F8AZ18125BA, F8MZ18125AA, FOAZ18125A, FOAZ18125B, XW3Z18125AA, XW7Z18124AB, XW7Z18124BB, XW7Z18125AA, XW7Z18125AB, XW7Z18125BA, XW7Z18125BB, XW7Z18125CA, XW7Z18125DA |
| OEM | XW7Z18125BA |
| Gabriel | 49205 |
| NAPA Shocks | MA815 |
MONROE MA815 Fits Vehicles
- Ford Grand Marquis (2001-2002)
- Ford LTD Crown Victoria (1987-1991)
- Mercury Grand Marquis (1983-2002)
- Mercury Colony Park (1987-1991)
- Lincoln Town Car (1981-1989)
- Lincoln Continental (1983-1989)
- Ford LTD (1983-1986)
- Ford Crown Victoria (1992-2002)
- Ford Country Squire (1987-1991)
MONROE MA815 Cross References
We have 4 alternatives for the MA815 by MONROE:
