MONROE part description

Product Description

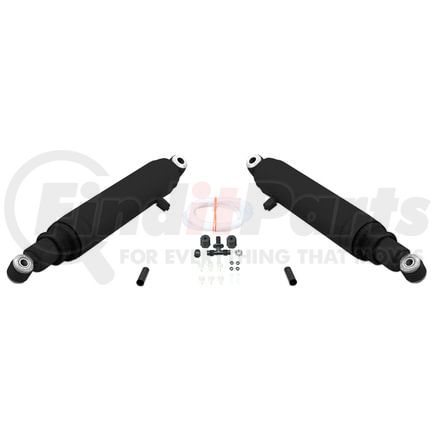

Max-Air Air Adjustable Air Shock Absorber Pack of 2

Features & Benefits

  • MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
  • EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
  • EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
  • BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
  • CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction

Product Attributes

Compressed Length 15.875 IN
Extended Length 26.375 in
Travel Length 10.5 in
9791 LS26
Lower Mount Type Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Upper Mount Code L1
Upper Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Dust Shield Included Yes
Dust Shield Material Rubber
9783 Yes
Hydraulic Lockout No
Parts Pack(s) (2) P00827
Part Description Air Shock Absorber
9908 Yes

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598031440
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

MONROE MA770 Cross Reference

We have 5 alternatives for the MA770 by MONROE:

Fits Vehicles

  • Mazda B4000 (1994-2009)
  • Mazda B3000 (1994-2008)
  • Ford Ranger (1983-2011)
