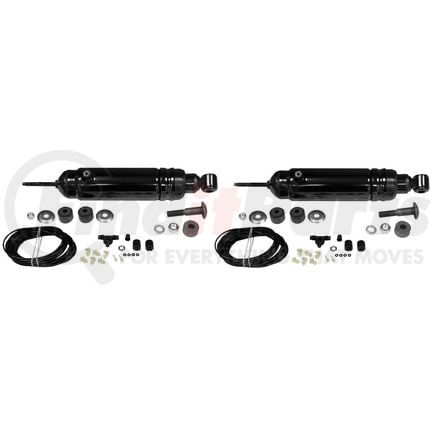

Monroe MA700 - Max-Air™ Shock Absorber - Rear, Load Adjusting, Monotube
$11049
MSRP: $187.24
Save: $76.75
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MONROE part description
Product Description
Max-Air™ Shock Absorber - Rear, Load Adjusting, Monotube
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
Product Attributes
| Compressed Length | 12.75 IN |
| Extended Length | 21.375 in |
| Travel Length | 8.625 in |
| Lower Mount Code | L1/CP3 |
| Lower Mount Type | L1/CP3 |
| Upper Mount Code | S4 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | Yes |
| Hydraulic Lockout | No |
| Parts Pack(s) | P00576,P01134 |
| Part Description | Air Shock Absorber |
| Internal Rebound Bumper | No |
| Compressed Length | 323.8 MM |
| Extended Length | 542.9 MM |
| Travel Length | 219.1 MM |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame) |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598030702 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Part Interchanges
MONROE MA700 Cross Reference
We have 3 alternatives for the MA700 by MONROE:
Fits Vehicles
- Chevrolet Fleetline Truck (1949-1952)
- Ford Custom (1965-1972)
- American Motors Rambler (1958-1960, 1969)
- Cadillac Series 62 (1952-1954)
- Cadillac Series 75 Fleetwood (1952-1954)
- Chevrolet Fleetline (1949-1952)
- Nash Rambler (1956-1957)
- Mercury Park Lane (1966-1968)
- Mercury Monterey (1965-1974)
- Mercury Marauder (1965-1970)
- Mercury Cyclone (1965-1967)
- Mercury Colony Park (1965-1974)
- Lincoln Mark III (1968-1971)
- Ford Thunderbird (1967-1971)
- Ford Galaxie 500 (1965-1974)
- Ford Galaxie (1965-1967)
- Chevrolet Two-Ten Series (1953-1957)
- Chevrolet One-Fifty Series (1953-1957)
- Chevrolet Bel Air (1953-1957)
- Cadillac Series 60 Fleetwood (1952-1954)
- Cadillac Eldorado (1953-1954)
- Buick LeSabre (1959-1960)
- Buick Invicta (1959-1960)
- American Motors Rebel (1958-1961, 1966-1969)
- American Motors Marlin (1965-1967)
- American Motors Ambassador (1958-1969)
- American Motors Eagle (1980-1988)
- Mercury Marquis (1967-1978)
- Mercury Grand Marquis (1975-1978)
- Lincoln Continental (1970-1979)
- Ford Custom 500 (1965-1977)
- Ford LTD (1967-1978)
