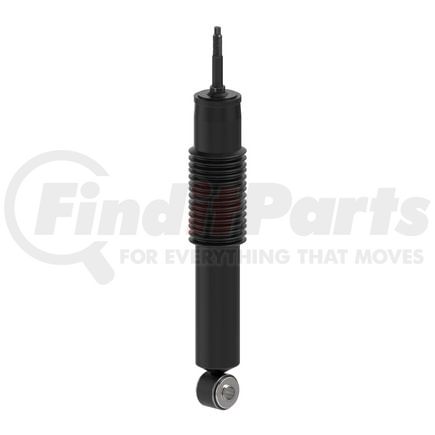

(888) 312-8812 Login SignupMONROE 911536 OESpectrum Amortisseur
Tap to view 5 more
MSRP: $131.98
$7299
Save $58.99
Limited availability at this price!
In Stock
Get it by Thursday, Jun 25
MONROE 911536 Part Description
Manufacturer
Features & Benefits
- CONSISTENT RIDE -- High-temperature OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- MAINTAINS STABILITY -- Monotube technology maintains vehicle control over bumps, dips and potholes for vehicles originally equipped with monotube shocks and struts
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911536 Specifications
Product Attributes
| Compressed Length | 14.02 IN |
| Compressed Length | 356.1 MM |
| Extended Length | 21.93 in |
| Extended Length | 557 MM |
| Travel Length | 7.91 in |
| Travel Length | 200.9 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS26 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01136 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598098771 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911536 Cross References
| Brand | Part Number |
|---|---|
| 911536MM | |
| BILSTEIN | 24141727 |
| Duralast | TS3431951B |
| GABRIEL | G64008, 61711, 77981 |
| Jeep | 52126811AB, 68003290AC, 68003291AC, 68003292AC, 68003293AC, 68003303AC, 68003303AE, 68003304AC, 68003305AC, 68003306AB, 68003307AB, 68003308AB, 68003308AC, 68003309AB, 68003311AB, 68003313AB, 68027792AA, 68027793AA, 68027794AA, 68027794AB, 68027794AC, 68027795AA, 68027796AA, 68027797AA, 68027799AA, 68027799AB, 68028415AC, 68029954AA, 68029955AA, 68029959AA, 68029960AA, 68029961AA, 68032197AA, 68047812AA, 68047812AB, 68047812AC, 68047812AD, 68047814AA, 68047814AB, 68067515AA, 68067515AC, 68067515AD, 68067516AA, 68067516AC, 68067516AE, 68067516AF, 68087359AA, 68087359AB, 68087359AC, 68087359AE, 68087359AF, 68087360AA, 68087360AB, 68087360AC, 68087360AD, 68087360AE, 68087362AA, 68087362AC, 68087362AD, 68087363AA, 68087363AB, 68087363AC, 68138775AA, 68138775AB, 68138775AC, 68138853AA, 68138853AB |
| KYB | 554364, 349071 |
| KYB AMERICA LLC. | 554364 |
| MERITOR | MG62008 |
| Monroe Shocks & Struts | 210296, 37285, 33277 |
| NAPA Shocks | 911536, NS911536 |
| OEM | 68003292AC, 68029954AA, 68027799AA, 68138775AC, 68087360AE, 68047812AC, 68138775AB, 68067516AE, 68003303AE, 68029955AA, 68027794AA, 68047812AD, 68027794AC, 68087359AA, 68027795AA, 68027799AB, 68087360AD, 68003290AC, 68087359AE, 68027794AB, 68087359AF, 68087359AC, 68028415AC, 68087360AA, 68027792AA, 68003313AB, 52126811AB, 68003304AC, 68047812AA, 68003305AC, 68027793AA, 68067516AA, 68003311AB, 68138775AA, 68032197AA |
| Rancho | RS7326, RS77326 |
| SENSEN | 12140204 |
MONROE 911536 Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2017)
