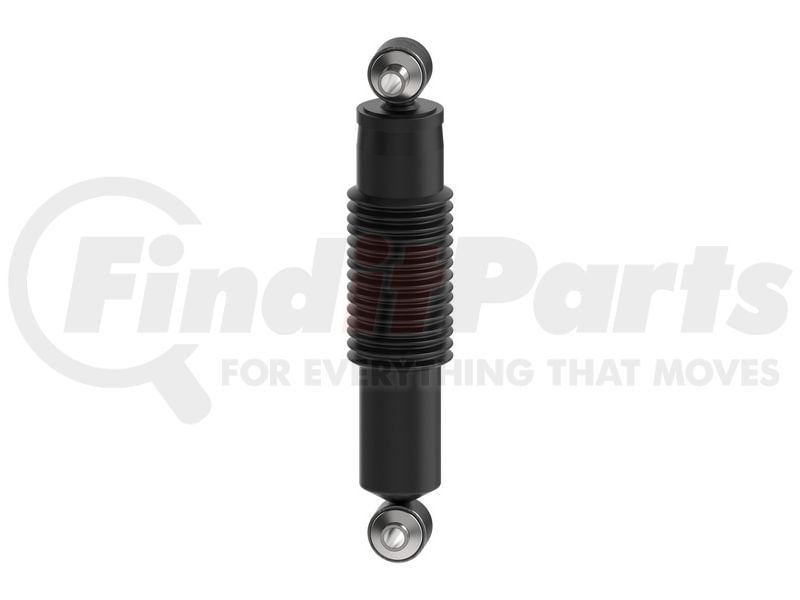

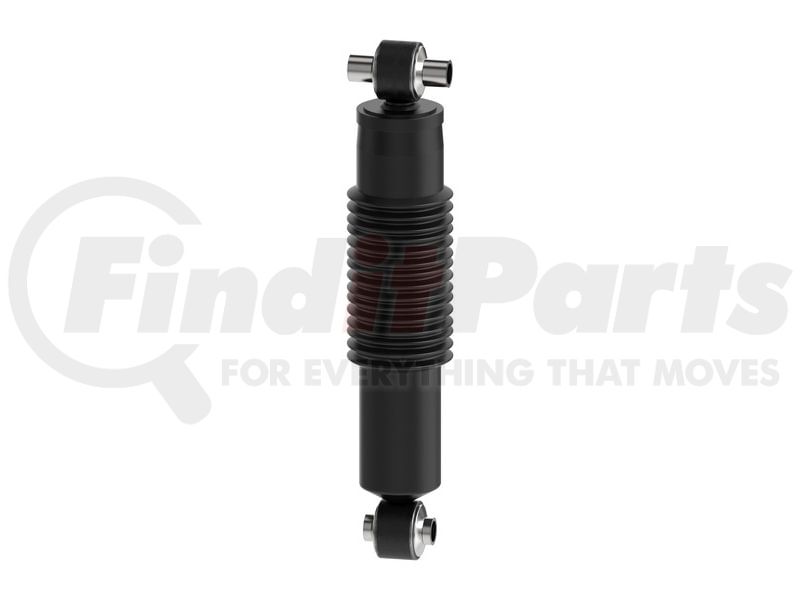

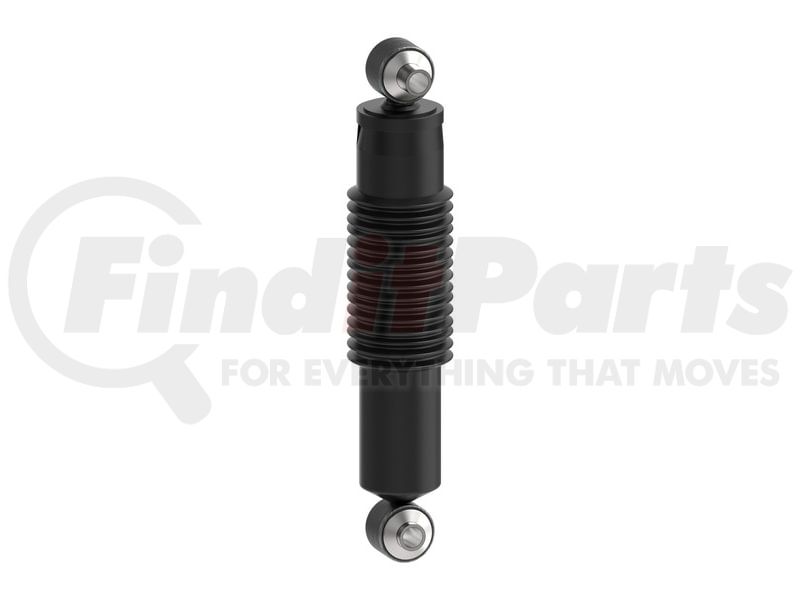

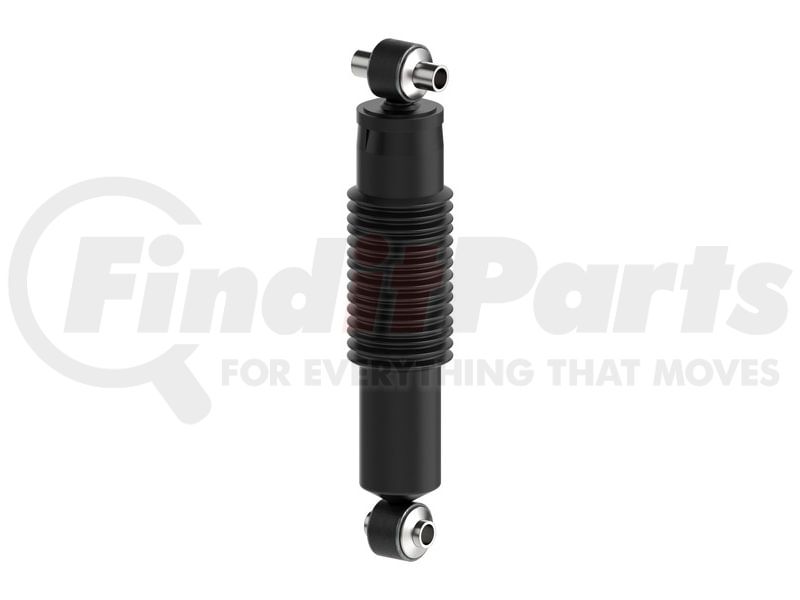

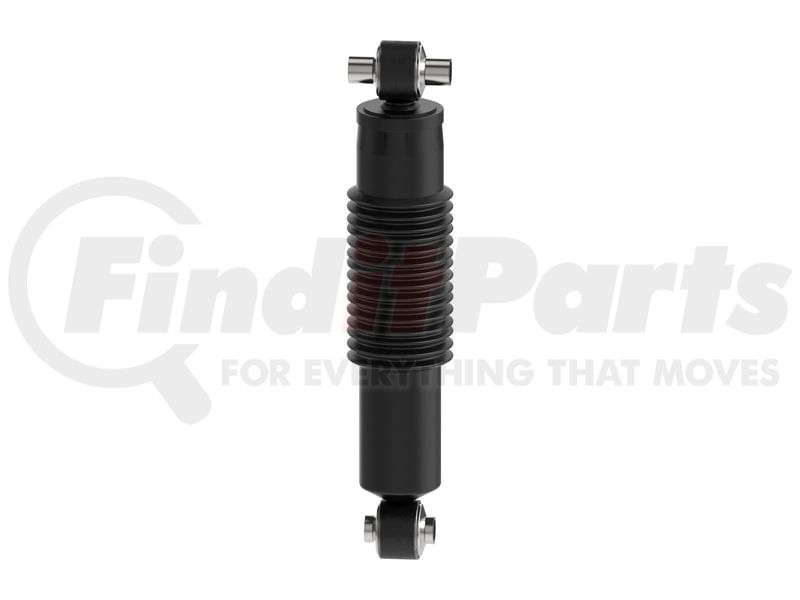

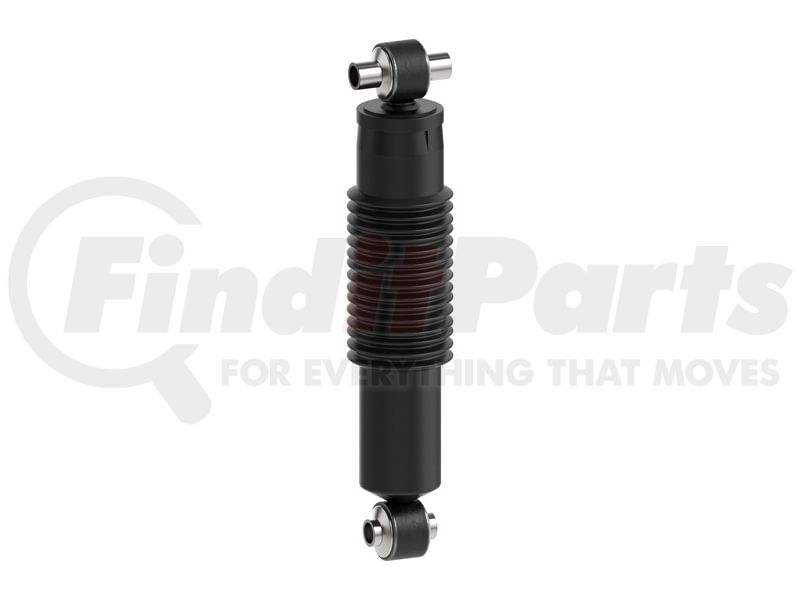

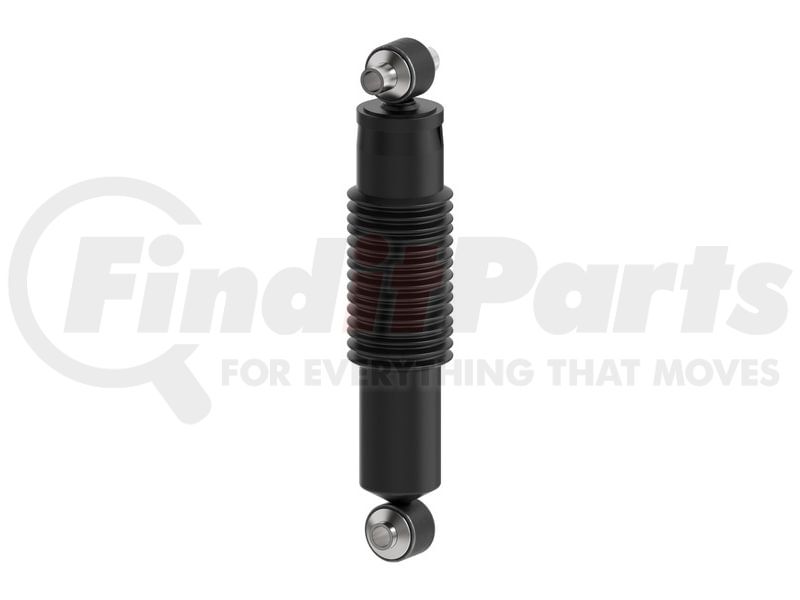

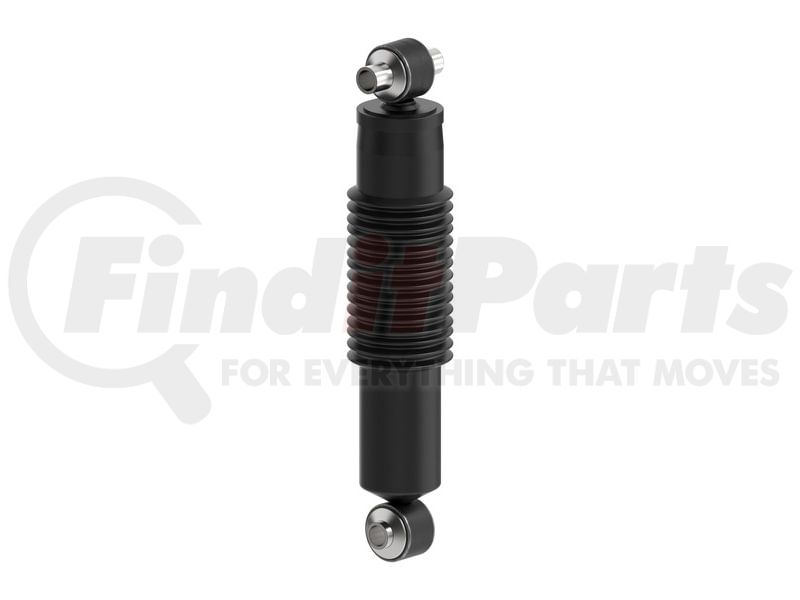

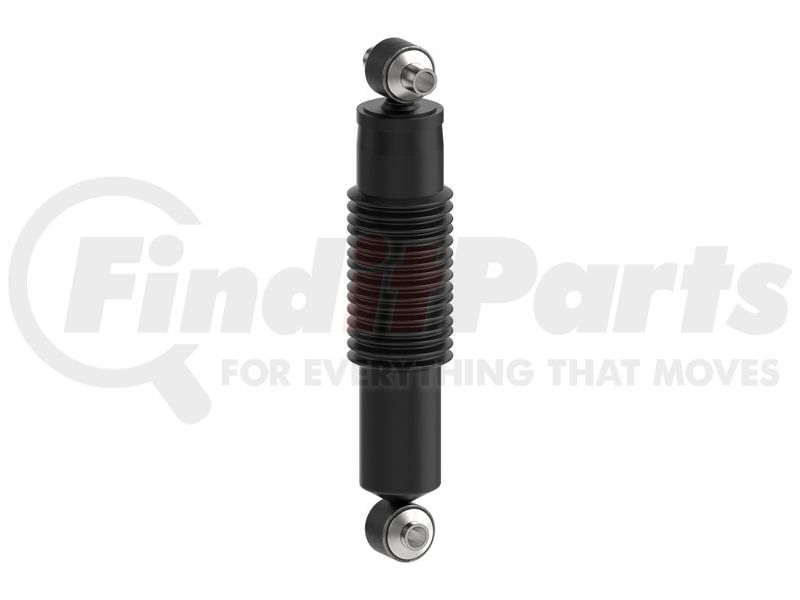

(888) 312-8812 Login SignupMONROE 911511 Reflex Suspension Shock Absorber
Tap to view 5 more
MSRP: $141.85
$6599
Save $75.86
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
MONROE 911511 Part Description
Manufacturer
Product Description
Reflex Suspension Shock Absorber
Features & Benefits
- MAINTAINS VEHICLE CONTROL -- Monotube technology maintains vehicle control over bumps, dips and potholes for vehicles originally equipped with monotube shocks and struts
- IMPROVED IMPACT ABSORPTION -- Hydraulic lock-out isolates suspension impact and helps maintain vehicle integrity (where applicable)
- CONSISTENT RIDE -- High temperature OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- EXCELLENT RESPONSE AND STABILITY -- High-pressure nitrogen charge provides a quicker response for excellent vehicle control
- BUILT TO LAST -- High-strength shock housing and hardened, chrome-plated piston rod provide durability and longer service life
- CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- REDUCED SHOCK FADE AND AERATION -- Free floating dividing piston separates shock fluid from high-pressure gas charged to reduce shock fade and aeration
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911511 Specifications
Product Attributes
| Lower Mount Code | LS39 |
| Upper Mount Code | LS77 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 11.375 IN |
| Dust Shield Material | Rubber |
| Extended Length | 16.625 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 5.25 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.7/16" Sleeve OAL |
| Compressed Length | 288.9 MM |
| Extended Length | 422.3 MM |
| Travel Length | 133.4 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598034618 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911511 Part Interchanges
| Brand | Part Number |
|---|---|
| Chevrolet | 12474701, 12474702, 12474704, 12474705, 12474709, 12474710, 12474711, 12474712, 12474719, 12474720, 12474903, 12474906, 15002527, 15002528, 15002529, 15150925, 15150926, 15150928, 15150929, 15150931, 15150933, 15152942, 15152943, 15152944, 15152947, 15718076, 15718077, 15720387, 15727198, 15727199, 15735786, 15741932, 15742099, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22046804, 22064460, 22064461, 22064635, 22064636, 22064637, 22064638, 22064647, 22064653, 22064655, 22064678, 22064679, 22064683, 22064684, 22064685, 22064686, 22064830, 22064831, 22064841, 22065093, 88945332, 88945357, 88945886, 88946059 |
| GMC | 12474701, 12474704, 12474705, 12474709, 12474710, 12474711, 12474712, 12474720, 12474903, 15002527, 15002529, 15150925, 15150926, 15150928, 15150931, 15150933, 15152943, 15152944, 15152947, 15152948, 15718077, 15720387, 15727198, 15727199, 15735786, 15741932, 15742099, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22046804, 22064460, 22064461, 22064635, 22064636, 22064637, 22064638, 22064647, 22064653, 22064655, 22064678, 22064679, 22064683, 22064684, 22064685, 22064686, 22064830, 22064831, 22064841, 22065093, 88945332, 88945357, 88945886, 88946059 |
| Gabriel | 77609 |
| KYB | KG5480, 344381, 565073, 565092, KG54327, 565076, 565062, KG5040, 565086, 344266, 565067, 341343 |
| ACDelco | 5405040 |
| NAPA Shocks | 911511, NS911511 |
| MasterPro Shocks and Struts | GM109 |
| Duralast | TS3330911B |
MONROE 911511 Fits Vehicles
- GMC Yukon (1995-2000)
- GMC K1500 Suburban (1992-1999)
- GMC K1500 (1988-1999)
- Chevrolet Tahoe (1995-2000)
- Chevrolet K1500 Suburban (1992-1999)
- Chevrolet K1500 (1988-1999)
MONROE 911511 Cross References
We have 4 alternatives for the 911511 by MONROE:
