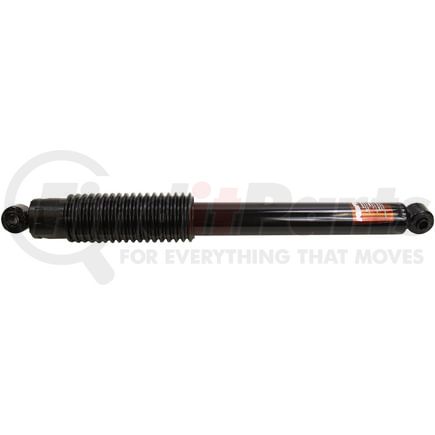

MONROE 911504 Part Description
Manufacturer
Features & Benefits
- CONSISTENT RIDE -- High-temperature OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- MAINTAINS STABILITY -- Monotube technology maintains vehicle control over bumps, dips and potholes for vehicles originally equipped with monotube shocks and struts
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911504 Specifications
Product Attributes
| Compressed Length | 15.375 IN |
| Compressed Length | 390.5 MM |
| Extended Length | 24.125 in |
| Extended Length | 612.8 MM |
| Travel Length | 8.75 in |
| Travel Length | 222.3 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS47 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Upper Mount Code | LS47 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598034540 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911504 Cross References
| Brand | Part Number |
|---|---|
| 911504MM, 829352491980 | |
| Chevrolet | 12477866, 12477867, 12477868, 12477869, 12477870, 12477871, 15057973, 15935605, 19168458, 19300056, 19300058, 22064848, 22064849, 22064851, 22064859, 22064860, 22064864, 22064865, 22064866, 22064868, 22400190, 22400191, 22400192, 22400193, 22400194, 22400195, 22400265, 22400368, 22400370, 22400563, 22400818, 88963420, 88963421, 88963422, 88963423, 88963424, 88963425, 88965348, 88967443, 88983839, 89038595, 89038596, 89038597, 89038652, 89038653, 89040168, 89040169, 89040170, 89040172, 89040173, 89040176, 89040177, 89040178, 89040179, 89040180, 89040181, 89040415, 89040416, 89040417, 89040418, 15935607, 25984613 |
| Duralast | TS3431342B |
| FCS | 342527 |
| FCS AUTO PARTS | 342527 |
| GABRIEL | 77412, 77662 |
| GMC | 12477866, 12477867, 12477868, 12477869, 12477870, 12477871, 15057973, 19133548, 19168458, 19209331, 19300049, 19300056, 19300058, 22064848, 22064849, 22064851, 22064859, 22064860, 22064864, 22064865, 22064866, 22064868, 22400190, 22400191, 22400192, 22400193, 22400194, 22400195, 22400265, 22400368, 22400370, 22400563, 22400818, 88963420, 88963421, 88963422, 88963423, 88963424, 88963425, 88965348, 88983819, 88983839, 89038595, 89038596, 89038597, 89038652, 89038653, 89040168, 89040169, 89040170, 89040172, 89040173, 89040176, 89040177, 89040178, 89040179, 89040180, 89040181, 89040415, 89040416, 89040417, 89040418, 15935607, 25984613 |
| KYB | KG54104, KG54341, 565103, 565104, 344386, 344365, 565016, KG54342, 344385 |
| KYB AMERICA LLC. | 565016, 565068, KG54104 |
| MasterPro Shocks and Struts | GM104 |
| Monroe Shocks & Struts | 37150, 34676, 32327, 210470 |
| NAPA Shocks | 911504, NS911504 |
| Sensen | 12440005, 12140150 |
MONROE 911504 Fits Vehicles
- Chevrolet C1500 (2002)
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- GMC Sierra 1500 (1999-2006)
- Chevrolet Silverado 1500 (1999-2006)
