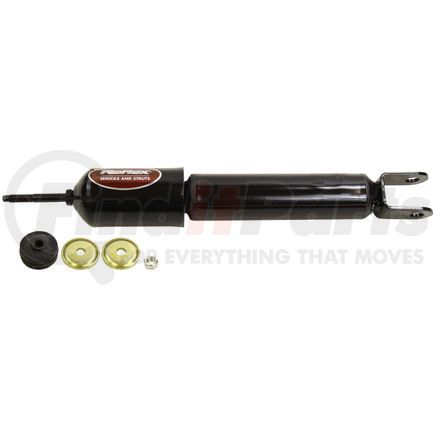

MONROE 911256 Reflex Suspension Shock Absorber

MSRP: $113.66

$62.99

Save $50.67

Limited availability at this price!

In Stock

Get it by Tuesday, Feb 17
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 911256 Part Description

Manufacturer

MONROE

Product Description

Reflex Suspension Shock Absorber

Features & Benefits

  • IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
  • CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

MONROE 911256 Specifications

Product Attributes

Lower Mount Code SPEC
Upper Mount Code S4
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Compressed Length 10.875 IN
Dust Shield Material Metal
Extended Length 15.125 in
Gas Charged Yes
Lower Mount Type Clevis
Parts Pack(s) P01136
Travel Length 4.25 in
Upper Mount Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Compressed Length 276.2 MM
Extended Length 384.2 MM
Travel Length 107.9 MM
Lower Mount Type Special Mount
Shock Absorber Rod End Measuring Point Base of Stem
Lower Mount Code SPEC
Upper Mount Code S4
Mounting Hardware Included Yes
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No

Additional Information

MSDS Sheet Number 01170
Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598811837
VMRS Code 016008003
UNSPSC 25172011

MONROE 911256 Cross References

MONROE 911256 Fits Vehicles

  • GMC Savana 1500 (2003-2014)
  • Chevrolet Express 1500 (2003-2014)
