(888) 312-8812 Login SignupMONROE 65512 Magnum Suspension Shock Absorber
Tap to view 5 more
MSRP: $172.60
$9599
Save $76.61
Limited availability at this price!
In Stock
Get it by Friday, Feb 13
MONROE 65512 Part Description
Manufacturer
Product Description
Shock Absorber
Features & Benefits
- Engineered for reliable performance in midsize and full-size trucks and vans
- Durable nitrocarburized rod and sintered iron piston for extended service life
- Larger bore and reserve tube for increased oil capacity and shock efficiency
- Nitrogen gas charge maintains tire-to-road contact, reducing aeration and fade

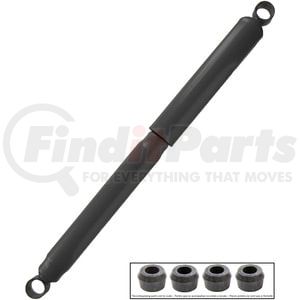

Monroe Gas-Magnum 60 Series Suspension Shock Absorber
Elevate your driving experience with the Monroe Gas-Magnum 60 Series Suspension Shock Absorber. Designed specifically for hardworking midsize and full-size trucks and vans, it promises firm control without compromising on comfort. The heavy-duty nitrocarburized rod and sintered iron piston are engineered for exceptional durability, extending the service life of the shock absorber. Featuring a larger bore and a 2-inch reserve tube, the Monroe 65512 effectively holds more oil for greater capacity and better performance. The nitrogen gas charge helps maintain superior tire contact with the road, which reduces aeration and shock fade, thus improving overall ride and handling. Whether navigating city streets or rugged terrains, Monroe assures a reliable and smooth suspension.
MONROE 65512 Specifications
Product Attributes
| Lower Mount Code | LS54 |
| Upper Mount Code | LS54 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | Yes |
| Part Description | Shock Absorber |
| Compressed Length | 11.0625 IN |
| Dust Shield Material | Metal |
| Extended Length | 15.91 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 4.847 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Compressed Length | 281 MM |
| Extended Length | 404.1 MM |
| Travel Length | 123.1 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS54 |
| Upper Mount Code | LS54 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598174123 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 65512 Cross References
| Brand | Part Number |
|---|---|
| 65512MM, MAE65512 | |
| Alliance Parts | ABPN32G900037, ABPN32O900086, ABPN32O900053, ABPN32O900037, ABPN32G900086, ABPN32G900053 |
| BULLDOG HD SHOCKS | HD1215-0072, HD1215-0102 |
| Bulldog HD | HD12150072 |
| CUSH | C0226 |
| Cush Suspensions | C0226 |
| Dayton Parts | 44185938 |
| FCS | F347201, F347208 |
| GABRIEL | 85938, 85064, 65351102, 659024, 680566, 665758 |
| Gabriel | 665693 |
| Gold Shock Absorber | 8170097 |
| HALDEX | SA65512 |
| HENDRICKSON | B23743, S21936, S23649, S23743, B23649, B21936, S-23649 |
| MERITOR | M85938, 680584 |
| NAPA Shocks | 65512 |
| OEM | S23649, S23743 |
| POWER10 PARTS | SSA-85938, HT-S23649, SSA-85064 |
| RIDEWELL CORP | 1270009 |
| SACHS NORTH AMERICA | 316314 |
| Sachs | 316314 |
| WATSON & CHALIN | 17297, 17306 |
