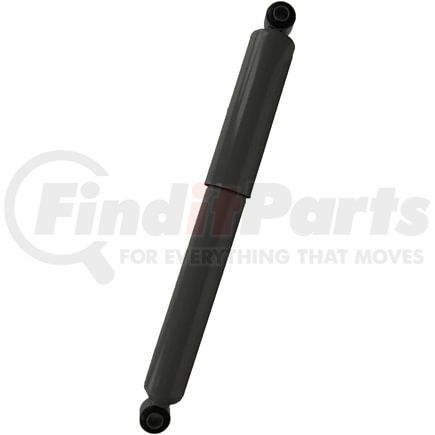

65123 by MONROE - SHOCK
Tap to view 3 more
65123 by MONROE - SHOCK
65123 by MONROE - SHOCK
65123 by MONROE - SHOCK

Monroe 65123 - SHOCK

Part Number
65123
Manufacturer
MONROE
Description

SHOCK

details

$93.49

MSRP: $166.72

Save: $73.23

In stock

limited availability at this price!

New! No hassle Return Policy details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will ship the following business day
Get it by Friday, Dec 12
Pay over 3-12 months with Affirm Logo. Learn more

MONROE part description

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

Lower Mount Code LS54
Upper Mount Code LS54
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Internal Construction Type Twin Tube
Adjustable Damping No
Color Black
Finish Painted
Shock Absorber Bore Size 1-3/4 IN
Foam Cell Design No
Shaft Diameter 18 MM
Compressed Length 14.875 IN
Dust Shield Material Metal
Extended Length 24.25 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Parts Pack(s) None
Travel Length 9.375 in
Upper Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Compressed Length 377.8 MM
Extended Length 615.9 MM
Travel Length 238.1 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Bore Size 44.5 MM
Shock Absorber Bore Size 1.75 IN
Adjustable Damping No

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598170231
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

MONROE 65123 Cross Reference

We have 20 alternatives for the 65123 by MONROE:

Fits Vehicles

  • Sterling Truck SC8000 Cargo (1999-2007)
  • Sterling Truck SC7000 Cargo (2003, 2006)
  • Ford FT900 (1996-1997)
  • Ford L9522 (1998)
  • Ford LT9501 (1997)
  • Ford L9501 (1997-1998)
  • Ford LT8513 (1996-1998)
  • Ford LT8501 (1997-1998)
  • Ford LT9522 (1997)
  • Ford LT9513 (1996-1997)
  • Ford L9513 (1996-1998)
  • Ford AT9522 (1997-1998)
  • Ford AT9513 (1996-1998)
  • Ford L8511 (1998)
  • Ford L8513 (1996-1998)
  • Ford L8501 (1997-1998)
  • Sterling Truck AT9500 (1999-2008)
  • Sterling Truck LT8500 (1999-2008)
  • Sterling Truck LT9500 (1999-2008)
  • Ford F-700 (1996-1997)
