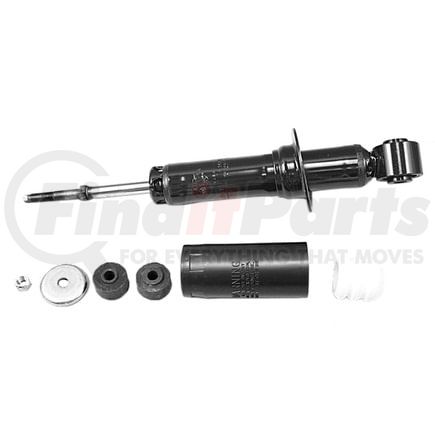

(888) 312-8812 Login SignupMONROE 553001 Magnum Severe Service Suspension – Jambe de force
Tap to view 3 more
MSRP: $218.44
$17249
Save $45.95
Limited availability at this price!
In Stock
Get it by Monday, Aug 24
MONROE 553001 Part Description
Manufacturer
Product Description
Suspension Strut
Features & Benefits
- ENGINEERED FOR EMERGENCY AND FLEET VEHICLES -- For hardworking first responder, municipal, fleet and jobsite vehicles and features 10-stage valving that adjusts to road extremes to help handle frequent stops, heavy loads and high miles
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- STRONG AND DURABLE -- Double welded, including arc welds up to 360-degrees, for durability while shouldered bushing and bonded bushing (on most applications) delivers quality
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (on most applications) and sintered iron piston enhance durability for longer service life
- LONGER SERVICE LIFE -- Larger bore, bigger 2-in. reserve tube and 0.05-in. pressure tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- CONTROL AND DURABILITY – PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces for smooth operation
MONROE 553001 Specifications
Product Attributes
| Compressed Length | 352.4 MM |
| Compressed Length | 13.875 IN |
| Extended Length | 17 in |
| Extended Length | 431.8 MM |
| Travel Length | 3.125 in |
| Travel Length | 79.4 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01611 |
| Body Length | 11.929 IN |
| Dust Shield Included | Yes |
| Dust Shield Material | Plastic |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Strut Mount(s) Included | No |
| Coil Spring Included | No |
| Lower Mount Code | LS53 |
| Upper Mount Code | S5 |
| Hydraulic Lockout | No |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598553010 |
| VMRS Code | 016020000 |
| UNSPSC | 25172007 |
MONROE 553001 Cross References
| Brand | Part Number |
|---|---|
| 553001MM, 747730056104 | |
| FCS | 336349, 336343 |
| FCS AUTO PARTS | 336349 |
| Ford | 3W7Z18124AA, 3W7Z18124BA, 3W7Z18124CA, 3W7Z18124GA, 3W7Z18125DA, 3W7Z18125EA, 3W7Z18125FA, 3W7Z18125GA, 4W7Z18124AA, 4W7Z18124BA, 4W7Z18124CA, 4W7Z18124DA, 4W7Z18125AA, 4W7Z18125BA, 4W7Z18125CA, 4W7Z18125DA, 6W7Z18124A, 6W7Z18124C, 6W7Z18125C, 7W7Z18124C, 7W7Z18125C, BW7Z18124B, BW7Z18125B |
| GABRIEL | 79900, 79901, G51888 |
| KYB | 551602, 551600 |
| KYB AMERICA LLC. | 551602 |
| Lincoln | 7W7Z18124C, BW7Z18124B |
| Lincoln Automotive | 3U2Z18124BG, 3W1Z18124AA, 3W1Z18125CA, 4W1Z18124AA, 4W1Z18125AA, 4W7Z18124CA, 6W1Z18124A, 6W7Z18124C, 7W1Z18124A, 7W1Z18125A, 7W7Z18124C, 8W1Z18125B, 9W1Z18124A, BW1Z18125A, BW7Z18124B |
| MOTORCRAFT | ASH24533 |
| Mercury | 3W3Z18124AA, 3W3Z18125AA, 3W7Z18124AA, 3W7Z18124BA, 3W7Z18125DA, 3W7Z18125EA, 4W3Z18124AA, 4W3Z18125AA, 4W7Z18124AA, 4W7Z18124BA, 4W7Z18124CA, 4W7Z18124DA, 4W7Z18125AA, 4W7Z18125BA, 4W7Z18125CA, 4W7Z18125DA, 6W1Z18125A, 6W7Z18124A, 6W7Z18124B, 6W7Z18124C, 6W7Z18124D, 6W7Z18125B, 6W7Z18125D, 7W1Z18124A, 7W1Z18125A, 7W7Z18124A, 7W7Z18124C, 7W7Z18125B, 7W7Z18125D, 9W1Z18124A, AW7Z18125BA, BW1Z18125A, BW7Z18124A, BW7Z18124B, BW7Z18125A |
| NAPA Shocks | 553001 |
| OEM | 7W7Z18124C, BW7Z18124B |
| PM Auto | PM6000946 |
MONROE 553001 Fits Vehicles
- Ford Grand Marquis (2003-2004)
- Mercury Marauder (2003-2004)
- Mercury Grand Marquis (2003-2011)
- Lincoln Town Car (2003-2011)
- Ford Crown Victoria (2003-2011)
