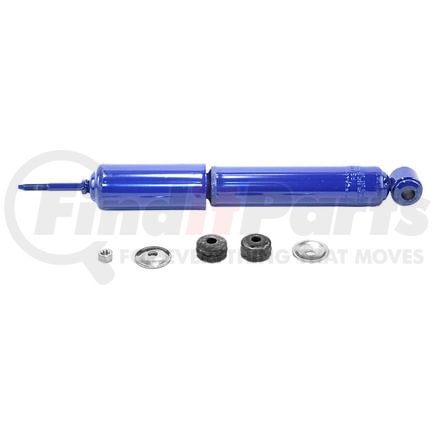

(888) 312-8812 Login SignupMONROE 32235 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MONROE 32235 Part Description
Manufacturer
Product Description
Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32235 Specifications
Product Attributes
| Lower Mount Code | L1 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 9.25 IN |
| Dust Shield Material | Metal |
| Extended Length | 14 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack(s) | P01135 |
| Travel Length | 4.75 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 235 MM |
| Extended Length | 355.6 MM |
| Travel Length | 120.6 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598025043 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32235 Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | E6TZ18125A, E6TZ18125E, E7TZ18125S, E7TZ18125T, E7TZ18125U, E9TZ18124D, E9TZ18124H, E9TZ18124L, E9TZ18124R, E9TZ18124S, E9TZ18125D, E9TZ18125E, E9TZ18125F, E9TZ18125G, E9TZ18125H, E9TZ18125J, E9TZ18125K, E9TZ18125L, F1TZ18124C, F1TZ18124D, F1TZ18124E, F1TZ18124F, F1TZ18125C, F1TZ18125D, F1TZ18125E, F2TZ18124B, F2TZ18124D, F2TZ18124E, F2TZ18125C, F2TZ18125D, F2TZ18125F, F2TZ18125G, F2TZ18125J, F37Z18124A, F37Z18124B, F37Z18124C, F37Z18124D, F37Z18124E, F37Z18125A, F37Z18125B, F37Z18125C, F37Z18125D, F37Z18125E, F37Z18125F, F47Z18124A, F47Z18124B, F47Z18124C, F47Z18124D, F47Z18124E, F47Z18125A, F47Z18125B, F47Z18125C, F47Z18125D, F47Z18125E, F57Z18124A, F57Z18124B, F57Z18124C, F57Z18124D, F57Z18124E, F57Z18125A, F57Z18125B, F57Z18125C, F57Z18125D, F57Z18125E, F67Z18124AA, F7AZ18124YB, F7AZ18125AC, F7AZ18125AD, FOTZ18124A, FOTZ18125C |
| Mazda | ZZL228700, ZZL334700, ZZM428700, ZZM434700, ZZM528700, ZZM534700, ZZM628700, ZZM634700, ZZM728700, ZZM734700, ZZM828700, ZZM834700, ZZM928700, ZZM934700, ZZMA28700, ZZMA34700, ZZMB28700, ZZMB34700 |
| Gabriel | 61561, G63608, 61591, 34076, 77608, 81744, G63614 |
| KYB | KG5489, 565001, 344268 |
| AutoZone | TS33-32961B, TS32-30171B, MS32-30171B, MS3230171B, TS3230171B, TS3332961B |
| FCS Auto Parts | 341568 |
| NAPA Response | 94085 |
| FCS | 341568 |
| Sensen | 32140185 |
| NAPA Proformer | SH81713, SH81490 |
| MasterPro Shocks and Struts | FD108 |
| Duralast | TS3230171B |
| Monroe Shocks & Struts | 59036, 59309 |
MONROE 32235 Fits Vehicles
- Mazda B4000 (1994-1997)
- Mazda B3000 (1994-1997)
- Mazda B2300 (1994-1997)
- Mazda Navajo (1991-1994)
- Ford Ranger (1990-1997)
- Ford Explorer (1991-1994)
- Ford Bronco II (1990)
MONROE 32235 Cross References
