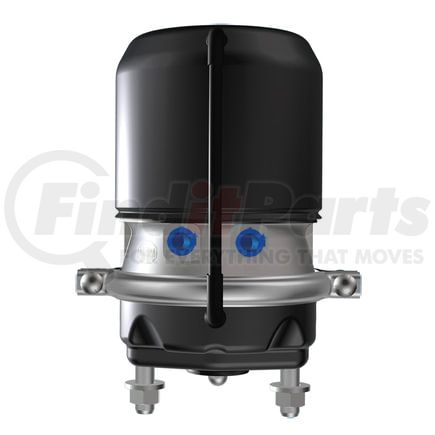

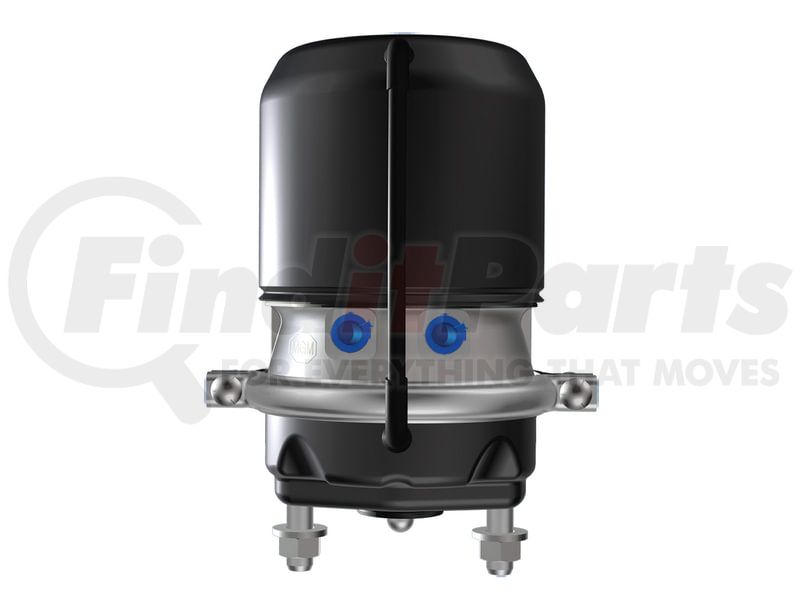

MGM Brakes MJB3030ET054 - Air Brake Chamber - Combination, Air Disc Model
- Part Number
- MJB3030ET054
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, Air Disc Model
details
$53149
15 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper Resistant Design
- Lighter Weight
- 3 Inch (76.2 mm) Long Stroke
- Compact Size
- New Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion (Approx. 1.25 inch (31.8 mm) Protrusion on "Long Stroke" Models When Manually Released)
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel Head, Epoxy Coated
- Available With 1,922-2,450 Lbs. (871.8 kg-1111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 16-30
- Heavy Duty 8 Gauge NPC Standard
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) | 24.56 lb (11.1 kg) |
| A | 11.14" (283.0 mm) |
| B | 7.50" (190.5 mm) |
| C | 8.32" (211.3 mm) |
| D | 4.75" (120.7 mm) |
| E | M16 x 1.5 - 6g |
| Inlets | 3/8" - 18 NPTF ( M16 x 1.5 - 6H) |
| XB | 15 mm |
Product Description
Air Disc - Piston Brake Chamber
Features & Benefits
- Tamper Resistant Design
- Light Weight
- Compact
- Integral Release Bolt
- Non-Coil Clash Power Spring
- Steel Head, Epoxy Coated
- Available with 1,922 - 2,450 lbs. of Push-Rod Braking Force @ 1.25 inch Stroke/Service Brake Sizes 16-30
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Air Disc - Piston Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.660 IN |
| Mounting Bolt Thread | M16 X 1.5 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 3.00 IN |
| UNIT | Production |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013013000 |
