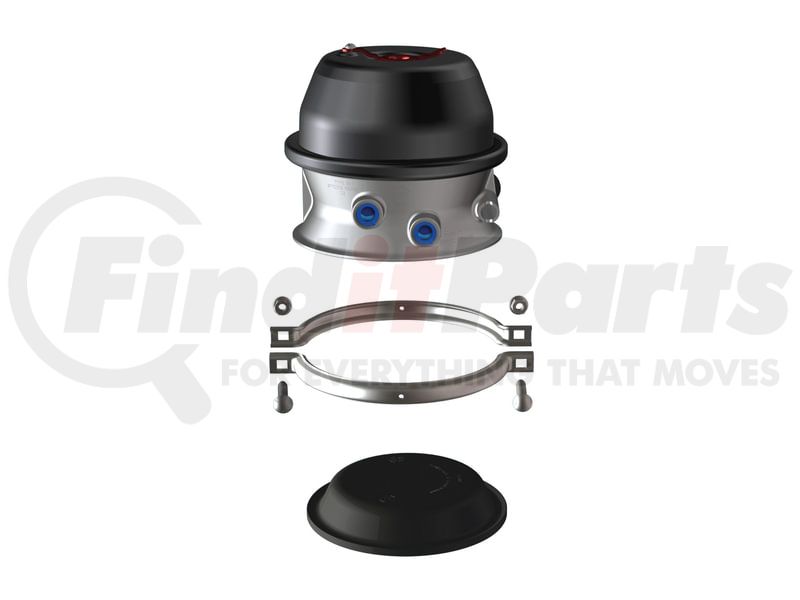

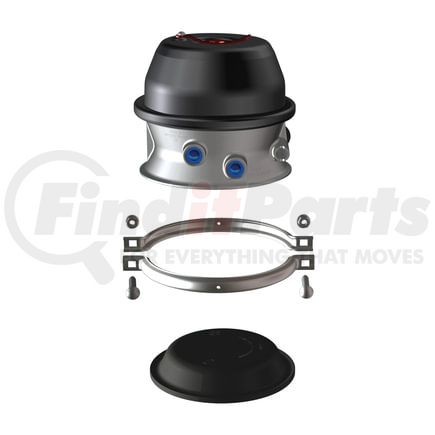

(888) 312-8812 Login SignupMGM BRAKES 3430808X Air Brake Spring Brake - Piggyback Plus Kit, with Neoprene Diaphragm
$2,77980
Package Price for 20 Units
@ $138.99 per unit
2 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 3430808X Part Description
Manufacturer
Product Description
Piggyback Plus Kit
Features & Benefits
- Tamper Resistant
- Externally Stored Release Bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Long Life Power Spring
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm (Neoprene Optional)
- Breather Tube
- Composite Guide
General Description
Line Haul
Features and Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- 360 Aluminum Center Case
- "Long Life" Power Spring
- Epoxy Coated Return Spring
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3060 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Specifications
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Single | 11.3 lb (5.1 kg) |
| B | 6.66" (169.2 mm) |
| C | 8.31" (211.1 mm) |
| D | 8.21" (208.5 mm) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
MGM BRAKES 3430808X Specifications
Product Attributes
| Chamber Type | Piggyback Plus Kit |
| Diaphragm Diameter | Neoprene IN |
| Mounting Bolt Length | 1.550 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 2.50 IN |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004001 |
MGM BRAKES 3430808X Cross References
| Brand | Part Number |
|---|---|
| HALDEX | GP3030K |
