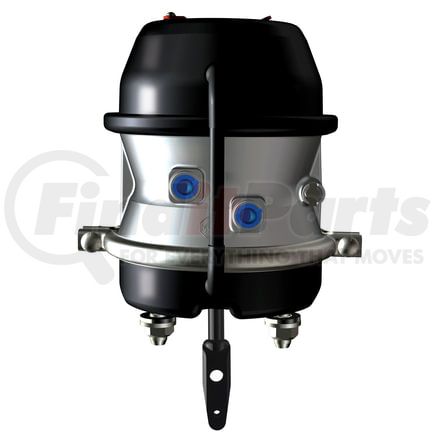

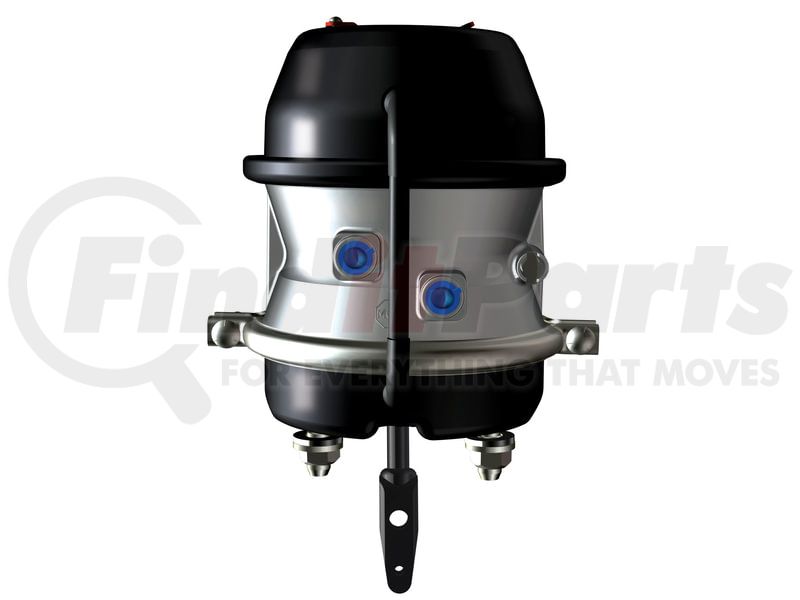

MGM BRAKES 3244051X Air Brake Chamber - Combination, with Welded NPC

★★★★★ (0)

$4,959.80

Package Price for 20 Units
@ $247.99 per unit

21 Day Lead Time

Due to limited availability, we will confirm your order and notify you within 1 business day.
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
This item will ship about 21 days after the date of purchase.

MGM BRAKES 3244051X Part Description

Manufacturer

MGM BRAKES

Product Description

Double Diaphragm Brake Chamber

Features & Benefits

  • Tamper Resistant
  • Long Life Power Spring
  • Center Hole Diaphragm & Shield
  • Epoxy-Coated Head, NPC/Lower Push-Rod, Return Spring
  • HD NPC
  • Polymer Guide
  • HD Reinforced Diaphragm (or Neoprene)
  • Stroke Alert
  • Molded Rubber Seal
  • Composite Guide
General Description

Dump Truck/Trailer

Features and Benefits
  • Tamper Resistant Design
  • Center Hole Diaphragm (U.S Patent No. 5,507,217)
  • Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
  • Epoxy Coated Return Spring
  • Center Hole Shield
  • Square Port Bosses (Long Stroke Identification)
  • Weatherseal Plug
  • Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge on All Other Sizes)
  • Polymer Push-Rod Guides
  • Heavy-Duty Nylon Reinforced Diaphragms
  • Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
  • Stroke Alert
  • Externally Stored Release Bolt
  • 3" (76.2 mm) Long Stroke
  • Molded Nitrile Rubber Air Seal
  • External Breather Tube
  • Heavy Duty Power Spring 145 lb (65.8 ks) Of Additional Parking Bake Force @ 1.25 inches (31.8 mm) of Stroke
  • Weld Reinforced Non-Pressure Housing with Welded Bolts
  • Composite Guide -Corrosion Fighter Technology
Technical Specifications
Stroke 3.00" (76.2 mm)
Weight lb (kg) Combination 20.4 lb (9.3 kg)
Weight lb (kg) Single N/A
A 9.99" (253.7 mm)
B 7.61" (193.3 mm)
C 8.32" (211.3 mm)
D 8.21" (208.5 mm)
E 4.75" (120.7 mm)
F 5/8" - 11 UNC (M16 x 1.5 - 6g)
G 5/8" - 18 UNF (M16 x 1.5 - 6g)
Inlets 3/8" - 18 NPTF (M16 x 1.5 - 6H)
X - Min. (aftermarket unit only) 8.00" (203.2 mm)

MGM BRAKES 3244051X Specifications

Product Attributes

Breather TubeBreather Tube
Chamber TypeDouble Diaphragm Brake
Diaphragm DiameterRubber IN
Heavy DutyHeavy Duty
Mounting Bolt Length1.540 IN
Mounting Bolt Thread5/8-11
Port Size3/8-18 NPTF
Spring Size30
Service Size30
Stroke3.00 IN
Welded Mounting BoltsWelded Mounting Bolts
UNITAftermarket
DiaphragmRubber
Rod Diameter5/8
Push Rod Length - no yoke8.00

Additional Information

Country of Origin (Primary)US
21
VMRS Code013004000
