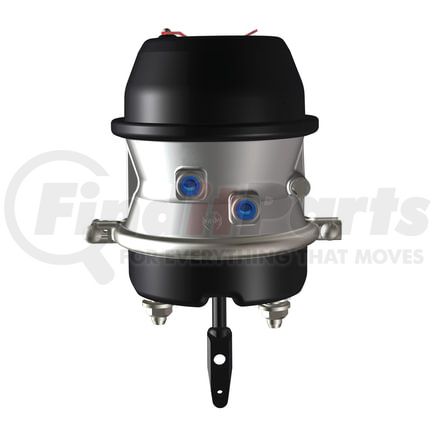

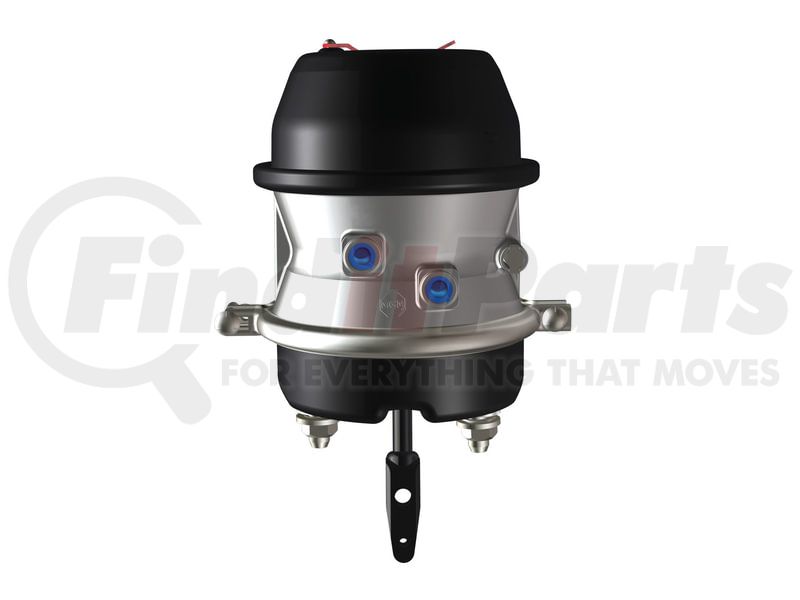

MGM BRAKES 3224951 Part Description
Manufacturer
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Life Power Spring
- Center Hole Diaphragm & Shield
- Epoxy-Coated Head, NPC/Lower Push-Rod, Return Spring
- HD NPC
- Polymer Guide
- HD Reinforced Diaphragm (or Neoprene)
- Stroke Alert
- Molded Rubber Seal
- Composite Guide
Specifications
Aftermarket Unit
Port Size: 3/8-18 NPTF
Welded Yoke
Stroke (in.): 3.00
Service Size: 24
Spring Size: 30
Features & Benefits
- Tamper Resistant Design
- Long Life Power Spring
- Center Hole Diaphragm
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- Center Hole Shield
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge on All Other Sizes)
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Stroke Alert
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- Molded Nitrile Rubber Air Seal
- Composite Guide -Corrosion Fighter Technology
Model: TR2430LP3
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 19.3 lb (8.8 kg) |
| Weight lb (kg) Single | 11.5 lb (5.2 kg) |
| A | 10.19" (258.8 mm) |
| B | 7.81" (198.4 mm) |
| C | 7.38" (187.5 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| Inlets | 3/8" - 18 NPTF |
| Y | 2.25" |
Replacement Parts
| 1 | Kit -NP Chamber (a) | 9015903 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216025 |
| 4 | Diaphragm | 8017424 |
| 5 | Kit -Push-Rod Assembly (a) SAE w/ Welded Yoke | 9075002 |
| 6 | Return Spring | 8068012 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 8215250 |
| 9 | Kit -Nuts &Washers SAE | 9002001 |
| 10 | Hex Nut -Yoke SAE | N/A |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Realease Bolt | 9007003 |
| 13 | Kit -Piggyback Plus SAE | 3224008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
MGM BRAKES 3224951 Specifications
Product Attributes
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.550 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 24 |
| Stroke | 3.00 IN |
| Welded Yoke | Welded Yoke |
| UNIT | Aftermarket |
| Diaphragm | Rubber |
| Push Rod Length - with yoke | 2.25 |
| Rod Diameter | 5/8 |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
