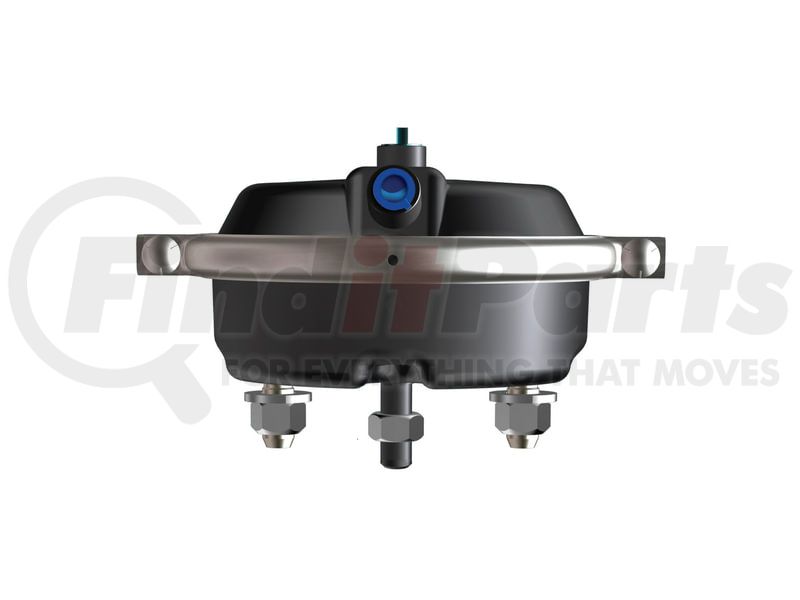

MGM Brakes 1436001 - Air Brake Chamber - 1436 Series, 3" Stroke, Size 36, Model C36
- Part Number
- 1436001
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - 1436 Series, 3" Stroke, Size 36, Model C36
details
$23999
MSRP: $333.16
Save: $93.17
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.660
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
Service Size: 36
Spring Size: N/A
Features & Benefits
- Formed Steel Pressure Cap -Epoxy-Coated
- Formed Steel Non-Pressure Chamber -Epoxy-Coated
- Heavy-Duty Nylon Reinforced Diaphragms
- Top and Side Air Ports- 3/8" NPTF
- Center Hole Shield (Except type 12 and type 16)
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) | 15.88 lb (7.2 kg) |
| A | 5.12" (130.0 mm) |
| B | 4.52" (114.8 mm) |
| C | 9.44" (240.0 mm) |
| D | 4.75" (120.7 mm) |
| E | 5/8" - 11 UNC |
| F | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Replacement Parts
| 1 | Kit -NP Chamber (b) | 9015049 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216036 |
| 4 | Diaphragm | 8017836 |
| 5 | Kit -Push-Rod Assembly (b) SAE | 9064004 |
| 5a | Kit -Push-Rod Assembly (b) METRIC | 9064009 |
| 6 | Return Spring | 8068012 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (b) | 8215036 |
| 9 | Kit -Nuts & Washers SAE | 9002001 |
| 9a | Kit -Nuts & Washers METRIC | 9002002 |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 10a | Hex Nut -Yoke METRIC | 8130016 |
| 11 | Pressure Cap (2-inlet/steel) | 8010009 |
| *NOTE: | (a)Type 12 pressure cap is cast aluminum | |
| *NOTE: | (b)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
Product Description
Service Chamber
Features & Benefits
- Steel pressure cap
- Heavy gauge steel mounting base
- Heavy-duty nylon reinforced diaphragm
- Mounting studs, grade 5, heat treated/plated
- Low-profile design
- S-Cam and disc brake applications
- Available in 1.75, 2.25, 2.50 and 3.00” stroke
- Available in 1.75, 2.25, 2.50 and 3.00" stroke
Product Attributes
| Chamber Type | Service Chamber |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.660 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | N/A |
| Service Size | 36 |
| Stroke | 3.00 IN |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004027 |
