(888) 312-8812 Login SignupNGK SPARK PLUGS CPR7EAIX9 NGK Iridium IX Spark Plug
Tap to view 1 more
$14.03
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS CPR7EAIX9 Part Description
Manufacturer
Product Description

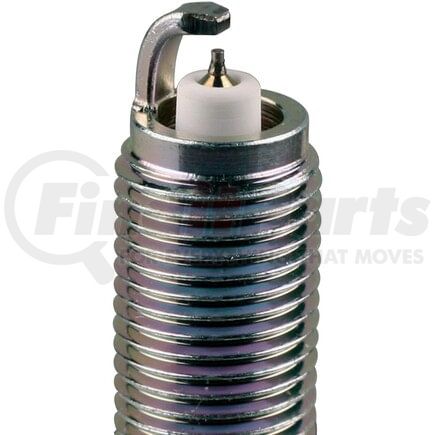

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS CPR7EAIX9 Specifications
Product Attributes
| Stock Number | 9198 |
| Part Number | CPR7EAIX-9 |
| Short Style Spark Plug | No |
| Service Number | CPR7EAIX-9 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.92 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.394 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M10 - 1.0 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.9 MM |
| Insulator Height | 48.8 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295191989 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS CPR7EAIX9 Cross References
| Brand | Part Number |
|---|---|
| N/A | CPR7EAIX-9 |
| NGK | 9198 |
NGK SPARK PLUGS CPR7EAIX9 Fits Vehicles
- Kawasaki KVF750 Brute Force 750 EPS LE Camo (2024)
- Kawasaki KVF750 Brute Force 750 EPS LE (2024)
- Kawasaki KVF750 Brute Force 750 EPS (2024)
- Kawasaki KVF750 Brute Force 750 (2024)
- Kawasaki KRT800 Teryx4 S Special Edition (2023-2024)
- Kawasaki KRT800 Teryx4 S LE (2021-2024)
- Kawasaki KRT800 Teryx4 S Camo (2021, 2024)
- Kawasaki KRF800 Teryx S LE (2021-2024)
- Suzuki GSX250R ABS (2018-2019)
- Suzuki GSX250R (2018-2019)
- Honda C125A Super Cub (2020-2024)
- Honda CA125A Super Cub (2019)
- Yamaha YFM700 Grizzly EPS SE (2018-2020)
- Yamaha YFM700 Grizzly EPS (2018-2020)
- Yamaha YXM700 Viking EPS Ranch Edition (2018-2019)
- Yamaha Viking EPS SE (2015)
- Yamaha Viking (2015)
- Yamaha Viking EPS (2015)
- Yamaha SCR950 (2017)
- Kawasaki KVF750 Brute Force 4x4i EPS Camo (2016-2023)
- Yamaha YXE70 Wolverine R-Spec EPS (2017-2018)
- Yamaha YXE70 Wolverine R-Spec EPS SE (2016-2017)
- Yamaha YXM700 Viking VI EPS Ranch Edition (2016, 2018-2019)
- Yamaha YFM700K Kodiak (2016-2020)
- Yamaha YFM700 Grizzly EPS LE (2016-2018)
- Yamaha YXE70 Wolverine (2016-2018)
- Yamaha YFM700K Kodiak EPS SE (2016-2020)
- Yamaha YFM700K Kodiak EPS (2016-2020)
- Yamaha YXE70 Wolverine R-Spec (2016-2017)
- Yamaha XVS950 Bolt C-Spec (2015-2016)
- Yamaha YXM700 Viking FI 4x4 EPS SE (2015, 2017)
- Kawasaki KRF800 Teryx Camo (2015-2021)
- Kawasaki KRF800 Teryx LE (2015-2021)
- Kawasaki KRF800 Teryx (2015-2024)
- Kawasaki KVF750 Brute Force 4x4i EPS (2015-2023)
- Yamaha YXM700 Viking VI EPS (2015-2019)
- Kawasaki KVF750 Brute Force 4x4i (2015-2021)
- Yamaha YXM700 Viking VI (2015-2016)
- Yamaha YXM700 Viking VI EPS SE (2015-2016)
- Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE (2014-2017)
- Yamaha YXM700 Viking FI 4x4 (2014-2015)
- Yamaha YXR700F Rhino 700 FI Ducks Unlimited (2008-2009)
- Yamaha YXM700 Viking FI 4x4 EPS (2014-2015)
- Kawasaki KRT800 Teryx4 LE (2014-2021)
- Kawasaki KRT800 Teryx4 (2014-2024)
- Kawasaki KRT800 Teryx Camo (2014)
- Kawasaki KRT800 Teryx4 Camo (2014-2021)
- Kawasaki KRT800 Teryx LE (2014-2015)
- Kawasaki KRT800 Teryx (2014)
- Kawasaki KRT750 Teryx4 4x4 EPS Camo (2013)
- Yamaha XVS950 Bolt R-Spec (2014-2019)
- Yamaha XVS950 Bolt (2014-2019)
- Yamaha YXR700F Rhino 700 FI Special Edition (2008-2009, 2013)
- Yamaha YXR700F Rhino 700 FI Sport Edition (2008-2009, 2011-2013)
- Kawasaki KRT750 Teryx4 4x4 EPS LE (2012-2013)
- Kawasaki KRT750 Teryx4 4x4 (2012)
- Kawasaki KRT750 Teryx4 4x4 EPS LE Camo (2012)
- Kawasaki KRT750 Teryx4 4x4 EPS (2012-2013)
- Honda PCX125 (2011)
- Honda PCX150 (2013, 2016)
- Yamaha XVS950CT V Star 950 Tourer (2009-2017)
- Yamaha XVS950 V Star 950 (2009-2015)
- Yamaha YXR700F Rhino 700 FI (2008-2009, 2011-2013)
- Yamaha YFM700 Grizzly FI 4x4 Auto EPS (2007-2008, 2014-2015)
- Yamaha YFM700 Grizzly FI 4x4 Auto (2007-2008, 2014-2016)
- Kawasaki VN900C Vulcan 900 Custom (2007-2024)
- Yamaha CP250 Morphous (2006-2008)
- Kawasaki VN900B Vulcan 900 Classic (2006-2024)
- Kawasaki VN900D Vulcan 900 Classic LT (2006-2024)
