NGK SPARK PLUGS 5545 Part Description
Manufacturer
Product Description

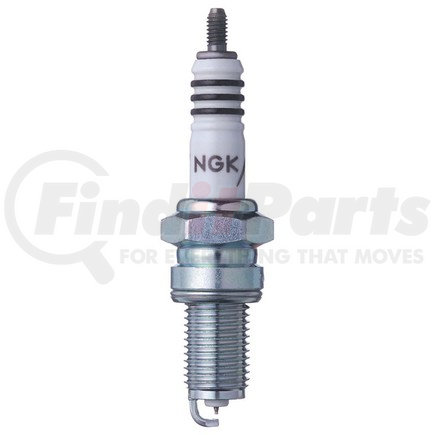

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
SPARK PLUG
NGK SPARK PLUGS 5545 Specifications
Product Attributes
| Part Number | DPR9EIX-9 |
| Stock Number | 5545 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 18 MM |
| Insulator Height | 52.0 MM |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 12.00 MM |
| Short Style Spark Plug | No |
| Service Number | DPR9EIX-9 |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Hex Size | 18mm |
| Insulator Height | 2.05 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M12 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.9 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295155455 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 5545 Cross References
NGK SPARK PLUGS 5545 Fits Vehicles
- Ducati Monster 620 Dark (2005-2006)
- Ducati Monster 620 Matrix (2004)
- Ducati Monster 620 Capirex (2004)
- Ducati Monster 620s (2002)
- Ducati Monster 600 Metallic (2000-2001)
- Ducati Monster 600 Dark City (1999-2000)
- Ducati Monster 600 City (1999)
- Honda VTR1000 Super Hawk (1998-2005)
- Ducati Monster 600 Dark (1998-2001)
- Ducati Monster 600 (1997-2001)
- Kawasaki KLR250 (1996-2005)
- Triumph Trophy 900 (1995-2001)
- Triumph Trophy 1200 (1995-2003)
- Honda CB1000 (1994-1995)
- Suzuki DR250SE (1993-1995)
- Honda CBR1000F (1993-1996)
- Yamaha TDM850 (1992-1993)
- Suzuki DR650S (1990-1993)
- Suzuki DR350S (1990-1993)
- Suzuki DR350 (1990-1993)
- Suzuki DR250 (1990-1993)
- Honda CBR1000F Hurricane (1987-1988, 1990-1991)
- Honda VFR750F Interceptor (1986)
- Honda VFR700F Interceptor (1986-1987)
- Honda VF500F Interceptor (1986)
- Suzuki SP600 (1985)
- Honda VF1000R (1985-1986)
- Kawasaki ZX550 GPZ (1984-1985)
- Lamborghini LM002 (1986-1990)
- Lamborghini Diablo (1991)
- Lamborghini Countach (1985-1989)
